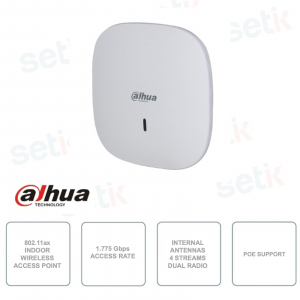

Punto di accesso wireless 802.11ax - PoE - Per interni - 1.775Gbps

Technical Speci?cation

Hardware

Weight (excluding mounting accessories)

0.4 kg (0.88 lb)

Dimensions (excluding mounting and accessories)

185 mm × 185 mm × 43 mm (7.28" × 7.28" × 1.69") (L × W × H)

Ethernet Ports

1× 100/1000M Base-T RJ-45

PoE

Port1: 802.3af

Local Power Supply

54 VDC

Antenna

Built-in omni-directional antenna 3 dBi antenna gain @2.4 GHz 5 dBi antenna gain @5 GHz

Working Frequencies

802.11ax/ac/n/a: 5.725 GHz–5.850 GHz; 5.47 GHz–5.725 GHz; 5.15 GHz–5.35 GHz

802.11ax/b/g/n: 2.4 GHz–2.483 GHz

Modulation Mode

11b: DSS: CCK@5.5/11 Mbps, DQPSK@2 Mbps, DBPSK@1 Mbps 11a/g: OFDM: 64QAM@48/54 Mbps, 16QAM@24 Mbps, QPSK@12/18 Mbps, BPSK@6/9 Mbps 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM

Maximum Transmit Power

20 dBm

Reset/Restoration To Factory Default

Yes

State LED

Alternating flashing mode, orange/green/blue for different working states, breathing mode

Enviorment

Indoor

Working Temperature

–10 °C to 55 °C (14 °F to 131 °F)

Storage Temperature

–40 °C to 70 °C(–40 °F to +158 °F)

Working Humidity

5%–95% (non-condensing)

Storage Humidity

5%–95% (non-condensing)

Protection Class

IP41

EMC

CE EMC, CE RED

MTBF

>250000H

Software speci?cations

Compliance

Compliant with 802.11a/b/g/n/ac/ax

Working Frequencies And MIMO

2.4G 2*2 MIMO 0.575 Gbps 5G 2*2 MIMO 1.2 Gbps

Bandwidth

20 MHz/40 MHz/80 MHz

WLAN Basics

Maximum number of clients per radio: 512 Virtual APs: 32 Open system/shared key authentication Broadcast probe request acknowledge control Concurrent login of WPA, WPA2,WPA3 and Pre-RSNA users RTS/CTS CTS-to-self

802.11k and 802.11v smart roaming

802.11r fast transition roaming Advanced Traffic Management Restrict low rate/sticky terminals access Channel reuse Receiver sensitivity adjustment Automatic channel/power/bandwidth adjustment Hide SSID Hotspot 2.0

Security Policy

WEP-64/128/152bit, dynamic WEP, TKIP, AES, EAP, CCMP , WPA3 Multiple triggering conditions for unicast and broadcast key update Support 802.11i 802.1X authentication, MAC authentication, PSK authentication, Portal authentication, PPSK Layer 2 user isolation SSID-based user isolation Packet filtering MAC address filtering Broadcast storm suppression Wireless EAD SSID and VLAN binding WIDS/WIPS

AAA

RADIUS client Multiple-domain authentication server Backup authentication server

Layer 2 And Layer 3 Features

IP address configuration: Static IP (available only in fat AP mode)/DHCP assigned IP (Option 60) IPV6: Native IPv6/IPv6 Portal/IPv6 SAVI ACL: IPv4/IPv6 Local forwarding based on SSID and VLAN Link Layer Discovery Protocol (LLDP) SSID-based VLAN assignment EoGRE Tunnel Multicast: IGMP Snooping/MLD Snooping

QoS

802.11e: Wi-Fi Multimedia (WMM)

802.1p priority and marking on Ethernet ports Priority mapping for wired and wireless packets SSID/VLAN and QoS policy mapping Layer 2 to Layer 4 packet filtering and traffic classification CAR Client bandwidth management Traffic-based load balancing Session-based load balancing Frequency-based load balancing (supports dual-band) Band navigation (5G priority) Multicast optimization (IPv4/IPv6) Call Admission Control (CAC) Airtime optimization Airtime fairness Layer 4-7 application identification SVP Phone

Management And Maintenance

AP Working Mode: Fit/Fat Network management:Trap, HTTP(S), SSH, Telnet, FTP/ TFTP, SNMP V1/V2/V3 only applicable in Fat mode Management SSID Syslog Remote Probing and analysis
