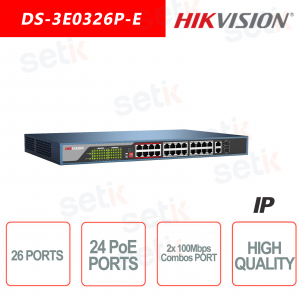

SWITCH DI RETE 26 PORTE - 24 Porte PoE 100Mbps - 2 Porte COMBO 1000Mbps - HIKVISION
Switch ethernet -Hikvision26 Porte Ethernet - 24 Porte PoE 100 Mbps - 2 Porte 1000Mbps Combo - Mac Address 16K - Capacità di commutazione 8.8Gbps
Dettagli prodotto
- Switch di rete - Hikvision
- 26 Porte Ethernet
- 24 Porte PoE 100 Mbps
- 2 Porte 1000 Mbps Combo
- Standard Supportati: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Standard PoE Supportati: IEEE 802.3af, IEEE 802.3at
- Metallo
- Dimensioni: 440 mm × 44 mm × 220.8 mm (17.3” × 1.73” × 8.7”)
Scheda tecnica
| Model | DS-3E0326P-E |
| General | |
| Shell | Metal material |
| Gross weight | 3.54 kg (7.80 lb) |
| Net weight | 2.785 kg (6.14 lb) |
| Dimension (L × H × D) | 440 mm × 44 mm × 220.8 mm (17.3” × 1.73” × 8.69”) |
| Operating temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating humidity | 5% to 95% (no condensation) |
| Storage humidity | 5% to 95% (no condensation) |
| Power supply | 100 to 240 VAC, 50/60 Hz, Max. 6.5 A |
| Power consumption in idle | 30 W |
| Max. Power Consumption | 400 W |
| Installation Mode | Rack (equipped with mounting ears) |
| Surge Protection | 6 KV |
| Network parameters | |
| Port Number | 24 × 10/100 Mbps PoE ports, 2 × Gigabit combos |
| MAC address table | 16 K |
| Switching capacity | 8.8 Gbps |
| Packet forwarding rate | 6.55 Mpps |
| Internal cache | 4 Mbits |
| PoE Power Supply | |
| PoE standard | IEEE 802.3af, IEEE 802.3at |
| PoE power pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE port | Ports 1 to 24 |
| Max. port power | 30 W |
| PoE power budget | 370 W |
| Dialing Function | |
| Long Rage | Ports 17 to 24: up to 300 m; Long range performance may vary depend on camera model or cable condition. |
| Port Isolation | Port 1 to 24: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| PoE Watchdog | Port 1 to 24: auto detect and restart the cameras that do not respond |
| Software Function | |
| VIP Port | Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient. |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU) |
Ulteriori dettagli
Nessun dettaglio aggiuntivo
