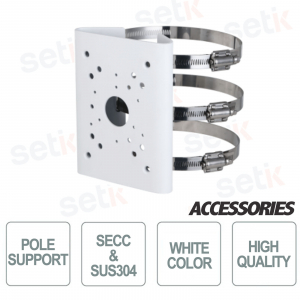

POLE MOUNTING BRACKET - SECC & SUS304 - WHITE COLOR - DAHUA

Made by Dahua
SECC & SUS304 pole mounting bracket. Color: White. Size: 130.4mm × 170.0mm × 45.0mm Pole diameter: Ø80 ~ Ø150mm - PFA5500

Product details

PFA5500
  • Pole Mount Bracket - DAHUA
  • Useful for supporting Dome and Bullet cameras
  • Material : SECC & SUS304
  • Dimensions: 130.4mm × 170.0mm × 45.0mm
  • Pole diameter: Ø80 ~ Ø150 mm
  • Weight: 1.31 kg
  • Installation Type: Pole
  • Code: White

Technical data sheet

Model PFA5500
Structure
Material SECC, SUS304
Packaging Dimensions 237.0 mm × 164.0 mm × 191.0 mm (9.33" × 6.46" × 7.52") (L × W × H)
Product Dimensions 130.4 mm × 170.0 mm × 45.0 mm (5.13" × 6.69" × 1.77") (L × W × H)
Net Weight 1.31 kg (2.89 lb)
Gross Weight 1.57 kg (3.46 lb)
Load Bearing 15.0 kg (33.07 lb)
Installation Plane mount
Pole Diameter 80mm–150mm (3.15"–5.91")
Applicable Camera Please see "Accessory Selection"
Color White
Environment
Operating Temperature -40℃~+60℃ (-40℉~+140℉)
Operating Humidity <90% (RH)
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity 10%–90% (RH)

Further details

PFA5500 dimensioni

Download

Download the English Brochure
Compatibility: English
