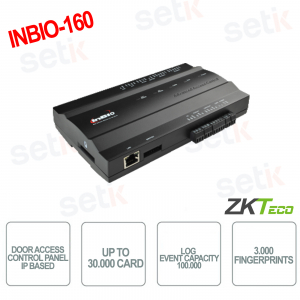

ZKTECO - Biometric access control panel for doors based on IP Technology - inBio-160

ZKTECO - Biometric access control panel for doors based on IP Technology - inBio-160
SUPER-SALES -70%

inBio-160 Biometric access control panel based on IP - ZK Teco technology - Access panel with biometric, 1 Controller port, 4 supported readers (2 RS-485/2 26-Bit wiegand), 3 inputs (Button Output and Status of the door, 1 Aux), 2 Outputs, Up to 30,000 Cards, 3,000 Footprints, Log events up to 100,000. Dimensions: 350 × 90 × 300mm - CON-INBIO160

Reference: CON-INBIO160

Brand: ZKTECO

EAN: 8057457613415

FIND INSTALLER

€107.43

€358.09 -70%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity


CON-INBIO160 | ZKTECO IP BASED BIOMETRIC ACCESS CONTROL PANEL - CON-INBIO160


Lettore Biometrico ZKTECO rilevamento temperatura corporea, mascherina, palmo della mano, viso


ZKTECO Controllo Accessi

INBIO160 : BIOMETRIC ACCESS CONTROL PANEL BASED ON IP

InBio Pro Series is a project-oriented, high-end product line with unique features such as, built-in fingerprint verification and advanced access control functions, which can be managed via TCP / IP communication across LANs or WANs.


Truly internal biometric identification: InBio Pro performs fingerprint matching on the panels. FR series readers transmit fingerprints to the InBio Pro via RS485 for fast and accurate matching with templates stored in the database. Wiegand Wiegand inputs are also provided for traditional RFID readers.


Communication: InBio Pro controllers can be easily installed on your network and support HTTP / HTTPS communication. The web server allows setting and modification of network parameters directly and easily.

Capacity: Supports up to 20,000 ngerprint templates, 60,000 user badge users, and stores up to 100,000 events and transactions. The data is retained in the event of a power failure. The controller continues to function if the network connection is interrupted.


The lowest total cost of ownership: Save costs. Controller rmwares can be updated without any advanced tools. The new features can extend and expand the value of your investment.

More than door control : Access to additional control and interface. After programming, the auxiliary relays can function as lights, alarms and intrusion panels. Extra locking devices or gate controllers may be accessible.

Options: Support up to 30,000 badge users and store up to 100,000 events and operations. Data is retained in the event of a power failure. The control unit continues to operate even if the network connection is lost

Options: InBio Pro controllers are available in 3 sizes to meet your needs and reduce the cost of spare capacity. 1-door, 2-door and 4-door models can be mixed and matched in an optimized system architecture.


Advanced Access Control Built -in Anti-Passback, First Card Opening, Multiple Card Opening, Constraint Password Entry and Auxiliary Entry / Exit are built into the controller hardware.

Controllo accessi ZKTECO
inBio-160
  • CON-INBIO160 - IP based access control panel | ZK Teco
  • InBio is a new concept of access control unit based on biometric identification, which aims to increase the security of data and users' lives.
  • IP-based door access control panel
  • Real-time communication
  • Possibility to manage up to 4 doors
  • Encrypted communication protocol
  • Integrated fingerprint comparison
  • Ideal for meeting the needs of access to protected areas
  • Dimensions: 350 × 90 × 300mm
Model CON-INBIO160
Capacity
Number of controller doors 1 Door
Number of readers supported 4 (2 RS-485 reader, 2 26-bit wiegand reader)
Types of readers supported 26-bit Wiegand and RS485 FR Series Reader
Number of entrances 3 (exit button and door status, 1 AUX)
Number of outputs 2 (1 Form C relay for the lock and one Form C relay for the Aux output)
Capacity of card holders 30,000
Fingerprint capability 3,000
Event log capacity 100,000
Communication TCP / IP and RS-485
Product size 350 (L) × 90 (H) × 300 (W) mm
Package weight 3.6kg
CPU 32 bit 400MHz CPU
RAM 32MMB
Flash memory 128MB
Power 9.6V-14.4V DC
Operating temperature 0-45 ° C
Operating humidity 20% to 80%
