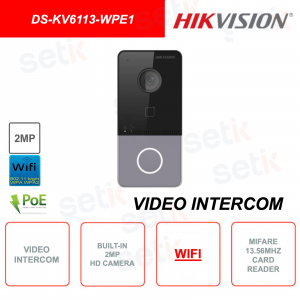

DS-KV6113-WPE1 | HIKVISION EXTERNAL STATION - WIFI - AUDIO - ALARM - 2 MEGAPIXELS - MIFARE CARD READER
It is ideal for wall mounting.
Quality product, Hikvision.
CAMERA INTEGRATED IN THE DEVICE: with 2 megapixel resolution, equipped with infrared illuminator |
WIFI: Wi -Fi signal strength: 802.11b: 16dBm +/- 1.5dBm 802.11g: 15dBm +/- 1.5dBm 802.11n (ht20): 14dBm +/- 1.5dBm 802.11n (ht40): 12dBm +/- 1.5dBm |
AUDIO: It integrates a microphone and a speaker. |
ACCESS CARD READER: It integrates a Mifare access card reader |
ETHERNET CONNECTION: Connection via Network interface port. |
ALARM IN / OUT: 4 Alarm inputs and anti-tampering system |
REMOTE CONTROL: remote opening with monitor or app |
PROTECTION: IP65 , protection from dust and water jets + 1 anti-tampering tampering alarm |
POWER SUPPLY: Power supply 12 VDC, 2-wire two-wire |
Data sheet
| DS-KV6113-WPE1 | |
System parameters | |
Operation system | Embedded Linux operation system |
Flash | 16M, 32M |
RAM | 256 M |
CPU | Embedded MCU Processor |
Video parameters | |
Standard video compression | H.264 |
Supplement light | IR supplement |
Lens | 1 |
FOV | Horizontal: 129 ° Vertical: 75 ° |
WDR | True WDR |
Resolution | Main stream: 1920 × 1080p, 720p Sub stream: 704 × 576 |
Simultaneous live view | Up to 3 channels |
Audio parameters | |
Standard audio compression | G.711 U |
Audio input | Built-in omnidirectional microphone |
Audio output | Built-in loudspeaker |
Audio compression bitrate | 64 Kbps |
Audio quality | Noise suppression and echo cancellation |
Volume adjustment | Adjustable |
Capacity | |
User capacity | 2000 |
Linked station indoor | 1 |
| Network parameters | |
| Communication protocol | TCP / IP, RTSP |
| Wired network | 10/100 Mbps self-adaptive Ethernet |
| Wifi | Support |
| Received frequency | 2.4 to 2.4835GHz |
| Transmitted frequency | 2.4 to 2.4835 GHz |
| Bandwidth | 20 to 40 MHz |
| Frequency power | 802.11b: 16dBm +/- 1.5dBm |
| Device interfaces | |
| Alarm input | 4 |
| Network interface | 1 |
| TAMPER | 1 |
| RS-485 | 1 |
| Exit button | 1 |
| USB | 0 |
| Wiegand | 0 |
| TF card | 0 |
| Alarm output | 0 |
| Lock control | 1 |
| Door contact input | 1 |
| Power interface | 1 |
| General | |
| Button | 1 |
| Indicator | 2 |
| Installation | Surface mounting |
Working temperature | -40 ° C to + 55 ° |
| Working humidity | 10% to 95% |
| Indicator | 2 |
| Weight | 265g |
| Protective level | IP65 |
Power supply method | IEEE802.3af, 12 VDC PoE standard |
| Dimensions | 138 mm × 65 mm × 27 mm |
| Application environment | Outdoor |
| Power consumption | ? 10 W |
