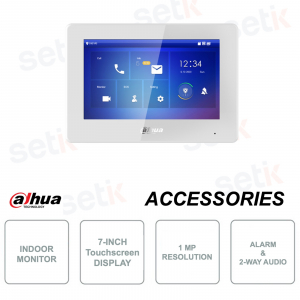

IP POE ONVIF® MONITOR - 7 INCH - 1MP TOUCHSCREEN - 2 WIRES OR RJ45 - IP POE ONVIF® - BIDIRECTIONAL AUDIO - ALARM - DAHUA - VTH5422HB (W)

DESCRIPTION:
Dahua's VTH5422HB (W) Android station is one of the best indoor monitors on the market.
Equipped with 7 " 1024x600 TFT Capacitive Touch Screen Display, Two-Way Audio, 6 Alarm Inputs / 1 Alarm Output and SD Card Slot up to 64GB (sold separately).
Wall mount / bracket included)

Quality product. PoE protocol - Supports ONVIF® - RJ45 IP connection supported . Dahua Security brand. White color.

Product Details:

  • IP PoE indoor station ONVIF® - Dahua - V TH5422HB (W)
  • Linux OS
  • Embedded Processor
  • 2-wire or RJ45 interface
  • 7 "TFT capacitive touch screen display, 1024x600 1MP
  • Video compression H.264 and H.265
  • Alarm integration, with 6 inputs and 1 output
  • Two-way audio
  • Integrated loudspeaker
  • IP support
  • Echo suppression
  • Doorbell
  • Supports DaisyChain Topology
  • 1 RS485 interface
  • SD Card Slot (Max 64GB, sold separately)
  • Wall mounting, with bracket included
  • Power supply: 2-wire switch (Transmission distance at maximum power 50m)
  • ONVIF® compatible
  • PoE protocol
  • Service temperature: -10 ° C to + 55 ° C
  • Dimensions: 189.0mm × 130.0mm × 26.9mm
  • Item net weight: 388g
  • High quality product
  • Material: Polycarbonate + ABS
  • White color
  • 24 months warranty

Data sheet

VTH5422HB (W)

System Specifications

Main Processor

Embedded processor

Operating System

Embedded Linux operating system

Interoperability

ONVIF®

Network Protocol

SIP; IPv4; RTSP; RTP; TCP; UDP

Basic

Screen Type

Capacitive touch screen

Display

7 "TFT

Screen Resolution

1024 × 600

Audio Compression

G.711a; G.711Mu; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression

Audio Bit Rate

16 KHz, 16Bit

Function

Communication Mode

Full digital 2-wire

Information Release

Receive and view text information released by the management center (After SD card is installed, picture information can be received and viewed.)

Leave Videos

Yes (insert an SD card into the indoor monitor)

DND Mode

DND period and DND mode can be set.

Number of Extension

Villa: 3; apartment: 3

Storage

Micro SD card (up to 64 GB)

Performance

Casing

PC + ABS

Port

RS-485

1

Alarm Input

6

Alarm Output

1

Power Output

1 (12V / 100mA)

Door Bell

Yes (use any alarm input port)

Network

One two-wire port and one 10Mbps / 100Mbps Ethernet port (one of them can be selected)

General

Color

White

Power Supply

Two-wire switch (max power transmission distance:

100 m); PoE standard

Power Adapter

Not included

Installation

Surface mount

Certifications

THERE IS; FCC; UL

Accessory

Bracket and alarm ribbon cable (included)

Dimensions

189.0 mm × 130.0 mm × 26.9 mm

Operating Temperature

-10 ° C to + 55 ° C (+ 14 ° F to 131 ° F)

Operating Humidity

20% to 93% (non-condensing)

Operating Altitude

Beneath 3000 m (9842.52 ft)

Power Consumption

Standby ≤ 2W; working ≤ 6W

Net Weight

388 g (0.86 lb)

Gross Weight

741 g (1.63 lb)

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
