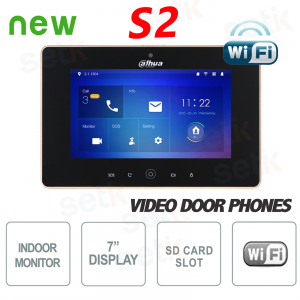

7 "Touch Display WiFi Indoor Station + MicroSD Slot and Snapshot S2 Version - Black - D

-56%

Dahua WiFi Wireless IEEE802.11b / g / n intercom internal station with 7 "capacitive Touch Screen display (1024x600), alarm integration, MicroSD slot (Max 32GB), Recording & Snapshot in the presence of MicroSD. 6 Inputs + 1 Alarm Output , RS485, Microphone and Speakers. 12V DC power supply, PoE （802.3af). Black Color. VTH5221D S2

Reference: VTH5221D-S2

Brand: Dahua

EAN: 6939554965869

FIND INSTALLER

https://www.setik.biz/en/wifi-video-door-phones/4598-dahua-vth5221d-s2-7-touch-display-wifi-indoor-station-microsd-slot-and-snapshot-s2-version-black-d.html

€263.03

€597.80 -56%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

Description Product Details Data Sheet Further Details Download

INTERNAL WIRELESS STATION WITH 7 "TOUCH DISPLAY - MICROSD SLOT AND SNAPSHOT - S2 VERSION - DAHUA

DESCRIPTION:
Dahua's VTH5221D S2 station is one of the best wireless indoor stations on the market.
Equipped with a 7 " 1024x600 Capacitive Touch Screen LCD Display, 6 Alarm Inputs and SD Card Slot.

In call or surveillance mode it is able to take screenshots.

Quality product. PoE protocol . Dahua Security brand. Black colour.

Product details:

Indoor station - Dahua
S2 version
IEEE802.11b / g / n WiFi Wireless Connection
Intercommunicating with other compatible internal stations
7 "TFT capacitive touch screen display, 1024x600
H.264 video compression
Alarm integration
Support IP cameras
Address book functions
Recording and call history
Pop up on alarm
6 inputs + 1 alarm output
1 RS485
1 10M / 100Mbps self-adaptive LAN port
During call or video surveillance mode, the station is able to take screenshots
SD Card Slot (Max 32GB)
Mounting to apply on the wall
12V DC power supply
PoE protocol
Maximum consumption ≤7W
Service temperature ﹣10 ° C ~ + 55 ° C
Dimensions: 215.0mm × 140.0mm × 21.0mm
Quality product.
Black colour
24 month guarantee

Data sheet

Model		VTH5221D-S2
System	Main Processor	Embedded Micro Processor
System	Operation System	Embedded LINUX OS
Video	compression	H.264
Audio	Audio Compression	G.711
	Audio Input	All-direction Microphone
	Audio Output	Built-in Loudspeaker
	Bidirectional Talk	Support Dual-way Bidirectional talk
Display	LCD Screen	7 "1024x600, Capacitive
Operating modes	input	Touch buttons and capacitive screen
Interface	Wired Zone	6 on-board zones
	Wireless Zones	8 Wireless Zones
	Alarm Out	1
	RS485	1
Network	Wifi	IEEE802.11b / g / n
	Ethernet	10M / 100Mbps Self-adaptive
	Network Protocol	TCP / IP
General	Memory Slot	Micro SD, Max 32GB
	Installation	Surface
	Power	DC 12V, PoE （ 802.3af)
	Power Consumption	Work ≤7W
	Working Temperature	-10 ° C ~ + 55 ° C
	Relative Humidity	10% ~ 90% RH
	Dimensions	215.0mm × 140.0mm × 21.0mm
	Weight	0.8Kg

Further details

	7 "LCD display 1024x600 resolution capacitive touch screen
	Intercom station . This means that it can communicate freely with other internal monitors
	SOS button to send an emergency call directly to the management center
	Button to answer the call. During a call, press to hang up
	1x SD Card Slot (Max 32GB)
	In surveillance or call mode, screenshots can be taken (MicroSD presence required)
	Directory function
	Recording and call history
	In the event of a call, the video door entry unit sends a notification to the internal monitor or to a mobile / voip phone thanks to Dahua's DMSS application.
	LIVE connection with Dahua IP cameras
	6 Alarm Inputs + 1 Alarm Output
	Multi-directional microphone and integrated speakers
	Present 1x RS485
	Connection via self-adaptive RJ-45 (10M / 100Mbps) Ethernet LAN port
	DC 12V power supply, PoE （802.3af)
	This product is covered by a 24 month warranty.
