Wireless WiFi outdoor station IEEE802.11b/802.11g/802.11n with integrated camera having 1/2.8" 2Mp CMOS sensor and IC card reader . 1 alarm input ~ 1 output, two-way audio , built-in speaker, 1 audio input . 1 microSd-Card slot, 1 mechanical button, power supply 12 Vdc 1 A/PoE <7W. Dimensions 150 mm × 100 mm ×24.8 mm
FIND INSTALLER
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!

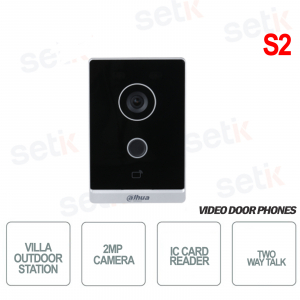

WIRELESS OUTDOOR STATION WITH 2MP CAMERA - WIFI - IC AND MICROSD CARD READER - S2 - DAHUA
DESCRIPTION:

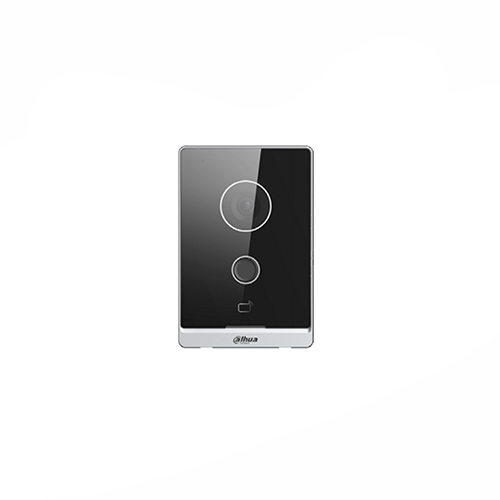

The outdoor station VTO2211G-WP-S2 by Dahua, is one of the best stations on the market
Ideal for installations in villas, it is equipped with a camera with 1/2.8" 2Mp CMOS sensor, IC card reader and MicroSD slot .
IP65 protection
Complete and quality product, Dahua brand.
Product Details:
|
Data sheet
| Model | VTO2211G-WP-S2 |
| System | |
| Main Processor | Embedded processors |
| Operating System | Embedded Linux operating system |
| Button Type | Mechanical |
| Number of Buttons | 1 |
| Interoperability | ONVIF; CGI |
| Network Protocol | SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; SIP |
| Basic | |
| Room | 1/2.8'' 2MP CMOS high definition, low illumination/ WDR/color/IR |
| Field of View | Horizontal: 125°; vertical: 72°; diagonal: 142° |
| WDR | 120dB |
| Noise Reduction | 3D noise reduction |
| Video Compression | H.264; H.265 |
| Video Resolution | Main stream: 720p, WVGA, D1, CIF Sub stream: 1080p, WVGA, D1, QVGA, CIF |
| Video Frame Rate | PAL:25 fps NTSC:30fps |
| Video Bit Rate | 256K–8Mbps |
| Light Compensation | Auto IR |
| Day/Night | Auto(ICR)/Color/B/W;Color/B/W |
| Audio Compression | G.711Mu; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression and cancellation/digital noise reduction |
| Audio Bit Rate | 16KHz, 16Bit |
| Function | |
| Communication Mode | Full digital |
| Unlock Mode | Cards; apps; indoor monitors |
| Card Type | IC card |
| Auto Snapshot | Auto snapshot can only be enabled on indoor monitors |
| Leave Videos | Yes (Insert an SD card into the indoor monitor or door station) |
| Wifi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2.4GHz |
| Storage | Supports Micro SD card (up to 256 GB) |
| Web Configuration | Yes |
| Performance | |
| Card Reading Distance | 0cm–4.3cm (0"–1.69") |
| Issue Card Locally | Yes |
| Casing | PC+Acrylic |
| Capacity | |
| Card Capacity | 10,000 |
| Port | |
| RS-485 | 1 |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Power Output | 1 port, 12 V and 200 mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1, normally closed by default |
| Network | 1 10M/100M network port |
| Alarm | |
| Tampers | Yes |
| General | |
| Color | Black plate & silvery frames |
| Power Supply | 12V DC 1A PoE standards |
| Power Adapter | Optional |
| Installation | Surface mount |
| Certifications | THERE IS |
| Accessories | Included: Alarm power ribbon cable, brackets |

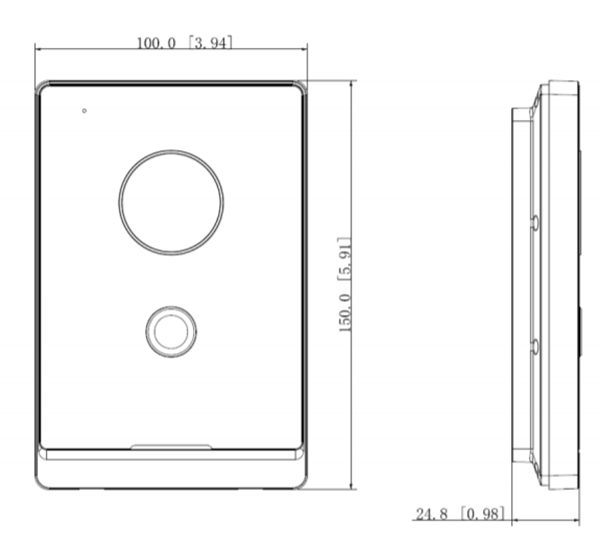

| Dimensions | 150.0 mm × 100.0 mm × 25.4 mm (5.91'' × 3.94'' × 1.00'') |
| Protection Grade | IP65 (Silicone sealant is needed, see the quick start guide.) |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Operating Humidity | 10%RH–90%RH (non-condensing) |
| Operating Environment | Outdoors |
| Operating Altitude | Beneath 3000 m (9842.51 ft) |
| Power Consumption | ≤ 1 W (standby), ≤ 7 W (working) |
| Gross Weight | 510 g (1.12 lb) |
| Anti-corrosion Level | Basic Protection |
Further details
 | Wireless WiFi outdoor station with IEEE802.11b/802.11g/802.11n protocol |
 | Camera integrated into the device. |
 | Present 1x RS485 |
 | Built-in microphone and speaker |
 | 1 relay output for single-family door opener control, 1 alarm inputs |
 | In the event of a call, the video intercom sends a notification to the internal monitor or to a mobile/VoIP telephone thanks to Dahua's DMSS application. |

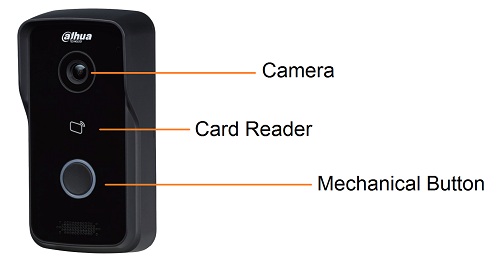

 | 1x Mechanical call button
|
 | Night vision. |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 | Station suitable for outdoor environments thanks to the Waterproof feature |
| DC 12V power supply，PoE(802.3af |
 | Panel made in PC + Acrylic |
 | This product is covered by a 24 month warranty. |
