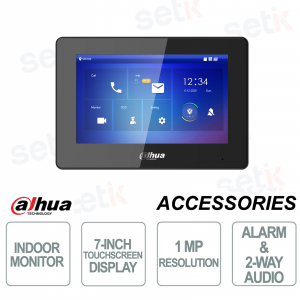

ONVIF® POE IP MONITOR - 7 INCH - 1MP TOUCHSCREEN - 2 WIRE OR RJ45 - ONVIF® POE IP - TWO-WAY AUDIO - ALARM - BLACK - DAHUA - VTH5422HB


DESCRIPTION:
The Dahua VTH5422HB(W) Android station is one of the best indoor monitors on the market.
Equipped with 7" 1024x600 Capacitive Touch Screen TFT Display, two-way audio, 6 Alarm Inputs / 1 Alarm Output and SD Card Slot up to 64GB (sold separately).
Wall mount (bracket included)

Quality product. PoE protocol - Supports ONVIF® - RJ45 IP connection supported . Dahua Security brand. Black colour.

Product Details:

  • IP PoE ONVIF® indoor station - Dahua - V TH5422HB
  • LinuxOS
  • Embedded Processor
  • 2-wire or RJ45 interface
  • 7" TFT capacitive touch screen display, 1024x600 1MP
  • H.264 and H.265 video compression
  • Alarm integration, with 6 inputs and 1 output
  • Two-way audio
  • Integrated speaker
  • IP support
  • Echo suppression
  • Doorbell
  • Supports DaisyChain Topology
  • Interface 1 RS485
  • SD Card Slot (Max 64GB, sold separately)
  • Wall mounting, with bracket included
  • Power supply: 2-wire switch (Transmission distance at maximum power 50 m)
  • ONVIF® compatible
  • PoE protocol
  • Operating temperature: -10°C to +55°C
  • Dimensions: 189.0mm × 130.0mm × 26.9mm
  • Item net weight: 388g
  • High quality product
  • Material: Polycarbonate + ABS
  • Black colour
  • 24 month warranty

Data sheet

VTH5422HB

System Specifications

Main Processor

Embedded processors

Operating System

Embedded Linux operating system

Interoperability

ONVIF®

Network Protocol

SIP; IPv4; RTSP; RTP; TCP; UDP

Basic

Screen Type

Capacitive touch screen

Display

7" TFT

Screen Resolution

1024×600

Audio Compression

G.711a; G.711Mu; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression

Audio Bit Rate

16KHz, 16Bit

Function

Communication Mode

Full digital 2-wire

Information Release

Receive and view text information released by the management center (After SD card is installed, picture information can be received and viewed.)

Leave Videos

Yes (insert an SD card into the indoor monitor)

DND Mode

DND period and DND mode can be set.

Number of Extensions

Villa: 3; apartments: 3

Storage

Micro SD card (up to 64 GB)

Performance

Casing

PC + ABS

Port

RS-485

1

Alarm Input

6

Alarm Output

1

Power Output

1 (12V/100mA)

Door Bell

Yes (use any alarm input port)

Network

One two-wire port and one 10Mbps/100Mbps Ethernet port (one of them can be selected)

General

Color

Black

Power Supply

Two-wire switch (max power transmission distance:

100 m); PoE standards

Power Adapter

Not included

Installation

Surface mount

Certifications

THERE IS; FCC; UL

Accessories

Bracket and alarm ribbon cable (included)

Dimensions

189.0mm × 130.0mm × 26.9mm

Operating Temperature

-10°C to +55°C (+14°F to 131°F)

Operating Humidity

20% to 93% (non-condensing)

Operating Altitude

Beneath 3000 m (9842.52 ft)

Power Consumption

Standby ≤ 2W; working ≤ 6W

Net Weight

388 g (0.86 lb)

Gross Weight

741 g (1.63 lb)
