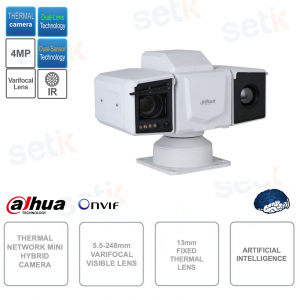

Hybrid IP ONVIF Camera - 13mm Thermal Lens - Visible 5.5-248mm Varifocal - Artificial Intelligence - Audio - Alarm

-57%

Outdoor Hybrid PTZ Network Camera - IP ONVIF - Dahua - TPC-PT8441MA-B13Z45 - Dual-Lens , double fixed lens: thermal ( 13mm) / visible (varifocal 5.5-248mm) - PTZ with encoder - Visible: 1/1.8" CMOS sensor - 4MP resolution - Thermal: Vox sensor - Thermal resolution 400(H) x 300(V) - IR 100m - Artificial intelligence: Perimeter protection, Target Distinction, Cold/Hotspot Tracing - Heat detection - WDR - HLC - Day/Night - CVBS analog output - Audio - Alarm - RJ45 10/100M - RS-485 - IP66 for outdoor - 512GB MicroSD card slot (not included).

Reference: TPC-PT8441MA-B13Z45

Brand: Dahua

EAN: 6939554924446

FIND INSTALLER

https://www.setik.biz/en/video-surveillance/9876-dahua-tpc-pt8441ma-b13z45-hybrid-ip-camera-onvif-thermal-optics-13mm-visible-55-248mm-varifocal-artificial-intelligence-audio-alarm.html

€9,735.00

€22,639.54 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Technical Sheet Further Details Download

ONVIF IP HYBRID NETWORK CAMERA WITH DUAL LENS, ARTIFICIAL INTELLIGENCE - IR 100M - DAHUA - TPC-PT8441MA-B13Z45

Hybrid Network PTZ IP ONVIF Camera – Dahua - TPC-PT8441MA-B13Z45

Dual-Lens (13mm thermal / 5.5-248mm varifocal visible) - Resolution up to 4MP (visible optics) and up to 400 × 300 (thermal optics)
Dual image sensor - Artificial intelligence: Perimeter protection, Target Distinction, Cold/Hotspot Tracing - Heat detection - Audio 1in/1out - Alarm 2in/2out - WDR - HLC - Day/night(ICR) - Optical defog - 512GB MicroSD slot (not included) - RS-485 - RJ45 LAN 10/100M - IP66 outdoor protection.

THERMAL DETECTION

Product details

ONVIF IP Hybrid PTZ Network Camera - Dahua TPC-PT8441MA-B13Z45
Dual-Lens Technology, double optics (Thermal 13mm / Visible 5.5-248mm)
Dual-Sensor Technology , double sensor (Vanadium oxide uncooled focal plane detector - thermal / 1/1.8” 4MP CMOS - visible)
Thermal Camera: Dual Stream
Visible Camera: Dual Stream
Resolution 400 x 300 (Thermal Optical) / Up to 4MP 2688(H) × 1520(V) (Visible Optical)
Spectral Range 8 ?m–14
Thermal sensitivity: <35 mk="" f="" 1="" 0="" li="">
Artificial Intelligence: Perimeter Protection, Target Distinction, Cold/Hotspot Tracing - Heat Detection
CVBS Analog BNC Video Output
WDR, HLC, BLC, IR 100m
1 audio input and 1 audio output
2 alarm inputs and 2 alarm outputs
1 microSD-Card slot up to 512GB (Sold separately)
RS-485
RJ45 LAN Ethernet 10/100M
Power supply NOT included
Dimensions: 231.3mm × 389.7mm × 276.9mm
IP66 outdoor protection
Lightning protection 6kV
Net weight: < 9 kg
Power supply 12 VDC, 2 A and PoE+
Operating temperature: –40 °C to +70 °C
24 month warranty

Technical data sheet

TPC-PT8441MA-B13Z45

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

400 (H) × 300 (V)

PixelPitch

17 μm

Spectral Range

8 μm–14 μm

Sensitivity (NETD)

≤35mK (@f/1.0)

Focal Length

13mm

Field of View

H: 29.31°; V: 22.20°

Thermal Focus Control

Fixed focal

Close Focus Distance

Analog Output

1 × CVBS output; BNC port

Network Port

1 × RJ-45 (10/100 Base-T)

Alarm Input

AlarmOutput

Audio Input

Audio Output

RS-485

Power

Power Supply

Wide input voltage 10–36 VDC

Power Consumption

Basic: 30 W (illuminator off, heater off)

Max: 43 W (illuminator on, heater off);

50 W (illuminator on, heater on)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +80 °C (–40 °F to +176 °F)

Physical Characteristics

Protection

IP66

Reliability

Surge protection: 6kV

Air discharge: 15kV

Contact discharge: 8kV

Structure

Product Dimensions

231.3 mm × 389.7 mm × 276.9 mm (9.11" × 15.34" × 10.9") (L × W × H)

Packaging Dimensions

485 mm × 360 mm × 390 mm (19.09" × 14.17" × 15.35") (L × W × H)

Net Weight

≤9kg (19.84lb)

Gross Weight

≤12kg (26.46lb)

Heat Detection Distance

Max. Distance

900 m (2,952.76 ft)

Notes:

The table displays the measured distances obtained from using the target size 2 m × 2 m for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%.

The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more.

Perimeter Protection Distance

Distance (Human)

Distance (Vehicle)

91 m (298.56 ft)

273 m (895.67 ft)

Notes:

The table displays the optimal distance obtained from using the target sizes 1.8 m × 0.5 m (human) and 4 m × 1.4 m (vehicle) for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%.

The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more.

Further details

Thermal Camera... what is it? and how to choose it?

Read our article!

Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera that is an end in itself and can never be used together with recording systems

This camera is a THERMAL CAMERA .

Sensitivity <35mk

Visual spectrum from 8 to 14µm

Dual-Lens Technology!
This camera is equipped with 2 lenses , a 13mm thermal one and a 5.5-248mm visible one, varifocal

- People detection up to 382m

- Detection of mobile vehicles up to 1176m

This camera features PAN (HORIZONTAL) and TILT (VERTICAL) rotation

PTZ (detailed)
Pan/Tilt Range	Pan: 0° to 360° endless Tilt: –90° to +90°
Manual Speed Control	Pan: 0.1°/s –100°/s Tilt: 0.1°/s –80°/s
Preset Speed	Pan: 0.1°/s –100°/s Tilt: 0.1°/s –80°/s
Presets	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Power off Memory	Yes
Privacy Masking	4 blocks
Idle Motion	Presets; tours; scan; pattern; Pan

Dual-Sensor Technology!
This camera is equipped with 2 image sensors , Vanadium oxide uncooled focal plane detector for thermal optics and 1/1.8" 4MP CMOS for visible optics (effective pixels: 2688 x 1520)

Infrared illuminator with approximate maximum range of 100m!

This camera features 1 BNC Video Output

This DVR features alarm inputs and outputs

2 alarm inputs and 2 alarm outputs!

This camera has 1 input + 1 Audio Output

Protezione IP66 contro polvere e getti d'acqua

IP66: Guarantees protection from dust and water jets (rain)

Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Day/Night Function Example

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

This camera has ROI function.

Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
Ultra Smart Funzione ROI
