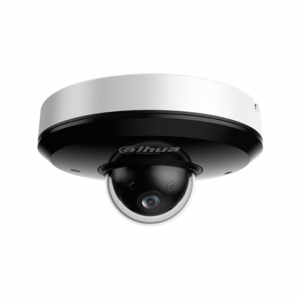

DAHUA-IP DOME-2MP-VARIFOCAL-PTZ-STARLIGHT CAMERA

DAHUA-IP DOME-2MP-VARIFOCAL-PTZ-STARLIGHT CAMERA
-57%

DAHUA outdoor IP camera SD1A204DB-GNY SD1 Series ONVIF PoE PTZ 2MP , 2.8mm-12mm lens with 4X optical zoom and 1/2.8" CMOS sensor with Starlight technology . Video compression up to H.265+, Triple Stream. WDR 120dB , Day/Night(ICR), Defog , ROI , Motion Detection, IR LED 20MT , Integrated microphone and Video Analysis and Face Detection . Micro SD slot.

65.4 mm × Φ128.0 mm (2.57" × 5.04")



Reference: SD1A204DB-GNY

Brand: Dahua

EAN: 6923172590381

FIND INSTALLER

€282.76

€657.58 -57%
taxes included
Tax included
 Available in 5 days
 starting

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


CAMERA - DAHUA-SD1A204DB-GNY OUTDOOR IP PTZ - 4X ZOOM - STARLIGHT - AUDIO - POE

Made by Setik
Dahua outdoor ONVIF® PTZ IP camera
2 Megapixel Resolution - 2.8-12mm Optics with 4X Optical Zoom - Starlight Technology
20MT IR Illuminator - Video Analysis - WDR 120dB - Integrated Audio and Microphone
Slot for MicroSD (up to 512 GB) - PoE protocol - 24 month warranty

Product details



  • Dahua ONVIF® PoE outdoor IP camera
  • 2 Megapixel resolution
  • 1/2.8" CMOS sensor  with Starlight Technology (color night vision)
  • Video compression up to H.265+
  • Triple Stream
  • ONVIF® compatible
  • Varifocal lens 2.8-12mm (4x Optical Zoom + 16x digital zoom)
  • Video Analysis: (Line crossing, Intrusion, Abandoned/lost objects, Face detection)
  • WDR 120dB , Day/Night(ICR), Defog, ROI, Motion Detection
  • 20MT IR LED illuminator
  • Audio Input/Output
  • Built-in microphone
  • Micro SD memory (Max 512Gb)
  • Protection IP66 (Rain/Dust) and IK08 (Vandalism)
  • 12V DC power supply not included
  • Dimension: 65.4 mm × Φ128.0 mm (2.57" × 5.04")
  • 24 month warranty

Data sheet

Room

Image Sensor

1/2.8" CMOS

Pixels

2 MP

Max.Resolution

1920 (H) × 1080 (V)

ROM

256MB

RAM

512MB

Electronic Shutter Speed

1 s–1/30,000 s

Scanning System

Progressives

Min. Illumination

0.005 lux@F1.8 (Color, 30 IRE);
0.0005 lux@F1.8 (B/W, 30 IRE);
0 lux (illuminator on)

Illumination Distance

20 m (65.62 ft) (IR)

Illuminator On/Off Control

Manual; SmartIR; Off

Illuminator Number

3 (IR light)

Lens

Focal Length

2.8mm–12mm

Max. Openings

F1.8–F2.7

Field of View

H: 101.6°–51.9°; V: 53.1°–29.1°; D: 121.8°–59.7°

Optical Zoom

4x

Focus Control

Car; semi-auto; manual

Close Focus Distance

0.2 m–0.5 m (0.66 ft–1.64 ft)

Iris Control

Fixed iris

DORI Distance

Detect

Observe

Recognize

Identify

165.5 m (542.98 ft)

65.4 m

(214.57 ft)

33.1 m

(108.60 ft)

16.6 m

(54.46 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 355°;
Tilt: 5° to 90°

Manual Control Speed

Pan: 0.1°/s–70°/s;
Tilt: 0.1°/s–30°/s

Preset Speed

Pan: 0.1°/s–80°/s;
Tilt: 0.1°/s–40°/s

Presets

300

Tours

8 (up to 32 presets per tour)

Power-off Memory

Yes

Idle Motion

Presets; Tours

PTZ Protocol

DH-SD

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification

Face Detection

Supports face detection, snapshot, and face enhancement; Supports face cutout: Face, one-inch photo; Capturing strategies include real-time capturing and quality first.

People Counting

Supports people counting, calculating the number of people in the area, and queue management. Only people counting supports the report function

SMD

Yes

Video

Video Compression

H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+

Streaming Capability

3 streams

Resolution

1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 1080p/1.3M/720p@(1-25/30 fps)
Sub stream 1: D1/VGA/CIF@(1-25/30 fps)
Sub stream 2: 1080p/1.3M/720p@(1-25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 96Kbps–14.848Kbps
H265: 38Kbps–8.960Kbps

Day/Night

ICR: Color; B/W; Car;
Electronic: Color; B/W; Car

BLC

Yes

WDR

120dB

HLC

Yes

White Balance

Car; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Car; manual; gain first

Noise Reduction

2DNR; 3D NO

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Electronic Image Stabilization (EIS)

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

S/N Ratio

≥55dB

Audio

Audio Compression

PCM; G.711A; G.711MU; G.726; MPEG2-Layer2; G.722.1

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI; SDK

User/Host

20 (total bandwidth: 64M)

Storage

Micro SD card (512GB); FTP/SFTP; NAS

Browsers

IE 9 and later versions;
Chrome 41 and later versions;
Firefox 50 and later versions;
Safari 10 and later versions

Management Software

DMSS; DSS Pro

Mobile Client

iOS; Android

Certification

Certifications

CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN
50130-4; EN 55035
CE-LVD: EN 62368-1
FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4

Port

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT, bare wire)

Alarm Linkage

Capture; recording; send email; presets; tours

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Audio I/O

1/1

Power

Power Supply

12VDC, 2A ± 10%;
PoE (802.3af)

Power Consumption

Basic: 4W;
Max: 13W (illuminator on)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Protection

TVS 6000V lightning proof; IP66; IK08; surge protection; voltage transient protection

Structure

Product Dimensions

65.4 mm × Φ128.0 mm (2.57" × 5.04")

Net Weight

0.5kg (1.10lb)

Gross Weight

0.7 kg (1.54 lb)

Further details

ONVIF®

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems.

This camera complies with the Onvif standard

PoE power supply The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation

H265+ Video Compressione

This camera provides video compression in H.264 format and up to H.265+ , the new standard for video compression!
Infrared illuminator This camera is a PTZ , therefore it has Pan (Horizontal), Tilt (Vertical) and Zoom movement

Pan/Tilt Range

Pan: 0° to 355°;
Tilt: 5° to 90°

Manual Control Speed

Pan: 0.1°/s–70°/s;
Tilt: 0.1°/s–30°/s

Preset Speed

Pan: 0.1°/s–80°/s;
Tilt: 0.1°/s–40°/s

Presets

300

Tours

8 (up to 32 presets per tour)

Power-off Memory

Yes

Idle Motion

Presets; Tours

PTZ Protocol

DH-SD

Risoluzione Full-HD 1920x1080

This camera features a resolution of 2Megapixel 1080P FULL-HD

Ottica varifocale 2.7-13.5mm

This camera features 2.8mm-12mm varifocal optics with 4x Optical Zoom + 16x Digital Zoom

1/2.8" sensor with STARLIGHT technology.

Low brightness, visibility at 0.0001Lux, color vision even in night mode

Logo Starvis

With the addition of the STARLIGHT feature we have significant advantages:

- Backlit structure with 2.9 µm-square unit pixels

- High sensitivity (two or more times greater than other products on the market)

- Increased sensitivity near an area covered by infrared light

- Supports WDR (multiple exposure WDR, DOL-WDR)

- Versatile interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2)

With the sensor it is possible to have color shots even in night mode.

Normally, when you enter night mode, color vision becomes black/white.

With the SENSOR present, night shots will be in color

Main stream: 1080p/1.3M/720p@(1-25/30 fps)
Sub stream 1: D1/VGA/CIF@(1-25/30 fps)
Sub stream 2: 1080p/1.3M/720p@(1-25/30 fps)

This camera provides VIDEO ANALYSIS:
- Line crossing recognition
- Intrusion recognition
- Recognition of lost and abandoned objects

Attraversamento linea - Video Analisi

This camera features ADVANCED INTELLIGENT FUNCTIONS:

- Face Detection

Video Analisi - Rilevamento Volto

Full HD

Remote visibility on mobile using the Dahua DMSS application.

IR LED illuminator with maximum range up to 20m (approximately)

Illuminatore Smart IR SD1A203T-GN

Audio in / outMicrofono integrato

This camera features Microphone/Audio Input , Audio Output
Funzione Motion Detection This camera features the Motion function by connecting it to a recording device having alarm inputs.
Funzione ROI This camera is equipped with ROI function.

The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.
Ultra Smart Funzione ROI
Icon Function DEFOG Latest function present ONLY in Sony Effio-V, allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image
Icon Day/Night function Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.
Example Day/Night function
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.
The higher the db value, the greater the camera's ability to manage the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.
Immagine esempio funzione WDR 120db
Messa a fuoco automatica

This camera has automatic or manual focus

Slot per supporto micro sd This camera allows you to record what happens on Micro SD (Max 512Gb).
IP66_Waterproof Level of protection from heavy rain and dust in IP parameters.
12VDC_Supply

12V DC power supply NOT included!

Dual Encoding This product is covered by a 24 month warranty.

Downloads

Download the English brochure
