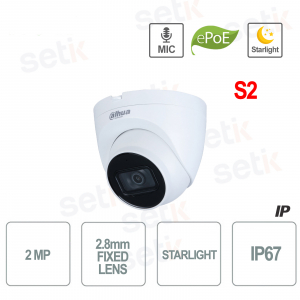

IPC-HDW2230T-AS-S2 IP Dome Camera - Dahua Resolution 1080P 2MP (Max 25fps) - Optical 2.8mm , H.265 Technology Starlight ! , WDR, IR Illuminator 30mt IP67, Built-in Microphone Slot for MicroSD 256GB (Not Included) - Power supply 12V DC (not included) / PoE - 24 months warranty
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
IP 1080P DOME CAMERA - STARLIGHT AND H.265 - MICROSD SLOT - POE - BUILT-IN MICROPHONE - DAHUA
IP Dome Camera - DahuaResolution 1080P 2MP (Max 25fps) - 2.8mm lens - H.265
Starlight technology! - WDR - 30mt IR Illuminator - IP67 -, Built-in Microphone
Slot for MicroSD 256GB (Not Included) - 12V DC power supply (not included) / PoE - 24 month warranty
Product details
- IP Dome Camera - Dahua
- Resolution: 1080P 2MP (Max 25 / 30fps)
- Sony STARVIS 1 / 2.7 ”progressive CMOS image sensor with Starlight technology!
- Starlight technology: Color vision even in night mode
- Fixed lens 2.8mm
- Built-in Microphone
- Video compression H.265 / H.264
- Functions: WDR (120dB) , Day / Night (ICR), 3DNR, AWB, AGC, BLC
- ONVIF® standard
- IR LED illuminator with a maximum range of 30 meters.
- Remote visibility. Support DMSS Application (Best CCTV Software for Mobile) .
- IP67 protection (Dust / Immersion)
- Suitable for indoor / outdoor environments
- 12V DC power supply (not included)
- PoE protocol
- MicroSD slot
- Dimensions: Ø109.9 x 100.9 mm
- 24 Months Italian Warranty
Data sheet
| Model | IPC-HDW2230T-AS-S2 |
| Room | |
| Image Sensor | 1 / 2.7 ”2Megapixel progressive CMOS |
| Effective Pixel | 1920 (H) × 1080 (V) |
| ROM / RAM | 128 MB / 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto / Manual 1/3 s – 1/100000 s |
| Min. Illumination |
0.005 Lux @ F1.6 |
| IR Distance | 30 m (98.43 ft) |
| IR On / Off Control | Auto / Manual |
| IR LEDs | 2 |
| Pan / Tilt / Rotation Range | Horizonal: 0 ° -360 ° Vertical: 0 ° –78 ° Rotation: 0 ° –360 ° |
| Lens | |
| Lens Type | Fixed |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Field Of View | Horizonal: 110.0 ° Vertical: 59.0 ° Diagonal: 132.0 ° |
| Iris Type | Fixed aperture |
| Close Focus Distance | 0.6 m (1.97 ft) |
| Smart Event | |
| General IVS Analytics | Intrusion; Tripwire |
| Video | |
| Compression | H.265; H.264; H.264B; MJPEG |
| Smart Codec | Yes |
| Video Frame Rate |
Main stream: Sub stream: |
| Stream Capability |
2 streams |
| Resolution |
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control |
CBR / VBR |
| Video Bit Rate |
H.264: 32 kbps – 6144 kbps |
| Day / Night |
Auto (ICR) / Color / B / W |
| BLC |
Yes |
| HLC |
Yes |
| WDR |
DWDR |
| White Balance |
Auto / natural / street lamp / outdoor / manual / regional custom |
| Gain Control |
Auto / Manual |
| Noise Reduction |
3D DNR |
| Motion Detection |
OFF / ON (4 areas, rectangular) |
| Region of Interest (RoI) |
Yes (4 areas) |
| Smart IR |
Yes |
| Image Rotation |
0 ° / 90 ° / 180 ° / 270 ° (Supports 90 ° / 270 ° with 1080p resolution.) |
| Mirror |
Yes |
| Privacy Masking |
4 areas |
| Audio | |
| Built-in MIC | G.711A; G.711Mu; G.726; AAC |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| Protocol |
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour |
| Interoperability | ONVIF® (Profile S / Profile G); CGI; P2P; Milestone; Genetec |
| User / Host | 20 |
| Edge Storage |
Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
| Browser | IE, Chrome, Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| Certification | |
| Certifications | CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30 / EU FCC: 47 CFR FCC Part 15, Subpart B UL / CUL: UL60950-1 CAN / CSA C22.2 No.60950-1-07 |
| Power | |
| Power Supply | 12V DC / PoE (802.3af) |
| Power Consumption | <5.9W |
| Environment | |
| Operating Conditions | -40 ° C to + 60 ° C (-40 ° F to + 140 ° F) / less than ≤ 95% |
| Storage Conditions | -40 ° C to + 60 ° C (-40 ° F to + 140 ° F) |
| Protection Grade | IP67 |
| Structure | |
| Casing |
Metal + Plastic |
| Dimensions | 100.9 mm × Φ109.9 mm (4.0 "× Φ4.3") |
| Net Weight | 0.39 kg (0.9 lb) |
| Gross Weight | 0.56 kg (1.2 lb) |
Further details
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera supports the Onvif version |
|
|
This camera features Video compression in H.264 and H.265 format, the new Standard for video compression! |
 |
2MPX resolution, means 5 times the resolution of a common D1 camera , all our models reach this resolution in: Max 25fps @ 1080P (1920 × 1080). Maximum fluidity. |
|
|
1 / 2.7 "STARVIS sensor with STARLIGHT technology. Low brightness, visibility at 0.005 Lux @ F1.6, color vision even in night mode
With the addition of the STARVIS feature we have significant advantages: - Backlit structure with 2.9 µm-square unit pixels - High sensitivity (two or more times greater than other products on the market) - Increased sensitivity in the vicinity of an area covered by infrared light - Supports WDR (WDR multiple exposure, DOL-WDR) - Versatile interface (parallel CMOS, low voltage LVDS serial, MIPI CSI-2) With the Sony CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black / white. With the SENSOR present, night shots will be sharp and in color
|
 |
This camera features 2.8mm Fixed lens |
 |
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation. |
 |
Infrared illuminator with 4 LEDS with range up to 30M for night vision |
 |
This camera is equipped with an on-board microphone |
 |
Remote visibility on mobile using the Dahua DMSS application. |
 |
Protection level IP67 (Dust / Diving) |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
 |
It allows to adapt the lens to the Night / Day vision and the consequent management of the IR illuminator automatically. |
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 |
BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where shooting is difficult (entrances or exits of parking lots, registration of license plates, presence of special lights etc ...). |
 |
AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
3D-NR is the most advanced version of Noise Reduction management, it allows still images in the presence of low light and in movement, The currently most powerful solution to obtain the maximum results in the presence of low light.  |
 |
Possibility to insert Micro SD up to a maximum of 256Gb (Not Included) |
 |
12V DC power supply NOT included!
|
 |
This product is covered by a 24 month warranty. |
