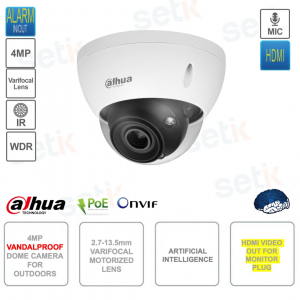

ONVIF® POE DAHUA 4MP MOTORIZED OUTDOOR IP CAMERA WITH HDMI VIDEO OUTPUT! - ARTIFICIAL INTELLIGENCE - IPC-HDBW5441E-ZE-HDMI
4MP Resolution - 2.7-13.5mm Motorized Lens - 1/2.9" CMOS with Starlight technology (24/7 color vision) - H.265+ Video Codec - Triple Stream - BLC - HLC - SSA - WDR 120dB - 1in/1out Audio - 2in/1out Alarm - IP67 protection for outdoor use and IK10 protection against vandalism - Smart IR illuminator 3 LEDs 40m - 512GB MicroSD slot (not included) - Artificial intelligence: standard IVS, Smart Object Detection, SMD, ACupick, Face detection, people counting, heat map, Video Metadata - Equipped with HDMI video output, Can be connected directly to a monitor!
Product details
- Dahua outdoor ONVIF® ePoE IP camera - IPC-HDBW5441E-ZE-HDMI
- 4MP 2688x1520p resolution, progressive scan
- 2.7-13.5mm varifocal lens, with motorized zoom
- 1/2.9” Progressive CMOS image sensor with Starlight Technology
- Starlight Technology: 24/7 Color Night Vision
- Video Compression up to H.265+
- Triple Stream Video
- Ultra WDR(120dB) , Day/Night(ICR), 3DNR,AWB,AGC,BLC
- Artificial Intelligence: IVS Standard, Smart Object Detection, SMD, ACupick, Face Detection, People Counting, Heat Map, Video Metadata
- Smart IR illuminator 3 LEDs 40m
- Remote viewing with Dahua DMSS application
- Alarm : 2 inputs + 1 output
- Audio : 1 input + 1 output (RCA port)
- Built-in microphone, equipped on board
- HDMI Video Output! Connect directly to a monitor! ( Support HDMI 1.4a )
- MicroSD slot (Max 512GB - not included)
- IP67 Protection (Dust/Immersion) - Indoor/Outdoor
- IK10 vandal-proof protection
- Dimensions: Φ159.1mm × 118.1mm
- Product net weight: 0.92Kg
- Operating temperature: –30 °C to +60 °C
- Power supply 12V DC ( Power supply NOT included ) + ePoE
- Metal
- Quality product
- 24 month manufacturer's warranty
Technical data sheet
IPC-HDBW5441E-ZE-HDMI | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.9" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
2688 (H) × 1520 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM |
256 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM |
1 GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
0.002 lux@F1.6 (Color, 30 IRE) 0.0002 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Y/N Ratio |
?56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
Up to 40 m (131.23 ft) (IR) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control |
Auto;Manual;Zoom |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
3 (IR LEDs) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle Adjustment |
Pan: 0°–355°; Tilt: 0°–65°; Rotation: 0°–355° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Motorized vari-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Mount |
φ14 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.7mm-13.5mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Openings |
F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
H: 104°–29°; V: 54°–16°; D: 125°–34° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control |
Car |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
0.1 m (0.33 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) |
Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Object Detection |
Smart abandoned object; smart missing object |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD |
SMD 3.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AcuPick |
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection |
Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face snapshot enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
People Counting |
Tripwire people counting and people counting in area; generating and exporting reports (day/week/month/year); 4 rules can be set for tripwire, people counting in area and queue management. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Heat Map |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Metadata |
Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
H.265?H.264?H.264H?H.264B?MJPEG (Only supported by sub stream) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codec |
Smart H.265+; Smart H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Coding |
AI H.265; AI H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
Main stream: 2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1-25 fps)/704 × 480@(1-30 fps) third stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream Capability |
3 streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
Certification |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI |
HDMI 1.4a, type A, female plug |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1 channel (RCA port) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
1 channel (RCA port) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input |
2 channels in: wet contact, 5 mA 3–5 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AlarmOutput |
1 channel out: wet contact, 300 mA 12 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12VDC; PoE (802.3af); ePoE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dual Power Backup |
When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Basic: 3.6 W (12 VDC), 4.7 W (PoE); Max.: 8.3 W (12 VDC), 8.8 W (PoE) (H.265+ WDR+ Intelligence on+IR on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
≤95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
≤95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
IP67; IK10 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
Φ159.1 mm × 118.1 mm (6.26" × Φ4.65") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.92 kg (2.03 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
1.22 kg (2.69 lb) |
Further details
CAMERA WITH HDMI VIDEO OUTPUT! Dahua always strives to create cutting-edge products, constantly evolving technology.
The special feature of the Dahua IPC-HDBW5441E-ZE-HDMI is that it is equipped with HDMI VIDEO OUTPUT!
Thanks to this port, you can directly connect the camera to your monitor, obtaining a video signal.
|
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera supports the ONVIF® standard |
|
This camera features ECO-SAVVY 3.0 technology! Improvements introduced: - More powerful chip that combines intelligence, efficiency and ease of use. - Higher FPS starting from 1080P resolution - Wide range of built-in functions: Intelligent detection, including face detection, tripwire detection and intrusion detection. - Starlight Technology - WDR enhancement technology (120dB) - Triple video streams |
|
Dahua's self-designed ePoE technology adopts advanced 2D-PAM3 modulation from physical layer and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable. In addition, it supports PoE and PoC power supply technology which has greatly simplified both construction and wiring. Dahua ePoE technology provides a new way to realize long-distance transmission between IP camera and network switch. It enables more flexible surveillance system design, improves reliability, and saves construction and wiring costs. |
|
This camera features a resolution of 4MP 4 Megapixels! 4MP progressive scan CMOS sensor 2688x1520. |
|
1/2.9" CMOS sensor with STARLIGHT technology. Low brightness, color vision even in night mode With this CMOS sensor, it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision changes to black/white. With the SENSOR present, night shots will be clear and in color
|
|
Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression. |
|
This camera features a 2.7-13.5mm varifocal lens with motorized zoom. Video Example: |
|
Main stream: 2688 × 1520@(1–25/30 fps) Sub stream: 704 × 576@(1-25 fps)/704 × 480@(1-30 fps) Third stream: 1920 × 1080@(1–25/30 fps) |
|
Infrared illuminator with approximate maximum range of 40m with 3 LED illuminators |
|
Remote visibility on mobile using Dahua DMSS application. |
|
Cloud function with Lechange (formerly Easy4IP)
|
|
This camera features ARTIFICIAL INTELLIGENCE - Perimeter protection |
|
This camera also features ADVANCED INTELLIGENT FUNCTIONS: - Face Detection Example image:
|
|
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where you have to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light. The higher the value in db, the greater the camera's ability to handle the strong difference in backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very high levels of contrast. |
|
This camera has 1 Audio Input + 1 Audio Output (RCA) |
|
Microphone equipped on board! | |
This camera has 2 Alarm inputs + 1 Alarm Output |
|
It allows you to adapt the lens to night/day vision and the consequent automatic management of the IR illuminator. |
|
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies, thus improving image quality. In nighttime conditions, the filter is removed as it is necessary to capture the typical IR frequencies. |
|
The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
|
BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, particular lights, entrances with shots from the inside towards the outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a fair adaptation to these situations. |
|
Protection level IP67 (Dust / Immersion) |
|
IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism. |
|
12V DC power supply not included |
|
Possibility to insert Micro SD up to a maximum of 512GB - not included |
|
This product is covered by a 24 month manufacturer's warranty. |
