WizMindX ATC 8MP Motorized 5 Stream PoE AI IP Bullet Camera - Dahua

-57%

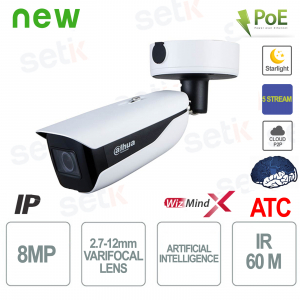

Dahua IPC-HFW7842H-Z-ATC-X WizMindX 8Megapixel PoE Outdoor Bullet IP Camera with Artificial Intelligence , 2.7-12mm motorized varifocal lens, 1/1.8" CMOS sensor, 5 streams , up to H.265 compression. 4 LED IR illumination 60MT, Day/Night(ICR), WDR 120dB, Video Analysis, Perimeter Protection, Face Detection, ANPR, People Counting, Metadata, Smart Search, Audio, Alarm, Micro SD Slot, RS485, Cloud P2P, IP67/IK10 protection with anti-corrosion.

Reference: IPC-HFW7842H-Z-ATC-X

Brand: Dahua

EAN: 6923172591579

FIND INSTALLER

https://www.setik.biz/en/video-surveillance/10544-dahua-ipc-hfw7842h-z-atc-x-dahua-wizmindx-atc-poe-ai-8mp-motorized-5-stream-ip-bullet-camera.html

€966.84

€2,248.46 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Technical Sheet Further Details Download

Telecamere IP di sorveglianza a tecnologia ANPR

ONVIF® POE OUTDOOR IP CAMERA - 8 MEGAPIXEL - MOTORIZED - STARLIGHT - 5 STREAM - ARTIFICIAL INTELLIGENCE - ATC - DAHUA

ONVIF® PoE Outdoor IP Camera - AI Series - Dahua
8 Megapixel Resolution - 2.7 ~ 12mm Motorized Lens - 1/1.8" Starlight CMOS - 5 Streams - Up to H.265
4 LED IR Illuminator 60MT - Day/Night(ICR) - Video Analysis - Artificial Intelligence - MicroSD Slot - Audio/Alarm - WDR 120dB
Artificial Intelligence: Perimeter Protection, Face Detection, People Counting, Metadata, Intelligent Search
Video Analysis : Abandoned / Lost Objects, Object Movement

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the AI used is that which allows the creation of advanced devices, for environmental analysis.

Product details

Dahua AI Series ONVIF® PoE Outdoor IP Camera
Resolution 8 Megapixel 8MP
2.7~12mm motorized varifocal lens
1/1.8” CMOS image sensor with Starlight Technology
Starlight Technology: Color Night Vision!
Video Compression up to H.265
5 Ultra-Low Streams: Five streams for three HD video channels
Artificial Intelligence: Perimeter protection, face detection, people counting, metadata, intelligent search.
General Video Analysis: Abandoned/Lost Objects, Object Movement
Functions: Day/Night(ICR), WDR 120dB , BLC, 3D DNR, Motion Detection, ROI, EIS, Defog
Smart IR Illuminator 4 LED 60 Meters
Remote Monitoring: Multiple via web browser Smart PSS, DSS PRO, NVR, IVSS, DMSS
1 audio input / 1 audio output
3 alarm inputs / 2 alarm outputs
IP67 Protection (Dust / Immersion)
IK10 protection (Vandalism) with anti-corrosion
ePoE Protocol
MicroSD Slot (Max 256GB - Not Included)
12V DC power supply (not included)
Dimensions: 340.1mm × 108.5mm × 92.9mm
24 month warranty

Technical data sheet

Model	IPC-HFW7842H-Z-ATC-X
Room
Image Sensor	1/1.8”8Megapixel progressive CMOS
Effective Pixels	3840 (H) × 2160 (V)
ROM	4 GB
RAM	2 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100000 s
Min. Illumination	0.003 Lux@F1.2
IR Distance	Distance up to 60m (196.85 ft)
IR On/Off Control	Auto/manual
IR LEDs Number	4 (IR LEDs)
Pan/Tilt/Rotation Range	Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Lens
Lens Type	Motorized vari-focal
Mount Type	Module interface
Focal Length	2.7mm-12mm
Max Openings	F1.2
Field of View	Horizontal:114° (W)–47° (T) Vertical: 59° (W)–26° (T) Diagonal: 141° (W)–51° (T)
Iris Type	Auto openings
Close Focus Distance	w: 1 m (W: 3.28 ft) T: 2.5m (T: 8.20ft)
Smart Event
General IVS Analytics	Abandoned object, moving object
Professional, intelligent
Perimeter Protection	Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering.
Face Detection	Face detection, track, priority, snapshot, face enhancement, face exposure, face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, sadness, disgust, fear, surprise, calm, happiness and confusion), mask, beard Face matting setting: face, single inch photo Three snapshot methods: real-time snapshot, priority snapshot, quality priority Face angle filter Priority time setting
ANPR	People counting (count the entry number, exit number and pass number), display and output daily/monthly/annual statistics, No. in area
Video Metadata	Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.
People Counting	People counting (count the entry number, exit number and pass number), display and output daily/monthly/annual statistics, No. in area
Smart Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression	H.265, H.264, H.264H, H.264B, MJPEG
Smart Codec	Yes
Video Frame Rate	Main Stream: 3840 × 2160 (1–25/30 fps) sub stream 1: 704 × 576 (1–25/30 fps) sub stream 2: 1920 × 1080 (1–25/30 fps) sub stream 3: 1920 × 1080 (1–25/30 fps) sub stream 4: 704 × 576 (1–25/30 fps)
Stream Capability	5 streams
Resolution	8M (3840 × 2160), 6M (3072 × 2048/3072 × 1728),5M (2592 × 1944), 4M (2688 × 1520), 3M (2048 × 1536/2304 × 1296), 1080p(1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Bitrate Control	CBR/VBR
Video Bitrate	H.264: 32Kbps–10240Kbps H.265: 12Kbps–10240Kbps
Day/Night	ICR switch
BLC	Yes
WDR	120dB
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Electronic Image Stabilization(EIS)	Yes
Smart IR	Yes
Defog	Yes
Image Rotation	0°/90°/180°/270° (Supports 90°/270° with 1080p resolution or below.)
Mirror	Yes
Privacy Masking	4 areas
Audio
Audio Compression	G.711a; G.711Mu; G726; AAC; G.723
Network
Network	RJ-45 (10/100/1000 Base-T)
Protocol	HTTP; Https; 8021.x; TCP; ARP; RTSP; RTP; UDP; RTCP;SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP;QoS; UPnP; NTP; SFTP; RTMP; Genetec;Bonjour
Interoperability	ONVIF® (Profile S/Profile G/Profile T); CGI; P2P
Self-adaptation scenes	Yes
User/Host	20
Edge Storage	FTP; Micro SD card (256G); NAS; SFTP
Browser	IE: Versions later than IE9 Chrome: Versions later than Chrome 42, Firefox: Versions later than Firefox 48.0.2,
Management Software	Smart PSS, DSS PRO, NVR, IVSS, DMSS
Mobile Phone	IOS, Android
Certification
Certifications	CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
RS-485	1 (Bit rate: 1200 bps–115200 bps)
Audio IN/OUT	Audio Interface: 1/1 channel In/Out
Alarm IN	3 channels In: 5mA 5V DC
Alarm OUT	2 channel Out: 1000mA 30V DC/500mA 50V AC
Power
Power Supply	12V DC/24V AC/POE
Power Consumption	<17.3W
Environment
Operating Temperature	-40°C to +60°C (-40°F to +140°F)
Storage Temperature	≤95%
Storage Temperature	-40°C to +60°C (-40°F to +140°F)
Ingress Protection	IP67, IK10
Structure
Casing	Metal + Plastic
Dimensions	340.1mm × 108.5mm × 92.9mm
Net Weight	1600g (3.53 lb)
Gross Weight	2400g (5.29 lbs)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera complies with the ONVIF® standard
	Dahua's self-designed ePoE technology adopts advanced 2D-PAM3 modulation from physical layer and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable. Dahua ePoE technology provides a new way to realize long-distance transmission between IP camera and network switch. It enables more flexible surveillance system design, improves reliability, and saves construction and wiring costs.
	Dahua ANPR cameras offer a full range of license plate recognition functions. They integrate an algorithm that detects and captures license plate numbers and stores the details in a database Clear registration of license plate numbers Database registration Trigger events inc. barrier control Integration with Dahua NVR Snapshot support on SD Card PoE Easy installation and use How and where can it be used? A Dahua ANPR camera is suitable for various types of areas, including parking lot entrances, barrier-controlled areas or lane monitoring. The camera can acquire license plates up to a speed of 25 miles per hour ( 40km/h ) Entrances with gates or barriers Parking management Safety Bus lane monitoring Oil stations
	AI \| Artificial Intelligence This camera features Artificial Intelligence on board This means that it has a wide range of advanced features such as: - Perimeter protection : Line crossing, intrusion, fast movement (3 functions support classification and accurate detection of vehicles and humans), parking detection, loitering, wandering - Face detection Face detection, tracking, priority, snapshot, face emphasis, face exposure, face attribute extraction, 6 attributes and 8 expressions: gender, age, glasses, expressions (anger, sadness, disgust, fear, surprise, calm, happiness, confusion), mask, beard. Face Matting setting: face, single thumb photo. 2 snapshot strategies: snapshot priority, recognition. Face angle filter, priority time setting. Up to 5 groups of face libraries management. Single person registration and batch person registration. Face detection and similarity settings. Support maximum contrast in face libraries with 200,000 faces - People counting : Counts the number of people entering and exiting and transmits the number, displays and outputs daily/monthly annual statistics, No. in area. - Video Metadata: Support human body, human face, motor and non-motor vehicle capture and attribute extraction - Smart Search: Work with NVR Smart to perfect the performance of smart search, event extraction and event video fusion
	Video Stream - 5 Streams! This camera supports H.265/H.264 video compression with 5 video streams!
	This camera features a 2.7-12mm varifocal lens with motorized zoom. Optics Demo Video:
	1/1.8" CMOS sensor with STARLIGHT technology. With this CMOS sensor , it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision changes to black/white. With the SENSOR present, night shots will be clear and in color
	Infrared illuminator with 4 LEDs and approximate maximum range of 60m This camera also features SMART IR technology. Through this technology, the light emitted by the LEDs is adapted depending on the object being framed.
	Remote visibility on mobile using Dahua DMSS application.
	Cloud function with Easy4IP
	This camera features VIDEO ANALYSIS (SMART DETECTION): - Recognition of lost and abandoned objects - Movement of Objects
	ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light. The higher the value in db, the greater the camera's ability to handle the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db, managing very strong levels of contrast.
	This camera has ROI function. Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
	This camera features EIS function. The EIS (Image Stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable.
	DEFOG It allows you to clearly see images taken in particular weather conditions: rain, smoke and fog
	It allows you to adapt the lens to night/day vision and the consequent automatic management of the IR illuminator.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies, thus improving image quality. In nighttime conditions, the filter is removed as it is necessary to capture the typical IR frequencies.
	The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
	BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, particular lights, entrances with shots from the inside towards the outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a fair adaptation to these situations.
	3D-NR is the most advanced version of NOIS REDUCTION management. It allows still images in low light and in motion. It is currently the most powerful solution to obtain maximum results in low light.
	This camera has 1 audio input + 1 audio output
	This camera has 3 inputs + 2 alarm outputs
	1x RS485
	Possibility to Record what happens on MicroSD. (Max 256GB - Not included)
	Protection level IP67 (Dust / Immersion)
	IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there are risks of vandalism with anti-corrosion
	To operate this camera you need a 12V DC power supply (not included)
	This product is covered by a 24 month warranty.
