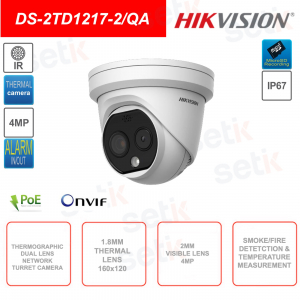

Hikvision Outdoor PoE IP Camera Thermographic CurtainVu Bi-spectrum IVS Fire Alarm Dual Lens IR Thermal
Hikvision DS-2TD1217-2/QA CurtainVu Bi-Spectrum Turret PoE IP Thermographic Camera with fire detection and NETD ambient temperature <40mk Dual-lens, dual thermal optics (1.8mm) / visible 2mm and Dual-Sensor (1x Thermal Vox + 1x CMOS Progressive scan 1/2.7"). 4MP resolution for visible optics, H.265, IR cut filter with auto switch, WDR 120db, 1 input/1 output Alarm, Audio, RS485, MicroSD slot up to 256 GB (sold separately), Hik-Connect compatible. IP67 and TVS6000 protection Ideal for fire prevention in internal spaces such as machine rooms, ATMs, conference rooms etc
FIND INSTALLER
DS-2TD1217-2/QA | CURTAINVU HIKVISION BI-SPECTRUM TURRET IP POE THERMOGRAPHIC DUAL LENS FIRE ALARM
Outdoor PoE Thermographic Turret IP Camera - CurtainVu DS-2TD1217-2/QA
Dual-Lens: (Thermal 1.8mm / 2mm visible) - NETD <40mk(25°C) / Accuracy ± 8 °C - Dual Sensor (thermal Vox / CMOS 1/2.7" 4MP) - Resolution 4.0MP (visible optics)
IR illuminator up to 15M - Audio - 1in/1out alarm - RS485 - 256GB MicroSD slot (not included) - Hik-Connect connection - WDR 120dB
Ideal for ambient temperature, fire and smoke detection - IP67 outdoor protection - TVS 6000 lightning protection -
HIKVISION CURTAINVU:Thermal Technology in Residential:HeatPro CurtainVu by Hikvision is the ideal solution for complete video alarm protection of small outdoor spaces such as balconies, terraces, gardens, courtyards and porches.  |
DS-2TD1217-2/QA - HIKVISION
The turret thermographic camera was created to detect the high body temperature of the skin surface.
Can be used for preliminary temperature screening in offices, factories, stations, airports and other public places.
- 160 × 120 resolution in the thermal channel, high sensitivity Vox sensor
- Temperature range: -20°C to 150°C; Accuracy: ±8°C (±14.4°F)
- Double optics: thermal 1.8mm / Visible 2mm
- Visible camera resolution 4MP 2688 × 1520 with 1/2.7" progressive scan CMOS sensor
- Reliable alarm exception function
- 3D DNR, image detail enhancement, DDE, WDR 120dB, AGC
- Alarm (1 input and 1 output)
- Audio
White Light Range
Up to 30 m
Visual Alarm
Yes. White light alarm with adjustable flashing frequencies
Audio alarm
Yes, for two types of audible alarm (VCA, Temperature) 2 preset voice alerts (one for each) 6 importable user-defined voice alerts (4 options shared in the two types)
Smart Function
VCA
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement
3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range
- 20 °C to 150 °C (- 4 °F to 302 °F)
Temperature Accuracy
±8°C (±14.4°F)
General Function
Fire detection,
smoking detection, sun-reflection filter,
|
Video and Audio |
|
|
Main Stream |
Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Sub-streams |
Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240) |
|
Video Compression |
Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG |
|
Audio Compression |
G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
|
Network |
|
|
Protocols |
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TLS |
|
Network Storage |
MicroSD/SDHC/SDXC card (up to 256G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
|
APIs |
ISAPI, HIKVISION SDK, ISUP, and third-party management platform, Open Network Video Interface, ONVIF (Profile S, Profile G, Profile T) |
|
Simultaneous Live View |
Up to 20 channels |
|
User/Host level |
Up to 32 users, 3 levels: Administrator, Operator, User |
|
Security |
User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering |
|
Client |
iVMS-4200, Hik-Connect |
|
Web Browsers |
Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 + |
|
Interface |
|
|
Alarm Input |
1, alarm input (0-5 VDC) |
|
Alarm Output |
1, alarm output (alarm response actions configurable) |
|
Alarm Action |
SD recording/Relay output/Smart capture/FTP upload/Email linkage |
|
Audio Input |
1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [pp], output impedance: 1 KΩ ± 10% |
|
Audio Output |
Linear level, impedance: 600 Ω |
|
Communication Interface |
1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex) |
|
General |
|
|
Web Client Language |
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
|
Power Supply |
12 VDC ± 25%, φ 5.5 mm coaxial power plug PoE (802.3af, class 3) |
|
Power Consumption |
12 VDC ± 25%: 0.5 A, Max 6 W PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W |
|
Working Temperature/Humidity |
Temperature: - 40 °C to 65 °C (- 40 °F to 149 °F) Humidity: 95% or less |
|
Protection Level |
IP67 Standard TVS 6000V lightning protection, surge protection, voltage transient protection |
|
Dimensions |
138.3 mm × 138.3 mm × 123.1 mm (5.45" × 5.45" × 4.85") |
|
Weight |
940 g (2.07 lb) |
ONVIF®:Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems. |
|
POE (Power Over Ethernet):
|
|
Double Optics on board: - Thermal optics with 160x120 resolution of 1.8mm NETD <40 mK
|
|
Thermal Optics, NETD and Accuracy:
|
|
Traditional Optics: |
| Bi-spectrum fusion: Possibility of viewing in thermal, traditional, thermal/traditional Bi-Spectrum fusion or picture in picture (thermal vision in optical vision) modes . In these last two modes, the details of the images will be clearer even if overlapped, useful for proofing, when necessary. Previewing in these cases also reduces bandwidth and there is no need to switch from thermal to optical or vice versa.  |
| Fire Detection: Ideal camera for fire detection. |
|
Infrared IR Illuminator: |
|
HIK-CONNECT Hik Connect allows you to control the device remotely
|
| WDR 120dB: WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.  |
| Day/Night: It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
|
| IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
| Alarm:
1 alarm input (0-5vDC) and 1 relay output , configurable alarm response action. |
| Audio:
Audio input: 1 x 3.5 Microphone / Line in Line audio interface input: 2 to 2.4V [pp], output impedance: 1 K? ±10% |
| Storage:
MicroSD slot up to 256GB (not included). Alarm recording.
|
|
IP67 protection - outdoor: |
|
TVS 6000V protection: TVS 6000V protection against lightning |
