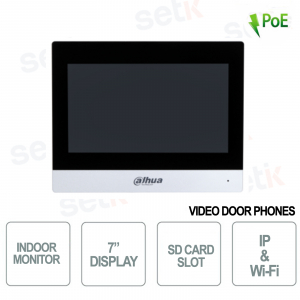

Indoor monitor - 7" Touch Display + IP and WI SD Card Slot - Silver - Dahua

Indoor monitor - 7" Touch Display + IP and WI SD Card Slot - Silver - Dahua
-57%

Dahua indoor monitor, intercommunicating with other homes, equipped with a 7" TFT Capacitive Touch Screen Display and 6 Alarm Inputs . Directory functions, call recording and history, pop up on alarm, connection with LAN port and LIVE connection with Dahua IP cameras . SD Card slot, PoE. Color Silver. VTH8621KMS-WP



Reference: VTH8621KMS-WP

Brand: Dahua

EAN: 6923172532107

FIND INSTALLER

€258.63

€601.46 -57%
taxes included
Tax included
 Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


INTERCOMMUNICATING INDOOR MONITOR WITH 7" TOUCH DISPLAY AND SD CARD SLOT - DAHUA

DESCRIPTION:
The Dahua VTH8621KMS-WP station is one of the best indoor stations on the market.
Equipped with 7" TFT color capacitive touch screen display, 6 alarm inputs and SD card slot.

There are some interesting functions such as the address book, recording and call history, pop up on alarm and LIVE connection with Dahua IP cameras.

In call or surveillance mode it is capable of taking screenshots.

Quality product. Dahua Security brand. Silver colour.

Product Details:

  • Indoor workstation - Dahua
  • Intercommunicating with other compatible internal stations
  • 7" color TFT display with 1024x600 resolution
    Connection via Wi-Fi
  • Capacitive touch screen
  • 6 Alarm Inputs
  • Address book functions
  • Call recording and history
  • Pop up on alarm
  • LIVE connection with Dahua IP cameras
  • During call or video surveillance mode the station is able to take screenshots
  • SD Card Slot
  • One 10/100 Mbps Ethernet
  • Call between families
  • Supports external stations and IPC monitors
  • Mounting to be applied on the wall or box prepared with the supplied plate
  • Standard PoE power 12V DC 1A (36–57V, 0.35A)
  • Maximum consumption 6W
  • Operating temperature -10°-+55°
  • Dimensions: 185mm × 147mm × 23.4mm (L*W*T)
  • Quality product. Silver colour
  • 24 month warranty

Data sheet

Model

VTH8621KMS-WP

System Main Processor Embedded processors
Operation System Embedded Linux operating system
Interoperability ONVIF; SDK
Network Protocol IPv4; TCP; SIP; DNS; SSH
Basic Screen Type Capacitive Touchscreen
Display 7" TFT
Resolution 1024(H)×600(V)
Audio Compression G.711a; G.711u; PCM
Audio Input 1
Audio Output Built-in speaker
Audio Mode Two-way voice call
Audio Enhancement Echo suppression
Audio Bit Rate 16kHz, 16bit
Function Communication Mode Full digital
Information Release Receive and view information released by the management center
Leave Videos Yes (insert an SD card into the indoor monitor)
DND Mode Do not disturb period can be set.
Number of Extensions Villa: 9
Apartment: 4
Wi-Fi intercom: 1 main monitor, 2 extension monitors
Wifi Yes
Wireless Standard IEEE802.11b/802.11g/802.11n
Wireless Frequency Range 2.412–2.472 MHz
Wireless Security Encryption WPA/WPA2; WPA-PSK/WPA2-PSK
Storage Micro SD card (up to 64 GB)
Performance Casing Metal
Port Alarm Input 6
Alarm Output 1
Network Port RJ-45 port, 10/150 Mbps self-adaptive
General Appearance Color Silver
Power Consumption 12–24 VDC, 1 A; Standard PoE (36–57V, 0.35A)
Power Adapter Not Standard
Installation Surface Mount
Certifications THERE IS; FCC
Product Dimensions 185 mm × 147 mm × 22.4 mm (7.28" × 5.79" × 0.88")
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–95% (RH), non-condensing
Operating Altitude Beneath 3,000 m (9,842.52 ft)
Power Consumption Standby ≤ 3W; working ≤ 7 W
Net Weight 0.39 kg (0.86 lb)
Gross Weight 0.58kg (1.28lb)


7" TFT display, 1024x600 resolution, capacitive touch screen

Display postazione interna VTH1560B

Intercom station. This means it can communicate freely with other internal monitors
SOS button to send an emergency call directly to the management center
Button to answer the call. During a call, press to hang up
1x SD Card Slot
In surveillance or call mode, you can take screenshots
Address book function
Call recording and history

LIVE connection with Dahua IP cameras

This DVR presents 8 alarm entries and 1 alarm exit 6 Alarm Inputs

12VDC_Supply
PoE power supply

Power supply 12 VDC 1A, Standard PoE (36–57 V, 0.35 A)

Italian Guarantee icon This product is covered by a 24 month warranty.
