Network Keyboard - PoE - WiFi - 4-axis Joystick - For PTZ cameras - 10.1 Inch Touchscreen - Audio - HDMI - DVI

Network Keyboard - PoE - WiFi - 4-axis Joystick - For PTZ cameras - 10.1 Inch Touchscreen - Audio - HDMI - DVI
QUESTIONS ABOUT THE PRODUCT

 
-35%

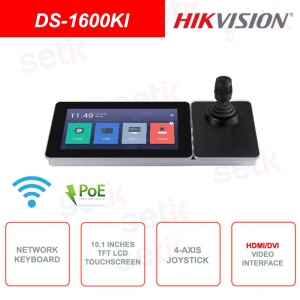

HIKVISION DS-1600KI Keyboard - Integra 10.1 Inch 1280x800 TFT LCD Color Touchscreen Display - 4-axis Joystick - Bidirectional Audio - 2-channel Decoding up to 1080p Full HD - 10/100/1000Mbps Interface - 2 x USB 2.0 - HDMI Video /DVI Out 1080p - Supports PoE - Supports Wi-Fi - For PTZ cameras, DVR, Videowall, MVC - Up to 8,000 devices - Separable touchscreen and joystick.



Reference: DS-1600KI

Brand: Hikvision

FIND INSTALLER



Made by Hikvision

DS-1600KI | HIKVISION | EXPANSION MODULE WITH 10.1 INCH 1280x800 TOUCHSCREEN LCD DISPLAY - 4-AXIS JOYSTICK - IDEAL FOR PTZ CAMERAS

Keyboard Expansion Module - Network Keyboard IP POE - 10.1 inch color LCD TFT Touchscreen Display, 1280x800 pixel - 4-axis joystick - For controlling PTZ cameras, MVC Multi-functional Video Centers, DVR - Connection of up to 8,000 devices - Power supply 12VDC (not included)/POE - HDMI and DVI Video Interface - 2-channel 1080p Full HD decoding - LAN 10/100/1000Mbps - Possibility of using touchscreen and joystick separately - 2 x USB 2.0 - Possibility of exporting data and images to USB External Flash Drive (not included) - Two-way audio via 3.5mm jack.

EXPANSION MODULE:

The module integrates:

  • Keyboard
  • 10.1 inch color TFT LCD touchscreen, with 1280x800 resolution

The two elements can be detached to be used separately

INTERFACE:

  • Network: RJ45 10/100/1000Mbps
  • USB 2.0
  • Enables storage of captured images on U-Flash Disk (sold separately)
  • HDMI and DVI Video Out 1080p*
  • 2-channel 1080p Full HD decoding capability
  • Bidirectional audio 1in/1out via 3.5mm jack connector

*Local viewing 1080P/720P/HD1/BCIF/CIF/QCIF;
up to 16-division window display

Wifi:

This expansion module allows for wireless WiFi communication.

CONTEXT OF USE:

Ideal for use with:

  • PTZ cameras
  • DVR
  • Matrix Access Gateways (VAG)
  • Video walls
  • Decoders

DIET:

12VDC power supply.

Supports POE power supply

Data sheet

Model

DS-1600KI

Operating System

Android 6.0

TFT LCD Screen

10.1" TFT LCD touchscreen

Resolution: 1280 × 800

Joysticks

4-axis joystick

Local Decoding

Local live view at 1080P/720P/HD1/BCIF/CIF/QCIF resolution, and up to 16-division window display

Audio Input

1-ch, 3.5mm connector (2.0Vp-p, >1kΩ)

Audio Output

1-ch, 3.5mm connector (2.0 Vp-p, 600 Ω)

Network Interface

10M/100M/1000M Adaptive Ethernet port

Wifi

Supported

USB Interface

USB 2.0 × 2

Video Interface

HDMI, DVI

Power Supply

12V DC /POE

Consumption

≤15W

Working

Temperatures

-10°C to +55°C

Working Humidity

10% to 90%

Dimensions

(W × D × H)

404 × 180 × 163 mm (15.91" x 7.09" x 6.42")

Weight

1.7kg (3.75lb)

Further details

Downloads

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
