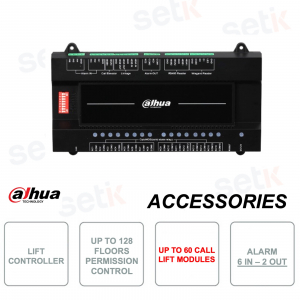

CONTROLLER FOR LIFTS - DAHUA - VTM416
DESCRIPTION:
Control terminal for lifts - Supports up to 8 devices in cascade - Allows permission control on 128 floors - Up to 60 call modules - Supported connection: up to 1 Wiegand reader / 2 RS485 readers - Log and alarm records: up to 30,000 - Remote control via web client - 6in/2out alarm - 1 dedicated fire alarm output - 16 relays - For wall mounting - U-shaped mounting rail.
Quality product. Dahua Security brand
Product details:
|
Data sheet
Technical Specification | |
model | VTM416 |
System | |
Main Processor | ARM Cortex M4@180MHz |
CommunicationType | TCP/IP; RS485, and Wiegand |
Indicator | |
Power Indicator | 1 |
Communication Indicator | 1 |
Relay Indicator | 16 |
interface | |
Alarm In | 6 (Alarm_in_1 for fire alarm) |
Alarm Out | 2 |
RS485 | 4 RS485 1: card reader or call lift module RS485 2: card reader or call lift module RS485 3: cascade with slave lift controller RS485 4: call lift module |
Wiegand | 1 |
Relay Out | 16 |
General | |
Installation | Fixed onto the wall; U-shaped guide rails |
Power | DC 12V/2A |
Working Temperature. | -20°C~+55°C |
Relative humidity | 10%~90%RH |
Dimensions | 210mm×116mm×29mm |
Weight | 1.0Kg |
