Two-wire external video intercom station - IP PoE ONVIF® - 2MP HD camera - IP65 and IK08 - IR and WDR

Two-wire external video intercom station - IP PoE ONVIF® - 2MP HD camera - IP65 and IK08 - IR and WDR
-57%

IP Onvif and 2-wire PoE external station with integrated camera with 2MP CMOS HD sensor - Bidirectional communication with internal monitors - 2MP HD CMOS - IP65 and IK08 protection - H.265 video - 100M RJ45 connection - Bidirectional audio - Speaker - Alarm - Tamper alarm - RS485 - Lock Control - 256GB MicroSD slot (not included) - Made of aluminum alloy - Gray color - Dahua - VTO3312Q-P

Reference: VTO3312Q-P

Brand: Dahua

EAN: 6923172532565

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

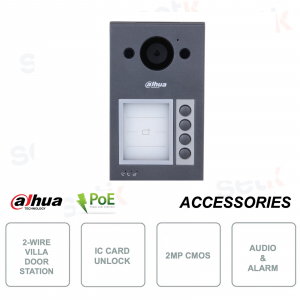

ALUMINUM OUTDOOR STATION - 2MP HD CAMERA AND LIGHTING - SPEAKER - ALARM - DAHUA - VTO3312Q-P

DESCRIPTION:
The outdoor station VTO3312Q-P by Dahua, is one of the best stations on the market
Ideal for installations in Villas thanks to its refined design.
Equipped with camera with 2Mp HD CMOS sensor, integrated speaker, 1 alarm input and 1 output, anti-tamper alarm.

Product Details:

Postazione esterna in acciaio Dahua serie VTO2202F-P-S2
  • Two-wire IP PoE ONVIF® outdoor station - Dahua - VTO3312Q-P
  • Category: Video intercom
  • Integrated camera with 2MP HD CMOS image sensor
  • Includes True WDR120dB and IR with automatic adjustment
  • Two-way audio
  • Omnidirectional microphone
  • Integrated speaker
  • Supports authentication and unlocking via IC Card (max. 3,000 records)
  • Power: 48V DC, 1A, via DAHUA-980 switch (VTNS1006A-2) not included
  • Maximum consumption 12W
  • 256GB MicroSD Card Slot (not included)
  • RS-485
  • 1 RJ45 network port (10/100M)
  • Surface-mounted or recessed mounting with special optional containers
  • IP65 rating for protection from outdoor use
  • Durable steel panel, vandal-proof (IK08)
  • Made of aluminum alloy
  • Color: Grey
  • Power: 48 VDC, 1 A
  • Supports Standard PoE Dahua two-wire switch (max. supported distance of 50 m)
  • Quality product
  • Ideal for wall mounting
  • Rain cover included
  • Ribbon alarm cable included
  • 24 month warranty

Data sheet

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form

Questions (0)

No customer questions for the moment.


Your Question has been successfully sent our team. Thanks for question!
Ask a question
hide form
Captcha
VTO3312Q-P

System

Main Processor

Embedded Processor

Button Type

Mechanical

Interoperability

ONVIF®; CGI

Network Protocol

RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF®

Basic

Room

1/2.8" CMOS 2-MP HD camera

Field of View

H: 125°; V: 65°; D: 139°

WDR

120dB

Noise Reduction

3DNR; 2D NO

Video Compression

H.264; H.265

Video Resolution

Main stream: 720p, WVGA, D1, and CIF;
Sub stream: 1080p, WVGA, D1, QVGA, and CIF

Video Frame Rate

PAL: 25 fps
NTSC: 30fps

Video Bit Rate

768kbps–8Mbps

Light Compensation

Auto IR

Day/Night

Auto (ICR)/Color/B/W; Color/B/W

Audio Compression

G.711a; G.711u; PCM
