Dahua Onvif PoE IP video intercom 2 MP camera 4 buttons and RFID reader

Dahua Onvif PoE IP video intercom 2 MP camera 4 buttons and RFID reader
BEST PRICE -58%

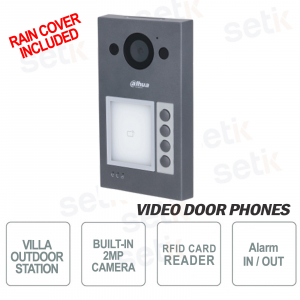

Dahua outdoor station VTO3311Q-WP Outdoor PoE IP video intercom with 2 MP camera 1 / 2.8 "CMOS sensor, 2mm lens, 4 mechanical buttons and Mifare card reader . Night vision, microphone and speaker, two-way conversation, 1x Door Control, 1x RS485, 1x Feedback, 1x Exit Button, 1x Input and 1x Alarm Output, 1x Tamper Switch, 1x RJ-45 Remote Communication with Mobile APP, IP65,IK08, Rain Cover Included!



Reference: VTO3311Q-WP

Brand: Dahua

EAN: 6923172532558

FIND INSTALLER

€262.35

€624.64 -58%
taxes included
Tax included
 Available from 30 December 2024

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


DAHUA 2 MEGAPIXEL OUTDOOR IP ONVIF® POE VIDEO DOOR PHONE - 4 MECHANICAL BUTTONS AND RFID READER - RAIN COVER INCLUDED


Product details:

Postazione esterna con telecamera 2Mp, 4 pulsanti e lettore RFID
  • Outdoor PoE IP video intercom - Dahua
  • Category: Video intercom
  • Integrated camera with 1/2.8" 2 MP CMOS image sensor
  • Mifare RFID card reader
  • Rain Cover Included!
  • 4 mechanical buttons
  • Support night vision (Day/Night with IR CUT FILTER)
  • Omnidirectional microphone
  • Integrated speaker
  • It supports two-way conversation
  • 1 Door Control
  • 1 RS485
  • 1 Feedback
  • 1 exit button
  • 1 input and 1 alarm output
  • 1 Tamper switch
  • 1 RJ-45
  • IP65 and IK08 protection
  • Surface installation
  • Material: Metal
  • Power supply 12 VDC, 1 A; PoE standards
  • Dimensions: 188.1mm × 107.2mm × 30mm
  • Quality product
  • 24 months warranty

Data sheet

Modes VTO3311Q-WP
main processor Embedded micro processor
ButtonType Mechanical
Interoperability ONVIF®; CGI
NetworkProtocol RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/ HTTPS; ONVIF®
Room 1/2.8" CMOS 2-MP HD camera
Field of View H: 125°; V: 65°; D: 139th
wdr extension 120dB
Noise reduction 3D NR; 2D NO
Video Compression H.264; H.265
Video Resolution Mainstream: 720p, WVGA, D1, and CIF;
Sub streams: 1080p, WVGA, D1, QVGA, and CIF
Video Frame Rate PAL: 25fps
NTSC: 30fps
Video Bit Rate 768kbps–8Mbps
Light Compensation Auto IR
Day/Night Auto(ICR)/Colour/B/W; Color/B/W
Audio compression G.711a; G.711u; pcm extension
Audio inputs 1
Audio Outputs Built-in speaker
Sound Mode Two-way audio
Audio Enhancements Echo suppression/digital noise reduction; echo suppression; Digital noise reduction
Audio Bit Rate 16kHz, 16-bit
Communication Mode Full digital
UnlockMode cards; apps; indoor monitors
CardType IC card
Auto Snapshots Yes (SD card is inserted in the indoor monitor or door station)
Leave Videos Yes (SD card inserted in VTH/VTO is needed)
WebConfiguration Yes
Wifi Yes
Wireless Standard IEEE 802.11b; IEEE 802.11g; IEEE 802.11n
Wireless Frequency Range 2.4GHz
Storage Micro SD card (max. 256GB)
Card Reading Distance 0cm–3.5cm (0"–1.38")
Issue Card Locally Yes
Casing Aluminum alloy
RS-485 1
Alarm Inputs 1
Alarm Output 1
Exit Button 1
Door Status Detection 1
Lock Control 1
Network Port 1 × RJ-45 10/100Mbps Ethernet port
Tamper Alarm Yes
Appearance colour Grey
Power Supply 12VDC, 1A; PoE standards
Power Adapters Options
Installation Surface Mount
Certifications THERE IS; FCC
accessory Included: Alarm power ribbon cable, rain cover
Product Dimensions 188.1mm × 107.2mm × 30mm (7.41" × 4.22" × 1.18")
Protection IP65 IK08
Operating Temperature –40°C to +60°C (–40°F to +140°F)
Operating Humidity 10%–90% (RH), non-condensing
Operating Altitude 0 m–3,000 m (0 ft–9,842.51 ft)
power consumption ≤ 3W (standby), ≤ 6W (working)
Gross Weight 0.81kg (1.79)
Net Weight 0.55kg (1.21lb)

Further details


Videocitofono con telecamera integrata

Camera integrated in the device.
Image sensor 1/2.8" 2MP CMOS

1x Integrated MIFARE RFID Card Reader for door release (Card not included)

4x Mechanical Buttons

Excellent quality night vision.

Filtro IR CUT

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Microfono e altoparlante

Built-in omnidirectional microphone and speaker .

It supports two-way conversation

This DVR presents 8 alarm entries and 1 alarm exit 1 Alarm inputs
1 Alarm output
Questo DVR presenta 2 porte RJ-45 ( 10 / 100 / 1000Mbps) Connection via RJ-45 Ethernet LAN port (10M/100Mbps)
Controllo tramite RS485

1 RS485 port

Protezione Waterproof Station suitable for outdoor environments thanks to the Waterproof IP65 feature
Rain Cover Included!
Degree of protection from vandalism IK08

12VDC_Supply
PoE power supply

DC 12V power supply, PoE(802.3af)

Materiale con cui è stato creato il dispositivo Panel made in Metal
Italian Guarantee icon This product is covered by a 24 month guarantee.
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
