DS-KD8003-IME1 / S IP PoE Outdoor Workstation, Ideal for low light environments, Access control function, Easy to extend, 1 Mechanical Button , Fisheye Camera with IR to increase illumination, Supports anti-tampering mode, Customizable Nametag , Echo and audio noise suppression, H.264 video compression, BLC, DNR, WDR, Antiflicker, 10 / 100M self-adaptive Ethernet.
FIND INSTALLER

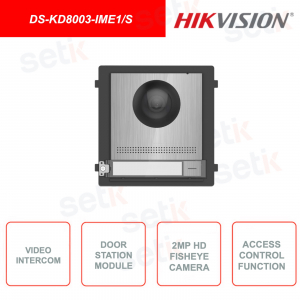

DS-KD8003-IME1 / S | HIKVISION EXTERNAL STATION - POE - AUDIO IN / OUT - 1 BUTTON - 2 MEGAPIXEL HD FISHEYE CAMERA
|
1 MECHANICAL BUTTON |
|
CAMERA INTEGRATED IN THE DEVICE: with 2 megapixel resolution, equipped with infrared illuminator, Fisheye |
|
ETHERNET CONNECTION: Connection via self-adaptive RS-45 10 / 100M port |
|
ADVANCED VIDEO FUNCTIONS: The video setup of this device is equipped with advanced image enhancement features, such as: - IR support lighting, useful in poorly lit environments |
|
POWER SUPPLY: 12 VDC power supply |
Data sheet
| Model | DS-KD8003-IME1 / S |
|
System parameters |
|
|
Processor |
Embedded MCU Processor |
|
Operation system |
Embedded Linux operation system |
|
Operation method |
Physical button |
|
Video Parameters |
|
|
Room |
Low illumination 2 MP HD IR camera |
|
Video Compression Standard |
H.264 |
|
Resolution |
Main stream: 1920 × 1080 Sub stream: 720 × 480 |
|
BLC |
Supported |
|
DNR |
Supported |
|
WDR |
Supported |
|
Anti-flicker |
50 Hz, 60 Hz |
|
Field of view |
Horizontal: 180 ° Vertical: 96 ° |
|
Audio parameters |
|
|
Audio input |
Built-in omnidirectional microphone |
|
Audio output |
Built-in loudspeaker (More than 85 dB within 20 cm) |
|
Standard audio compression |
G.711 U |
|
Audio compression Rate |
64 Kbps |
|
Audio quality |
Noise suppression and echo cancellation |
|
Light supplement |
|
|
Light supplement mode |
IR supplement |
|
Network parameters |
|
|
Ethernet |
10/100 Mbps self-adaptive Ethernet |
|
Network protocol |
TCP / IP, RSTP |
|
Alarm parameters |
|
|
Tampering alarm |
1 |
|
Interfaces |
|
|
Module- connecting |
1 |
|
Door contact input |
2 |
|
Exit button input |
2 |
|
I / O input |
4 |
|
Debug |
1 |
|
Door control |
2, breakdown voltage: 36V |
|
Performances |
|
|
Card capacity |
Max. 10000 |
|
User capacity |
Max. 2000 |
|
Linked Indoor station |
Max. 100 |
|
Linked sub door station |
Max. 8 |
| Linked Doorphone | Max. 8 |
| Protocol | ISAPI, RTSP, STMP, SNMP |
| Unlock Door | Unlock by presenting cards, unlock via Client Software, unlock via App, unlock via indoor station |
| General | |
| Physical Button | 1 |
| Power Supply | 12 VDC / PoE (IEEE 802.3af) |
| Power Consumption | ≤ 10 W |
| Working Temperature | -40 ° C to + 55 ° C (-40 ° F to 131 ° F) |
| Working Humidity | 10% to 95% |
| Installation | Flush mounting, surface mounting |
| Dimensions | 98 mm × 99.8 mm × 43.9 mm (3.86 "× 3.93" × 1.73 ") |
| Material | Stainless steel |
