Dahua VTO6541H - Multi-family outdoor station with integrated camera having 2Mp CMOS sensor, white LED lighting, 4.3 "LCD display , IC card reader and keypad for entering home number or password - RS-485 and Wiegand interface - 2x inputs + 2x alarm outputs - IP65 degree - Dahua
FIND INSTALLER
€620.74
€1,551.84 -60%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
Description Product Details Datasheet Further Details Installation Download

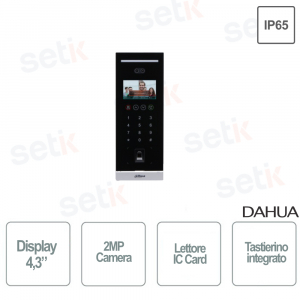

CONDOMINIUM OUTDOOR STATION WITH 2MP CAMERA, 4.3" IPS TOUCH DISPLAY AND IC CARD READER - DAHUA
DESCRIPTION:
The VTO6541H condominium outdoor station by Dahua is one of the best stations on the market
Ideal for installations in condominiums or multi-dwelling buildings.
Equipped with camera with 2Mp CMOS sensor, 4.3" IPS touch display and IC Card reader .
The white light LED integrated in the device and the IR LEDs allow for simplified recognition of the framed subject.
Quality product. Dahua Security
Product details:
|
Data sheet
| model | VTO6541H |
| Main Processor | Embedded processor |
| Internet Protocol | SIP, P2P, IPv4, FTP, UPnP, DNS, DDNS, RTSP, RTP, TCP, UDP |
| KeyboardType | Touch |
| Operating system | Linux |
| Rom | 4GB |
| Ram | 1GB |
| Basic | |
| Display | 4.3inch IPS screen |
| ScreenType | capacitive screen |
| Screen Resolution | 800×480 |
| Room | 1/2.7" 2MP CMOS high definition, low illumination, white illuminator and IR illuminator |
| angle of view | Horizontal: 87.42°; vertical: 46.48°; diagonal: 104.13° |
| Focal Length | 4.0mm, F1.6 |
| wdr extension | 120dB |
| Light Compensation | Auto white light Auto IR light |
| Noise reduction | 3D noise reduction |
| video compression | H.264 |
| videoresolution | Main stream: 720p, sub stream: 1080p |
| Frame rates | Main Stream (720P@25fps), Sub Stream (1080P@25fps) Main Stream (720P@30fps), Sub Stream (1080P@30fps) |
| Video bit rate | 256Kbps–2048Kbps |
| Day/Night | Auto switch ICR |
| Audio compression | G.711u |
| Input Audio | 1 |
| Audio outputs | Built-in speaker |
| Sound Mode | Full-duplex communication |
| Audio Enhancement | Echo suppression and cancellation/digital noise reduction |
| Audio Bit Rate | 16KHz, 16Bit |
| Function | |
| Communication Mode | Full digital |
| UnlockMode | Card/Remote/Password/Fingerprint/Face unlock |
| CardType | IC card |
| motion detection | Video motion detection |
| Auto Snapshots | Yes |
| Leave Videos or Text Messages | Yes |
| WebConfiguration | Yes |
| Performance | |
| Card Reading Distance | 1cm–5cm |
| Issue Card Locally | Yes |
| Face Recognition Height Range | 1.1m–2.4m is recommended |
| Face Recognition Distance | 0.3m–2cm |
| Face Recognition Configuration | Recognition threshold Facial profile angle |
| Face Verification Accuracy | 99.5% |
| Face Recognition Time | 0.2s |
| Fingerprint Sensor Type | Capacitive |
| Casing material | PC+ABS |
| Capacity | |
| Card Capacity | 10,000 |
| Face Image Capacity | 10,000 |
| Fingerprint Capacity | 10,000 |
| Port | |
| RS-485 | 1 |
| Wiegand | 1 (input or output, configurable) |
| Electric lock | 1 |
| Alarm Inputs | 2 (Digital Quantity) |
| Alarm Output | 2 (Digital Quantity) |
| Power Output Port | 1, 12V/100mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1, normally open by default |
| Ethernet | 1 RJ-45 10Mbps/100Mbps self-adaptive |
| Tamper | Yes |
| General | |
| Unlock Password Mode | User password/public password/hard password |
| Color | Silver |
| Power Supply Mode | DC 12V 2A |
| Power Adapters | Options |
| Installation | Surface mount and Flush mount |
| Certification | CE/FCC |
| accessory | Options |
| Product Dimensions | 388.5mm×145.5mm×43.5mm (15.30"×5.73"×1.71") |
| Protection Grade | IP65 (silicone sealant is needed, see the quick start guide) |
| Working Temperature | -30°C to +60°C (-22°F to +140°F) |
| Working Humidity | 10%RH–90%RH (non-condensing) |
| Working Altitude | 86kPa–106kPa |
| power consumption | ≤5W (standby), ≤18W (working) |
| Net Weight | 1.0kg (2.20lbs) |
| Gross Weight | 1.29kg (2.84lbs) |
Further details
 | Camera integrated in the device. |
 | Device equipped with white light + IR LEDs for better night vision. |
  | 4.3" multi-line LCD display |
  | 1x Integrated IC Card Reader for door unlock (Card not included) |
  | Mechanical numeric keypad for entering the home extension or password for unlocking the door. |
| Port Connection Communication via RS485 or Wiegard |
 | 2 inputs + 2 alarm outputs |
 | Workstation suitable for outdoor environments thanks to the Waterproof - IP65 feature |
 |
Up to 10,000 cards, 10,000 faces and 10,000 fingerprints |
| 12V DC power supply |
 | Panel made entirely in PC+ABS . |
 | This product is covered by a 24 month guarantee. |
Installation
Application - TCP IP video door phone system in Apartment
