KTX01F - Dahua - Complete Video Intercom Kit - For wall installation: 1x 2-wire external station VTO2023S + 1x Internal two-wire or WIFI station with 7" TFT display and 1024x600 resolution VTH2123GW-W +1x Two-wire controller VTNC1003C + power cable .



Reference: KTX03

Brand: Dahua

FIND INSTALLER

€353.56

€768.60 -54%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno

DAHUA VILLA VIDEO INTERCOM SURVEILLANCE KIT - COMPLETE - FOR SURFACE MOUNTING - KTX03

Kit Videocitofonia IP Dahua completo e pronto all'uso Villa

WHAT DOES THE KTX03 KIT INCLUDE?

- 1x Outdoor station with 2MP DWDR camera - View A: 84°; V: 43°; P: 99° - For outdoor IP65 - IK08 ( VTO2023S )
 - 1x Internal two-wire or WIFI station - White colour ( VTH2123GW-W)
- 1x Two-wire Controller (VTNC1003C)
 - 1x power cable

Product details

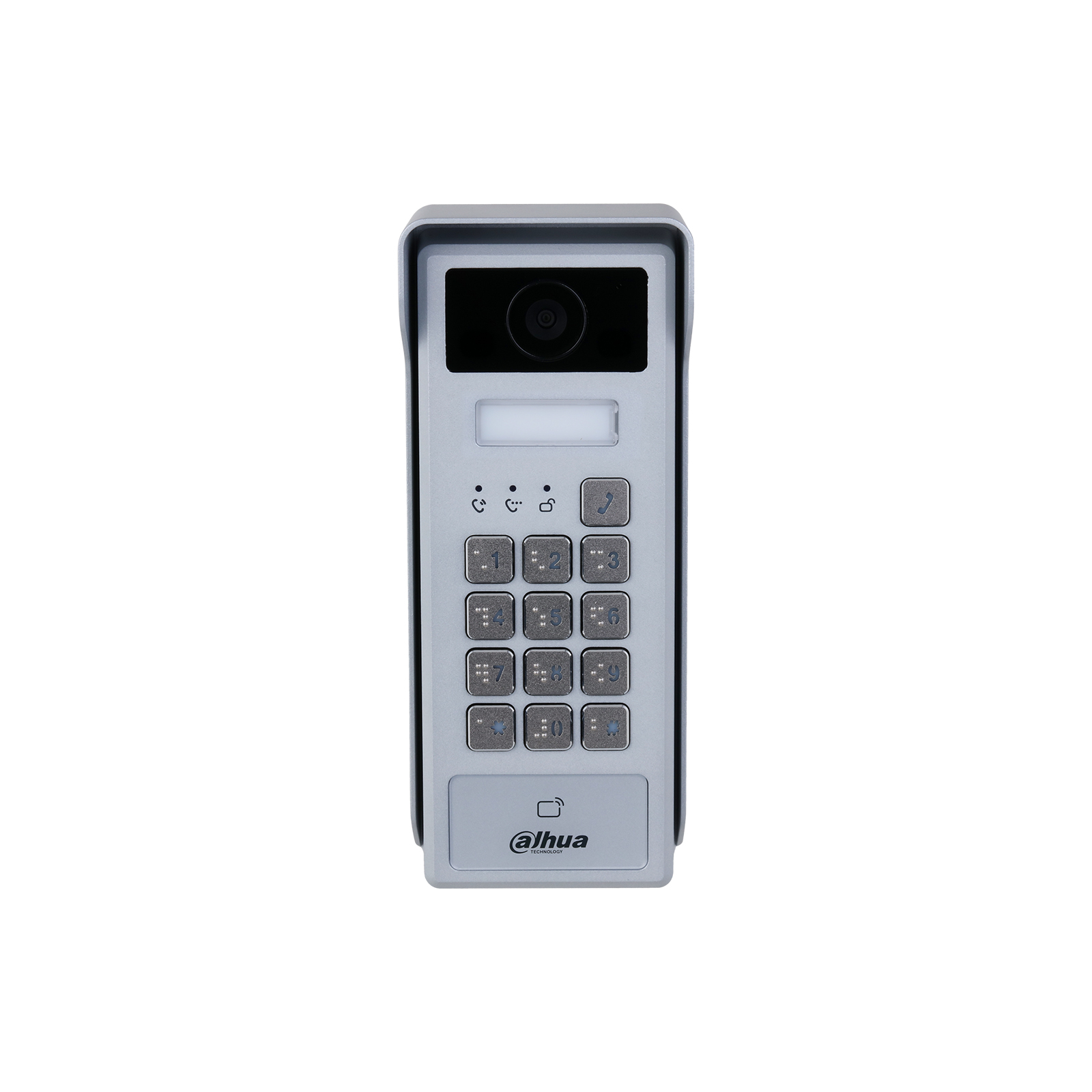

Outdoor station with 2MP HDR DWDR camera - IK08 and outdoor IP65 - VTO2023S

Postazione esterna dahua VTO2023S

VTO2023S

> 2MP CMOS 1/2.8" HDR, DWDR, 3DNR camera
> Mechanical button
> Viewing angle A: 84°; V: 43°; P: 99°
> Day/Night Mode ICR
> Two-wire power supply
> Speaker
> Two-way audio
> 1x audio input
> 1 alarm output
> 1 exit button
> 1x RS-485
> Made of aluminum alloy
> IK08, IP65
> Surface installation
> Silver color

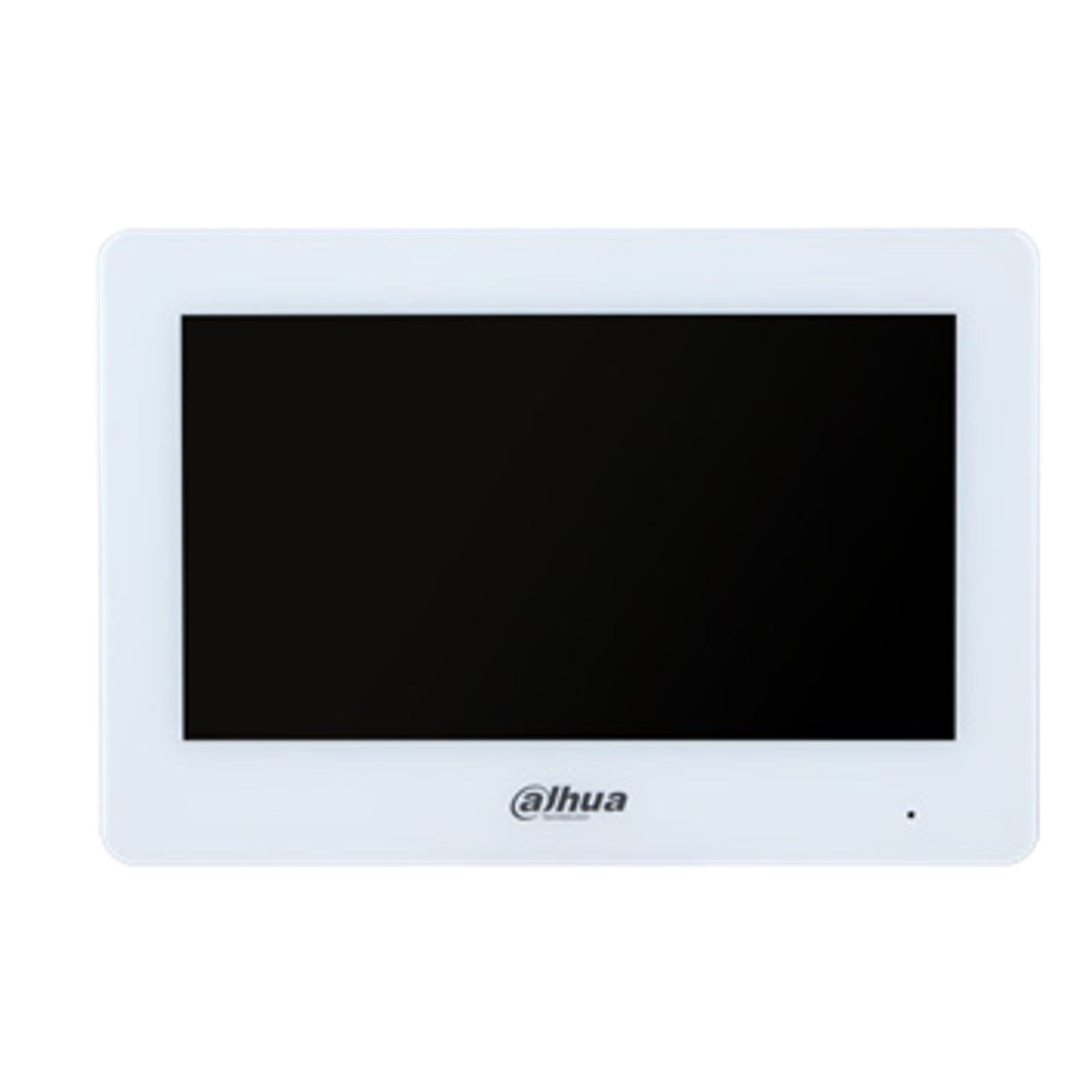

1x Indoor Monitor with 7" TFT Capacitive Touchscreen display - VTH2123GW-W
Postazione interna IP Dahua villa VTH2421FW-P

1x White two-wire / WIFI internal station with 7" TFT display - Audio / Alarm - VTH2123GW-W

> 7" TFT capacitive touch screen 1024 (H) × 600 (V)
> Capacitive touchscreen
> WIFI 2.4Ghz, Standard IEEE802.11b/802.11g/802.11n
> Supports DND Mode (Do Not Disturb Mode)
> Supports up to 5 extensions
> 6 inputs and 1 alarm output
> 1 audio input
> Two-way audio
> Built-in speaker
> RS485
> Bell
> Supports two-wire power supply
> Echo and noise suppression function
> Two-wire digital communication / WIFI
> 64GB MicroSD slot (sold separately)
> Color: white
> Size: 134.6mm × 189.6mm × 24.0mm
> In ABS plastic and polycarbonate

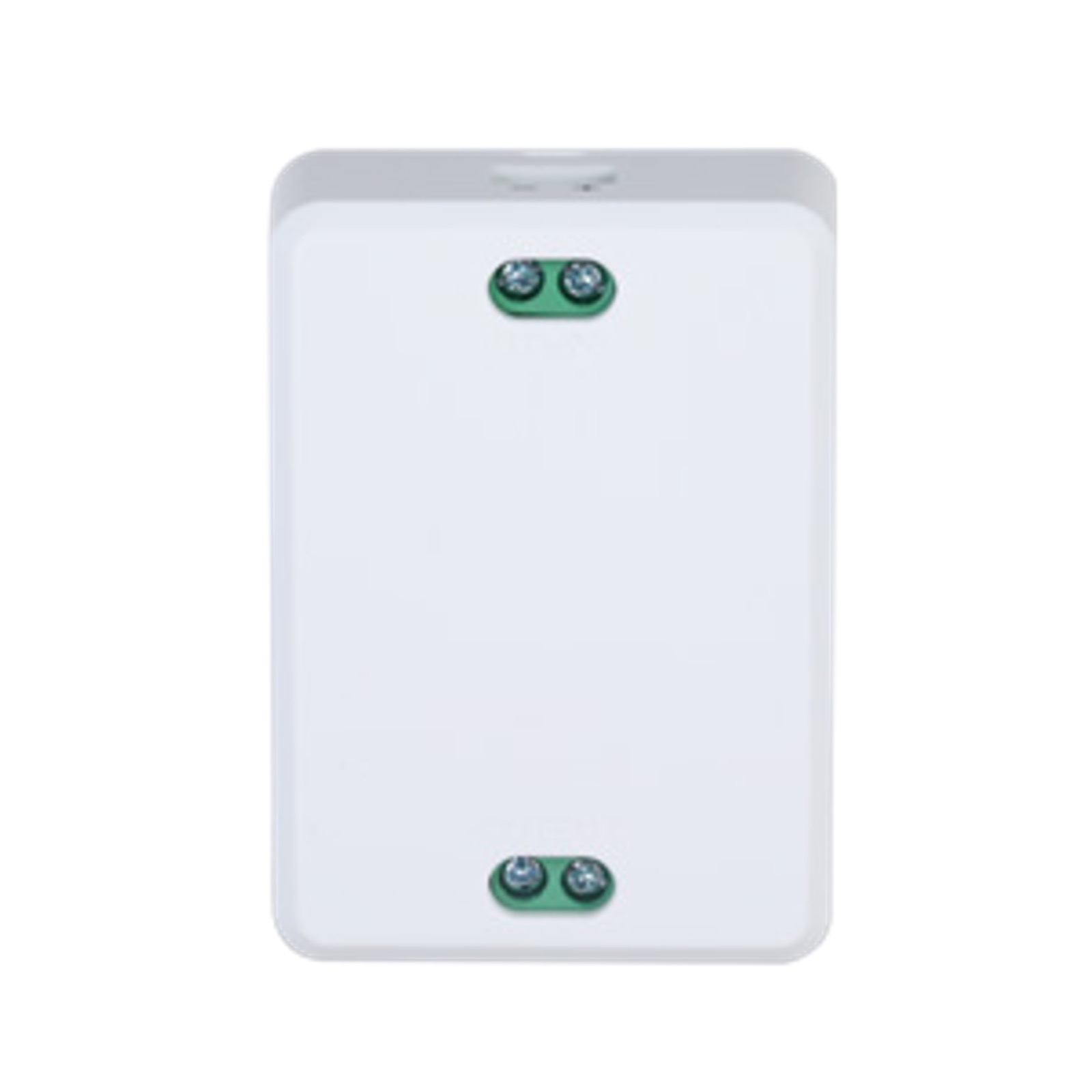

1x Controller two-wire - VTNC1003C

Switch Bifilare

1x Two-wire Controller - VTNC1003C

> ABS and Polycarbonate Cases
> Line termination terminal included
> Dimensions: 65.2mm × 46.2mm × 23.2mm
> Operating temperature: –10 °C to +55°C
> White color
> Power supply: 48 VDC

Technical data sheet

KIT: KTX03

VTH2123GW-W

System

Anti-corrosion Level

Basic Protection

VTNC1003C

Performance

Casing Material

PC + ABS

Port

Power Output

48V/0.9A

General

Appearance Color

White

Power Supply

48VDC

Power Adapter

48V/0.9A

Certifications

CE; FCC

Accessories

Included: Line termination terminal

Product Dimensions

65.2 mm × 46.2 mm × 23.2 mm (2.57" × 1.82" × 0.91")

Operating Temperature

–10 °C to +55°C (14 °F to +131 °F)

Operating Humidity

10%–95% (RH)

Operating Altitude

0 m–3000 m (0 ft – 4265.09 ft)

Power Consumption

3.5W

Gross Weight

0.13 kg (0.29 lb)

Further details

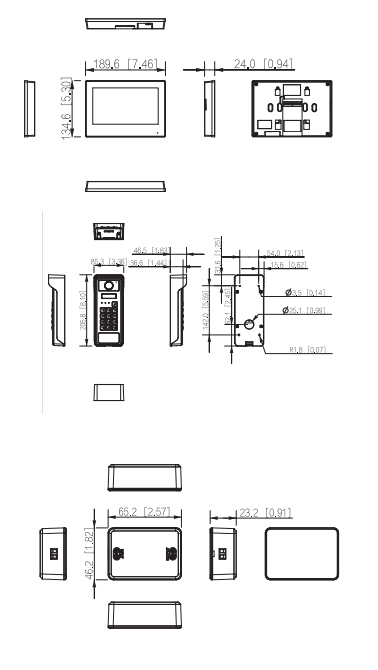

KTX03 dimensions
