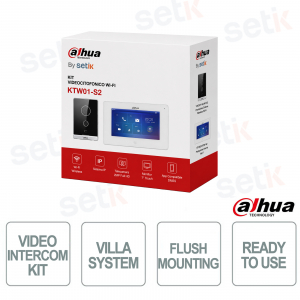

KIT-KWT01 Dahua Video door entry kit: Consisting of VTO2211G-WP (Wireless WIFI outdoor station), VTH5221DW-S2 ( Dahua WiFi Wireless intercommunicating indoor station ) . Dahua Security. KIT-KTW01
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
IP VIDEO DOOR PHONE SURVEILLANCE KIT DAHUA VILLA - COMPLETE - RECESSED - KIT-CIT01
|
The KIT-KTW01 kit by Dahua Security is one of the best complete video door entry kits on the market. All the products contained in this kit are reliable, top quality products, which allow you, your home or your office to be completely safe. |
|
|
WHAT DOES THIS KIT INCLUDE? |
|
Product details
|
1x Dahua VTO2211G-WP IP outdoor station
|
1x Outdoor station - VTO2211G-WP > IEEE802.11b / 802.11g / 802.11n WiFi protocol |
1X Indoor station for VTH5221DW-S2  |
1x Dahua indoor station - VTH5221DW-S2 |
Data sheet
| Model | VTO2211G-WP-S1 |
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux operating system |
| Button Type | Mechanical |
| Interoperability | ONVIF® |
| Network Protocol | SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP |
| Basic | |
| Room | 1 / 2.8 '' 2MP CMOS high definition, low illumination / WDR / color / IR |
| Field of View | Horizontal: 125 °; vertical: 72 °; diagonal: 142 ° |
| WDR | 120dB |
| Noise Reduction | 3D noise reduction |
| Video Compression | H.264 |
| Video Resolution | Main stream: WVGA, 720P, D1 Sub stream: CIF, WVGA, QVGA, 1080P, D1 |
| Video Frame Rate | PAL: 25 fps NTSC: 30 fps |
| Video Bit Rate | 256K to 4M |
| Light Compensation | Auto IR |
| Day / Night | ICR auto switch |
| Audio Compression | G.711Mu; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression and cancellation / digital noise reduction |
| Audio Bit Rate | 16KHz, 16Bit |
| Function | |
| Communication Mode | Full digital |
| Unlock Mode | Card / app / indoor monitor unlock |
| Card Type | IC card |
| Motion Detection | Video motion detection |
| Auto Snapshot | Auto snapshot can only be enabled on indoor monitors |
| Leave Videos | Yes (Insert an SD card into the indoor monitor) |
| Wifi | Yes |
| Wireless Standard | IEEE802.11b / 802.11g / 802.11n |
| Wireless Frequency Range | 2.4GHz |
| Web Configuration | Yes |
| Performance | |
| Card Reading Distance | 3cm – 5cm |
| Casing | PC + Acrylic |
| Capacity | |
| Card Capacity | 10,000 |
| Port | |
| RS-485 | 1 |
| Electric Lock | 1 |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Power Output | 1 |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1, normally closed by default |
| Network | 1 10M / 100M network port |
| Alarm | |
| Tamper | Yes |
| General | |
| Color | Black plate & silvery frames |
| Power Supply | 12V DC 1A PoE standard |
| Installation | Surface mount |
| Certifications | CE / FCC / UL |
| Accessory | Brackets and alarm ribbon cable |
| Dimensions | 150 mm × 100 mm × 24.8 mm (5.91 '' × 3.94 '' × 0.98 '') |
| Protection Grade | IP65 (Silicone sealant is needed, see the quick start guide.) |
| Operating Temperature | -30 ° C to + 60 ° C (-22 ° F to + 140 ° F) |
| Operating Humidity | 10% RH – 90% RH (non-condensing) |
| Operating Environment | Outdoor |
| Operating Altitude | Beneath 3000 m (9842.51 ft) |
| Power Consumption | Standby≤1W, working≤7W |
| Gross Weight | 490 g (1.08 lb) |
| Model | VTH5221DW-S2 |
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux operating system |
| Button Type | Touch button |
| Interoperability | ONVIF® |
| Network Protocol | IPv4, FTP, RTSP, RTP, TCP, UDP, SIP |
| Basic | |
| Screen Type | Capacitive Screen |
| Resolution | 7/10 inch TFT display |
| Resolution | 1024 × 600 |
| Video Compression | H.264 |
| Audio Compression | G.711a; G.711Mu; G.711u; PCM |
| Audio Input | 1 omnidirectional microphone |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression and cancellation / digital noise reduction |
| Audio Bit Rate | 16KHz, 16Bit |
| Function | |
| Communication Mode | Full digital |
| Information Release | Text messages released by the management center can be received and viewed (Insert an SD card into the indoor monitor). |
| Smart Home | You can control the elevator through the indoor monitor |
| Smart Home | Can be connected to Dahua smart home devices. |
| Leave Videos | Yes (Insert an SD card into the indoor monitor) |
| DND Mode | Yes |
| Extension Quantity | 9 |
| Wifi | Yes |
| Wireless Standard | IEEE802.11b / 802.11g / 802.11n |
| Wireless Frequency Range | 2.4GHz |
| Wireless Security Encryption | 64 / 128bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK, WPS |
| Storage | 8G Micro SD card (max SD card capacity supported is 64GB) FTP |
| Port | |
| RS-485 | 1 |
| Alarm Input | 6 |
| Door Bell | Yes |
| Network | 1 RJ-45, 10M / 100Mbps self-adaptive |
| Alarm | |
| SOS | Yes |
| General | |
| Casing | PC + ABS |
| Color | White |
| Power Supply | Dahua Switch (the max power supply distance is 50 m) 12V DC 1A |
| Installation | Surface mount |
| Accessory | Brackets and alarm ribbon cable |
| Dimensions | 215.0 mm × 140.0 mm × 21.0 mm (5.91 "× 3.94" × 0.98 ") |
| Operating Temperature | -30 ° C to + 55 ° C (-22 ° F to + 140 ° F) |
| Operating Humidity | 10% RH – 90% RH (non-condensing) |
| Power Consumption | ≤3W (standby), ≤7W (working) |
| Gross Weight | 0.69 kg (1.52 lb) |
