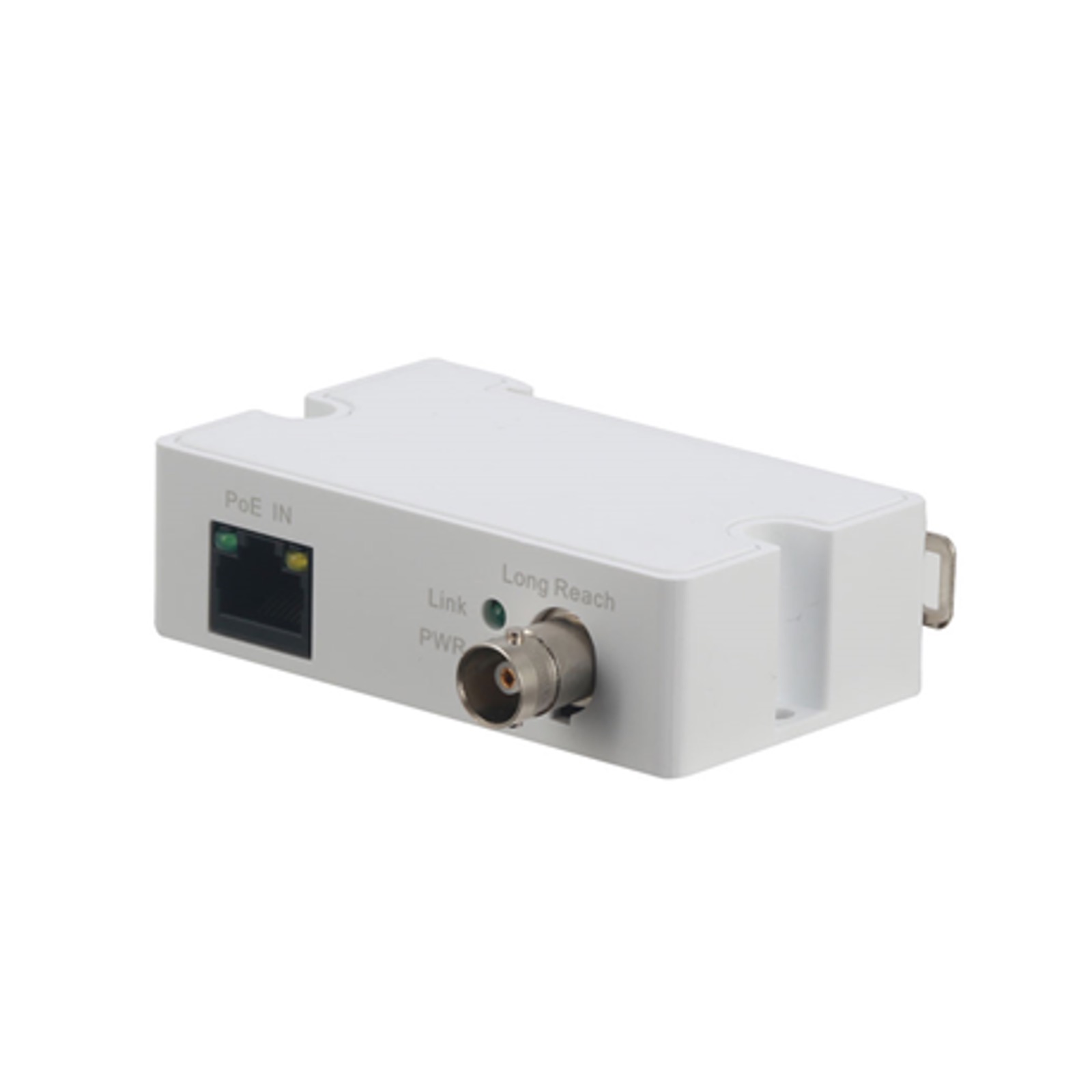

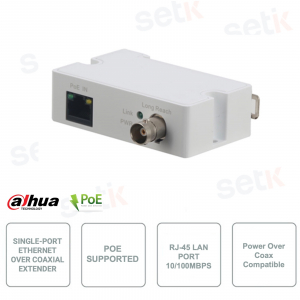

LR1002-1EC-V3 Dahua - Ethernet signal extender converter on coaxial cable. Equipped with 1 BNC port and 1 RJ45 LAN 10/100Mbps port with PoE support - Distance Up to 400m 100Mbps, up to 1,000m 10Mbps - Transmission standards IEEE802.3, IEEE802.3u. Requires PoE/ePoE switch transmitter Lightning proof 4Kv - 2Kv differential - Weight 61g. - Dimensions: 79 x 52 x 23 mm
FIND INSTALLER
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
SINGLE PORT ETHERNET EXTENDER ON COAXIAL CABLE WITH BNC PORT - DAHUA - LR1002-1EC-V2
Extends Ethernet signal via coaxial cable - 1 BNC port - 1 RJ45 10/100Mbps Base-TX port - Long distance transmission: 400m 100Mbps / 1,000m 10Mbps - 4kV lightning proof - Supports PoE - Supports coaxial power - Network Supported standards: IEEE802.3, IEEE802.3u, IEEE802.3x
Product details
- Ethernet extender - Dahua Technology - LR1002-1EC-V2
- Signal extension via coaxial on single BNC port
- BNC Port
- 1 RJ45 10/100Mbps Base-TX port
- Long distance transmissions: 400m: 100Mbps / 1,000m: 10Mbps
- Supports 48V passive PoE
- Supports coaxial power supply
- Operating temperature: -30°C ~ +65°C
- Relative Humidity: 5%~95%
- Dimensions: 79 x 52 x 23 mm
- Product net weight: 61g
- Lightning protection: 4KV common mode, 2KV differential mode
Data sheet
| LR1002-1EC-V2 |
1 RJ45 10/100Mbps Base-TX port |
1 BNC port |
Network Standards: IEEE802.3, IEEE802.3u, IEEE802.3x |
Transmission bandwidth over RG59 coax: 400 meters at 100Mbps, 1 km at 10Mbps |
PoE Protocol: 48V passive PoE (Pairs 1, 2+; 3, 6 Return) |
Power consumption: <2W |
Operating Temperature: -30°C ~ +65°C |
Operating relative humidity: 5% ~ 95% |
Lightning-proof: 4KV common mode, 2KV differential mode |
Dimensions: 79 x 52 x 23 mm |
Weight: 61 g |
