EoC TRANSMITTER PASSIVE VIDEO SIGNAL CONVERTER FROM RJ45 TO BNC - POWER SUPPLY - DAHUA TECHNOLOGY

Made by Setik

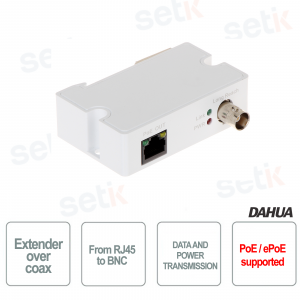

Dahua Technology EoC Extender Transmitter
Converts video signal from RJ45 to BNC - Transmits data and power - Support PoE 802.3 at/af ePoE
1x RJ45, 1x BNC, Overvoltage protection, Plug&Play, MD/MDI-X auto detection, support IP cameras and network devices
Easy to install. Wall or DIN rail mountable. Camera side operation. 79 x 64 x 23 mm

Product details

Convertitore EoC Passivo RJ45 a BNC

  • ETHERNET+PoE EXTENDER LR1002-1ET-V3 DAHUA TRANSMITTER
  • Converts video signal from RJ45 to BNC
  • Transmits data and power over coaxial
  • Support PoE 802.3 at/af, ePoE
  • Ports: 1x RJ45 10/100Mbps, 1x BNC
  • Overvoltage protection
  • Plug & Play
  • Auto MDI/MDI-X Detection - automatically detects the data transmission mode
  • Support for IP cameras and network devices
  • Easy to install - no IP and MAC address configuration required
  • PoE Power - pin 1, 2 and 3, 6
  • The device works from the camera side
  • Possibility of wall or DIN rail installation TS-35
  • UTP cable length for camera max. 2 m
  • Quality product

Technical data sheet

Model LR1002-1ET-V3
LAN Ports 1x RJ45 unit
Transmission port 1x BNC connector
Transmission speed 10 / 100 Mbps
Transmission range

max. 1000m @ 10Mbps
max. 400m @ 100Mbps
The range of data transmission and power depends heavily on the cable used and the power required to power the receiver.

Protections

Against overvoltage

Main Features

Plug & Play

Automatic MDI/MDI-X detection - automatically detects the data transmission mode

Support for IP cameras and network devices

Easy installation - no IP and MAC address configuration required

PoE power supply - pins 1, 2 and 3, 6

Device works from the camera side

Wall or TS-35 DIN rail installation possible

UTP cable length for camera max. 2 m

Power supply

ePoE

PoE (802.3af/at)

Weight:

0.07 kg

Dimensions:

79 x 64 x 23 mm



Further details

LR1002-1ET-V3 application
LR1002-1ET-V3
LR1002-1ET-V3 installation

Download

Brochure in English
