POEIN100 Setik 2-Port PoE Injector (1x RJ45 10/100Mbps + 1x RJ5 10/100Mbps PoE 802.3AF/AT). Transmission up to 100M, 52V 1A3 0W~52W, PWR LED, 10/100/1000Mbps backbound bandwidth. Support PoE IP cameras, wireless access points, IP phones etc. All ports support wire speed switching, jumbo frame transmission. 145x57x40mm, 100~240VAC 50-60Hz 1.0A
FIND INSTALLER
€29.89
€59.78 -50%
discover the available quantity

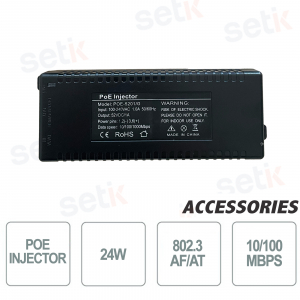

POE INJECTOR 2XPORT RJ45 10/100MBPS (1 POE 802.3AF/AT) - 48V 24W - UP TO 100METERS - SETIK
POEIN100:
PoE Injector - Setik
Maximum Power 52W - Up to 100 Meters
2x RJ45 ports (1x RJ45 10/100 Mbps + 1x RJ45 10/100Mbps PoE 802.3AF/AT)
Supports IP POE cameras, wireless access points, IP phones etc...
All ports support wire speed switching, jumbo frame transmission
145x57x40mm, 100~240VAC 50-60Hz 1.0A
Product details
- PoE Injector POEIN100 - Setik
- 2x RJ45 10/100 Mbps (1 PoE 802.3AF/AT)
- 52V 1A 30W~52W
- Up to 100m away
- Support IP POE cameras, wireless access points and IP phones
- All ports support wire speed switching, jumbo frame transmission.
- Size: 145x57x40mm
- Backbound bandwidth 200Mbps
- 100~240VAC 50-60Hz 1.0A
- 24 Months Italian Warranty
Technical data sheet
| Model | POEIN100 |
| PoE Support | IEEE 802.3af/at |
| Power | 30W~52W |
| Output | 52V 1A |
| Voltage Range | 100~240VAC 50-60Hz 1.0A |
| Data Speed | 10/100/1000Mbps |
| Power Pin | 1/2/4/5(+), 3/6/7/8(-) |
| Indicators | LED indicators are located on the Rj45 connector |
| Network Cable | Shielded Cat5, Cat5e, Cat6 or better |
| Extended Distance | 0~100M |
| Output Over Voltage Protection | -52V~-50V DC |
| Overcurrent Protect | Single circuit: 500mA-1000mA |
| Overvoltage Protection | Input Voltage: 290V-310V AC |
| Overvoltage Recovery Point | Input Voltage > 240V AC |
| Under voltage protection | Input Voltage < 140V-155V AC |
| Undervoltage Recovery Point | Input Voltage < 100V AC |
| Temperature Protect | >100°C |
| Working temperature & humidity | -10°C~+50°C, 20~90%RH |
| Store temperature & humidity | -20°C~+85°C, 10~95%RH |
| Temperature coefficient | ±0.03%°C(0~50°C) |
| Dimensions | 145*57*40mm (L*W*H) |
| Weight | 0.22kg |
POEIN100: Learn moreThe PoE Injector is useful in those cases where you want to power the camera directly with the data cable, the Injector once powered sends on the network cable in addition to the data also the power needed to power the device. Suitable for IP POE cameras, wireless AP, IP phones etc... |
