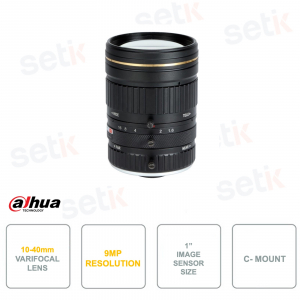

LENS FOR CAMERAS - 10-40mm VARIFOCAL LENS - 9MPX - DAHUA - PFL1040-K9M

Dahua Technology
Lens for video surveillance cameras - Dahua - PFL1040-K9M
9MP - 10-40MM varifocal lens - 1" sensor - C mount
Manual Zoom/Iris/Focus - Quality product - Minimum object distance: 2.5m

Product details

  • Lens - Dahua - PFL1040-K9M
  • 1" sensor
  • 9MP
  • 10-40mm varifocal lens
  • Aperture: F1.5
  • Minimum object distance: 2.5m
  • C mount
  • Manual Zoom/Focus/Iris
  • Supported operating temperature: -30??+70?
  • Product net weight: 0.58kg
  • Product Dimensions: ?66x98.1mm

Data sheet

model

PFL1040-K9M

Parameter

Image Format

1"

Focal Length

10-40mm

Lens Pixels

9MP

Openings

F1.5

mount

c

Field Angle (D*H*V)

1"

W: 70°(D)x58°(H)x44°(V) T: 24.2°(D)x19.5°(H)x14.6°(V)

2/3”

W: 50.3°(D)x40°(H)x29.7°(V) T: 19.3°(D)x15.4°(H)x11.5°(V)

1/2''

W: 38°(D)x30°(H)x22°(V) T: 14°(D)x11.4°(H)x8.3°(V)

Lens Control

Focus

manual

Zoom

manual

Iris

manual

MOD

2.5m(8.2ft)

Dimension

?66x98.1mm (?2.60”x 3.86”)

Weight

0.58kg (1.3lb)

Operating Temperature

-30??+70?(-22?~+158?)

humidity

<90%RH

Further details

Downloads

Download English brochure

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
