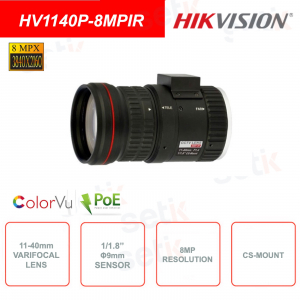

HV1140P-8MPIR | HIKVISION | LENS FOR CCTV CAMERAS - VARIFOCAL 11-40MM - 8MP RESOLUTION

Made by Hikvision
Varifocal lens 11-40mm - 8MP - HIKVISION - HV1140P-8MPIR
Varifocal lens 11-40mm - Sensor 1/1.8" diameter 9mm - Resolution 8MP - CS mount - F1.4-C - P-Iris - Focus: manual - Zoom: manual - Minimum object distance: 0.1m - Constant IR aperture 8MP - Product for professional solutions in the field of video surveillance.
DS-2CC12D9T-A Banners
  • Lens - For CCTV video surveillance cameras - HIKVISION - HV1140P-8MPIR
  • Varifocal lens 11-40mm
  • 8MP resolution
  • 1/1.8" sensor with 9mm diameter
  • Minimum object distance: 0.1m
  • F1.4-C
  • CS attack
  • Focus (Focus): manual
  • Zoom: manual
  • P-Iris
  • 8MP IR Constant Aperture
  • Dimensions: Φ48*93.3mm
  • Functional temperature: -20~60?
  • Lens net weight: 271.2g

Data sheet

CCTV LENS SPEC

Model Name

HV1140P-8MPIR

focal length

11-40mm

F number

F1.4-C

Max. Image format

Φ9mm?1/1.8"?

Control

Iris

P-iris

Focus

manual

Zoom

manual

Field of View

d

1/1.8"

45.2°?13.8°

h

36.7°?11.5°

v

23.9°?7.6°

specification Vari-focal P-iris
Constant Aperture 8MP IR
mount CS mount
Flange Back Length 12.5mm
MOD 0.1m
Dimension Φ48*93.3mm
Weight 271.2g
Operating Temperature -20~60?

Further details

DS-2CC12D9T-A dimensions

Downloads

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
