Lens for video surveillance cameras - HIKVISION - TV0550D-IRA - Varifocal lens 5-50mm - Sensor size 1/3" Φ6.0mm - CS type mount - DC Auto Iris IR - Minimum object distance 0.5m - Manual focus and zoom - F1 .4-C - High quality product.
FIND INSTALLER
HIKVISION - TV0550D-IRA - LENS FOR CCTV CAMERAS - 5-50MM VARIFOCAL LENS - 1/3" - DC AUTO IRIS

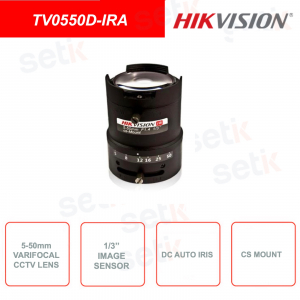

Lens for CCTV cameras - HIKVISION - TV0550D-IRA
Varifocal lens 5-50mm - Sensor 1/3" Φ6.0mm - Minimum object distance 0.5mm - CS mount - DC Auto-Iris - Manual zoom and focus - Weight 118g - Dimensions: Φ42*64.65mm - F1.4- C - High quality product.
Product details
- Lens for CCTV cameras - Hikvision - TV0550D-IRA
- 5-50mm varifocal lens
- 1/3" sensor
- CS attack
- Minimum object distance 0.5mm
- F Number: F1.4-C
- DC Auto IRIS
- Manual focus and zoom
- Dimensions: Φ42*64.65mm
- Weight: 118g
- Working temperature: -20~60?
Data sheet
CCTV LENS SPECS | |||
Model NO. | TV0550D-IRA | ||
focal length | 5-50mm | ||
F number | F1.4-C | ||
Max. Image format | Φ6.0mm?1/3"? | ||
Control | Iris | DC Drive | |
Focus | manual | ||
Zoom | manual | ||
Field of View | d | 1/3" | 61.3°?6.8° |
h | 49°?5.4° | ||
v | 36.8°?4° | ||
| specification | Vari-focal DC Auto Iris IR | ||
| mount | CS Mount | ||
| Flange Back Length | 12.5mm | ||
| MOD | 0.5m | ||
| Dimension | Φ42*64.65mm | ||
| Weight | 118g | ||
| Operating Temperature | -20~60? | ||
Further details
Downloads
Download the English brochure
