7-22mm lens 3MPX. DC-IRIS - F1.4. 1/2.7" CS. HFOV 43° ~ 14°

7-22mm lens 3MPX. DC-IRIS -  F1.4. 1/2.7" CS. HFOV 43° ~ 14°
SUPER-SALES -80%

Lens for CCTV Cameras. 7-22mm Focal Lenght, 3 Megapixel, CS-Mount, 1/2.7" Image Format, DC-Iris. IR Function. Video surveillance, Security. 7-22MPCSDC

Reference: 7-22MPCSDC

Brand: RICOM

EAN: 8056450373470

FIND INSTALLER

€12.20

€61.00 -80%
taxes included
Tax included
SAVE - CLICK HERE

  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity


LENS FOR CAMERAS - 7-22MM FOCAL LENGHT - CS MOUNT - IR FUNCTION - SETIK

Made by Ricom Lens for Cameras - Ricom
Focal Lenght: 7-22mm (3 Megapixel) - 1/2.7" Image Format
CS Mount - DC Iris IR Function
Click here to read the article about the lenses choice.

Product Details

  • Lens - Ricom
  • Focal length: 7-22mm
  • Reference: 7-22MPCSDC
  • Typology: MEGAPIXEL (3MPX)
  • CS-Mount
  • With: IR FUNCTION (For further information read the "Further details" tab)
  • Aperture (D/f): F.1/1.4

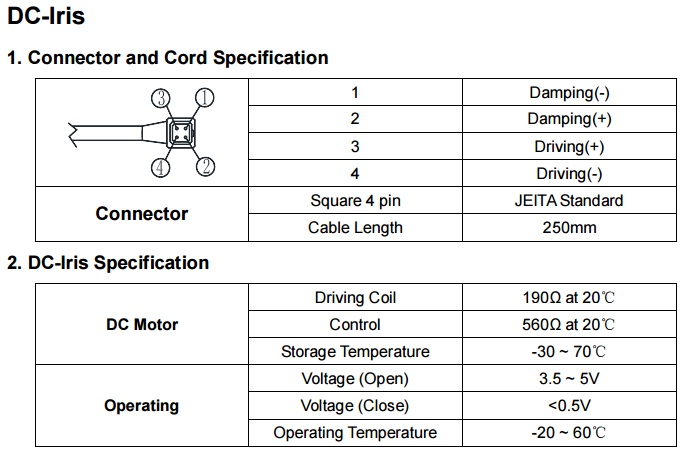

  • IRIS Typology: DC-IRIS
  • Weight: 39g ±4g
7-22MPCSDC by Ricom

Data Sheet

Model 7-22MPCSDC
Focal-Lenght (mm) 7-22mm
Aperture (D/f) F1.4
Mount Type CS
Image Format 1/2.7"
Horizontal Field 43° ~ 14°
M.O.D(m) 1m
Focus Manual
Zoom Manual
Iris Type DC-IRIS
Support Megapixel 3 Megapixel
TV Distortion -5% (wide)
Chief Ray Angle (Max) <11°
Operating Temperature -20℃ ~ 60℃
Weight 39g ±4g
Garanzia 24 Mesi Italiana

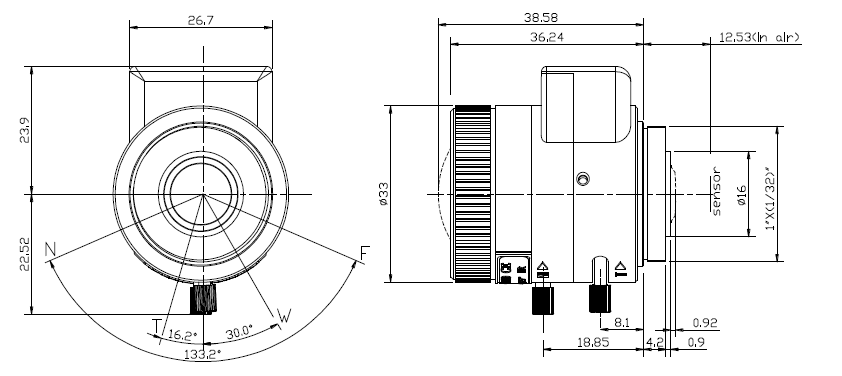

7-22MPCSDC scheme
Note: the information included in the chart could not be updated. In case of necessity, ask us for confirmation.

Further Details

LENSES FEATURES

WITH IR CUT FILTER
WITH IR FUNCTION
WITHOUT IR FUNCTION
Day images improved and more realistic but impossibility to see anything in night time Black and white images in night time Full colour images in night time but without IR illuminator
Tabella con specifiche ottica 7-22

Download

Download the English Leaflet
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
