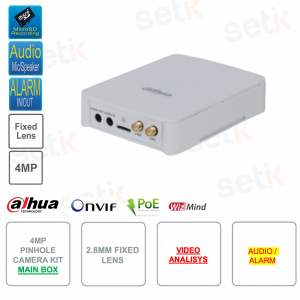

Main Box for Pinhole Network Camera Kit - IP POE ONVIF® - 4MP - 2.8mm Lens - Video Analysis

Room

Image Sensor

1/2.7" CMOS

Max.Resolution

2592(H)×1944(V)

ROM

128MB

RAM

1GB

Scanning System

Progressives

Electronic Shutter Speed

Auto/Manual 1/3s–1/100,000s

Min Illumination

0.005 lux@F2.0 (Color,30IRE)

0.0005 lux@F2.0 (B/W,30IRE)

S/N Ratio

> 56dB

lens

LensType

Fixed-focal

Lens mount

M12

Focal Length

2.8mm

Max. Openings

F2.0

Iris Control

Fixed

Close Focus Distance

0.5m

Intelligence

IVS (Perimeter Protection)

Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection.

Object Monitoring

Abandoned object, missing object

Face Detection

face detection; track; snapshots; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attribute extraction including 6 attributes (gender, age, glasses, expressions, mask and beard) and 8 expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear); face snapshot set as face or one-inch photo; 3 snapshot strategies (real-time snapshot, optimization snapshot, and quality priority); face angle filter; optimization time setting

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codecs

Smart H.265+
Smart H.264+

Video Frame Rate

Main stream: 2592 × 1944 @(1–20 fps ), 2688 × 1520 @(1–25/30 fps )

sub stream: 704 × 576 @(1–25 fps)/704 × 480 @ (1–30 fps)

Stream Capability

2 streams

Resolution

5M (2592×1944); 4M (2688×1520); 3.6M (2560×1440); 3M (2048×1536); 1080p (1920×1080); 1.3M (1280×960); 720p (1280×720); D1 (704×576/704×480); CIF (352×288/352×240); VGA (640×480)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3kbps–20480kbps
H.265: 3kbps–20480kbps

Day/Night

Color/B/W

BLC extension

Yes

HLC extension

Yes

wdr extension

dwdr extension

Scene Self-adaptation

Yes

White Balance

Car; natural; street lamp; outdoors; manual; regional custom

Gain Control

Manual; car

Noise reduction

3D NO

motion detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

defog

Yes

Image Rotation

0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower)

Mirrors

Yes

Privacy Masking

8 areas

Audio

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

alarm

Alarm Event

No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, tripwire, intrusion, fast moving, missing object, abandoned object, parking detection, loitering detection, people gathering; scene changing, audio detection, voltage detection, external alarm, face detection, and security exception

Network

Network Port

RJ-45 (10/100Base-T)

SDKs and APIs

Yes

NetworkProtocol

IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; smtp; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability

ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestone; genete

User/Host

20 (Total bandwidth: 64M)

Storage

FTP; SFTP; Micro SD card (support max. 256G); NOS

Browsers

IE: IE8, IE9, and IE11
Chrome
firefox

management software

Smart PSS; DSS; DMSS extension

Mobile Clients

iOS; android

Cyber Security

video encryption; Firmware encryption; configuration encryption; digests; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and import of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

FCC:47 CFR FCC Part 15, Subpart B

Port

Audio inputs

1 channel (3.5mm JACK port)

Audio Outputs

1 channel (3.5mm JACK port)

Alarm Inputs

2 channels in: 5mA 3-5VDC

Alarm Output

2 channels out: 1,000mA 30VDC/500mA 50VDC

Power

Power Supply

12VDC/PoE(802.3af)

power consumption

Basic: 3.2W (12VDC); 5.1W (PoE)
Max. (Max. Resolution+ Intelligence): 4.7 W (12 VDC); 7.2W (PoE)

environment

Operating Temperature

–40°C to +60°C (–40°F to 140°F)

Operating Humidity

≤ 95%

Storage Temperatures

–40°C to +60°C (–40°F to 140°F)

Protection

IP66 (L3)

structure

Casing

Metal

Product Dimensions

110mm × 83mm × 24mm (4.33" × 3.27" × 0.94")

Net Weight

210g (0.5lb)

Gross Weight

376g (0.8lb)

The Pinhole camera has a resolution of 4Megapixel in real time!

1/2.7" 4MP progressive scan CMOS sensor.

Resolutions Supported:

• 4M (2688×1520);
• 3.6M (2056×1440);
• 3M (2304×1296);
• 1080p (1920×1080);
• 1.3M (1280×960);
• 720p (1280×720);
• D1 (704×576/704×480);
• VGA (640×480);
• CIF (352×288/352×240)

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

INTELLIGENT FUNCTIONS

This camera has smart features:

- IVS perimeter protection
- Face detection
- Smart search
- Abandoned and lost items

BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations

Protection level IP67 ( Dust / Immersion )

Ideal solution for outdoor use.
