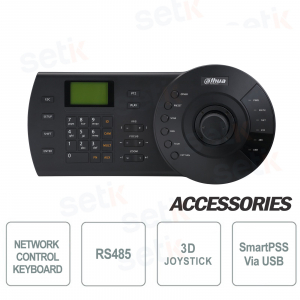

Dahua RS485 IP network control keyboard for the control and programming of Dahua PTZ cameras DH-SD series, Standalone DVR and DNH-SD (IP). LCD display, RS485, RS422, USB, Joystick 3D, Connection to SmartPSS via USB. NKB1000-E
FIND INSTALLER
https://www.setik.biz/en/video-accessories/8066-dahua-nkb1000-e-keyboard-ptz-dahua-control-ip-rs485.html
€310.00
€738.10 -58%
taxes included
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
DAHUA PTZ KEYBOARD FOR IP CONTROL RS485 SPEED DOME - ELECTROMECHANICAL KEYS
Keyboard Dahua keyboardUseful for controlling and managing Dahua PTZ Speed Dome (DH-SD / DNH-SD) and standalone DVR.
RS485 - RS422 - RS232 - Joystick 3D - Connection to SmartPSS via USB
LCD display - Network Video Server - RJ45 - USB
Product details
- IP network control keyboard - Dahua
- Management and control of: Dahua Standalone DVR - Dahua IP Speed Dome - Dahua Speed Dome
- Network Video Server
- RS485, RS422, USB, RS232 and network
- 3D joystick for controlling PTZ functions
- Connection to SmartPSS and DSS via USB
- Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Control
- OSD Menu and user suggestions
Data sheet
| Model | NKB1000-E |
| General | |
| Keyboard Key Panel | Electromechanical |
| Joystick | 3-axis, vector-solving, with twisting, return to-center head |
| Keyboard Connector | RJ-45, RS232, RS485, RS422 (Reserved), USB |
| Keyboard Communication | Direct Mode, Network Mode |
| Direct Mode | Interface: 1 RS232 / 2 RS485 DVR Protocol: DH-2 Dome Protocol: DH-SD1 / PELCO-D / PELCO-P, etc |
| Network Mode | Interface: RJ45 DVR / Network Dome: IP Address / Port / Protocol |
| Display | LCD, 75.2mm × 33.85mm |
| Maximum Number of Users | 64 (including "admin") |
| Max RS485 Addresses (Each User) | 256 |
| Max Number of PTZ (IPC) That Can be Added over Network (Each User) | 2048 |
| Environmental | |
| Power Supply | Power adapter, input 100V ~ 240V 50Hz / 60Hz, output DC12V / 1000mA |
| Power Consumption | 5W |
| Working Temperature | -10 ℃ ~ + 55 ℃ |
| Working Humidity | 10% ~ 90% |
| Atmosphere Pressure | 86kpa ~ 106kpa |

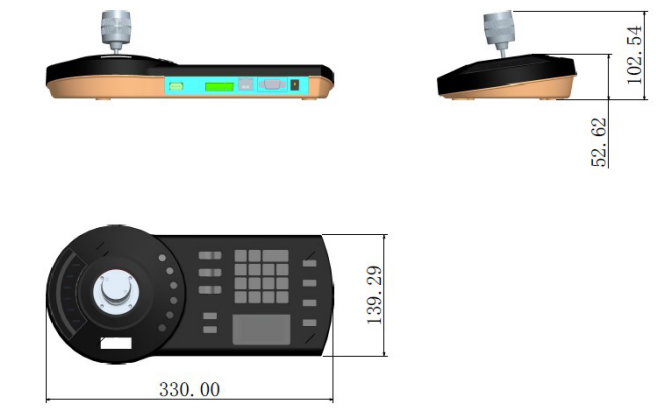

| Dimension | 330mm × 160 (140) mm × 37.5 (21) mm (W × D × H) (height: 100mm including joystick) |
| Weight | 1.3kg (Including package) |
Further details
Download
Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
