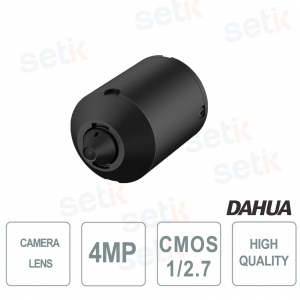

PINHOLE LENS FOR 2.8MM MINI CAMERAS - CMOS 1 / 2.7 "4MP - DAHUA

Dahua Technology Lens for mini cameras - Dahua
4Megapixel - 2.8mm Pinhole lens - 1 / 2.7 "sensor - Quality product

Product details

  • Objective - Dahua
  • 1 / 2.7 "sensor
  • 4Megapixel
  • Pinhole lens 2.8mm
  • Compatible with IPC-HUM8431-E1 and many others
  • Dimension: Φ31mm × 49mm
Lente Dahua 2Megapixel

Data sheet

Model IPC-HUM8441-L1
Image Sensor 1 / 2.7 "CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM / RAM 128 MB / 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto / Manual 1/3 s – 1 / 100,000 s
Min. Illumination 0.005 Lux@F2.0 (Color, 30 IRE)
0.0005 Lux@F2.0 (B / W, 30 IRE)
S / N Ratio > 56 dB
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length M12
Max. Aperture 2.8 mm
Field of View Horizontal: 101 °;
Vertical: 57 °;
Diagonal: 115 °
Iris Control Fixed
Close Focus Distance 0.8 m
Certifications
Certifications CE (EN 60950: 2000)
UL: UL60950-1
FCC: FCC Part 15 Subpart B
Environmental
Operating Conditions –40 ° C to + 60 ° C (–40 ° F to 140 ° F)
Operating Humidity ≤95%
Storage Temperature –40 ° C to + 60 ° C (–40 ° F to 140 ° F)
Construction
Casing Metal
Dimensions Ф30.5 mm × 48.7 mm (Ф1.20 "× 1.92")
Net Weight 210 g (0.5 lb)
Gross Weight 376 g (0.8 lb)

Further details

Schema dimensioni IPC-HUM8441-L1

Download

Download English Brochure (Currently not available)
