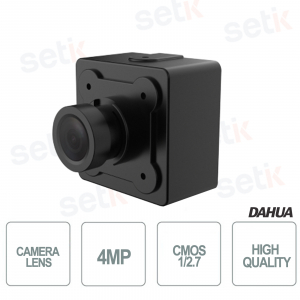

4 Megapixel 2.8mm Cylindrical Pinhole Lens

4 Megapixel 2.8mm Cylindrical Pinhole Lens
-58%

Dahua Cylindrical Pinhole Optics IPC-HUM8441-L5 for mini IP cameras, 2.8mm lens, CMOS 1 / 2.7 " 4MP Dahua Technology



Reference: IPC-HUM8441-L5

Brand: Dahua

FIND INSTALLER

€150.13

€357.46 -58%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


CYLINDRICAL PINHOLE OPTICS FOR MINI IP CAMERAS 2.8MM - CMOS 1 / 2.7 "4MP - DAHUA

Dahua Technology Pinhole cylindrical optic for mini IP cameras - Dahua
4Megapixel - 2.8mm lens - 1 / 2.7 "sensor - Supports Face Detection, Perimeter Protection - Quality product

Product details

  • Objective - Dahua
  • 1 / 2.7 "sensor
  • 4Megapixel
  • Conical Pinhole Lens 2.8mm
  • Dimension: 35mm × 35mm × 28.4mm (1.38 "× 1.38" × 1.12 ")
  • Gross Weight: 376G
  • Net Weight: 210G
Lente Dahua 4 Megapixel

Data sheet

Model IPC-HUM8441-L5
Image Sensor 1 / 2.7 "CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 128 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto / Manual 1/3 s – 1 / 100,000 s
Min. Illumination 0.005 Lux@F2.0 (Color, 30 IRE)
0.0005 Lux@F2.0 (B / W, 30 IRE)
S / N Ratio > 56 dB
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm
Max. Aperture F2.0
Field of View Horizontal: 105 °;
Vertical: 56 °;
Diagonal: 122 °
Iris Control Fixed
Close Focus Distance 0.8 m
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265 +
Smart H.264 +
Video Frame Rate Main stream: 2688 × 1520 @ 25/30 fps
Sub stream: 704 × 576 @ 25 fps; 704 × 480 @ 30 fps
Third stream: 1920 × 1080 @ 25/30 fps
Stream Capability 3 streams
Resolution 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)
Bit Rate Control CBR / VBR
Video Bit Rate H.264: 3 kbps – 20480 kbps
H.265: 3 kbps – 20480 kbps
Day / Night Color / B / W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Manual; car
Noise Reduction 3D NR
Motion Detection OFF / ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
Image Rotation 0 ° / 90 ° / 180 ° / 270 ° (Support 90 ° / 270 ° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Environmental
Operating Conditions –40 ° C to + 60 ° C (–40 ° F to 140 ° F)
Strorage Conditions –40 ° C to + 60 ° C (–40 ° F to 140 ° F)
Operating Humidity ≤95%
Construction
Casing Metal
Dimensions 35 mm × 35 mm × 26.7 mm (1.38 "× 1.38" × 1.05 ")
Net Weight 210 g (0.5 lb)
Gross Weight 376 g (0.8 lb)

Further details

Schema dimensioni IPC-HUM8441-L3

Download

Download Brochure (Currently not available)

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
