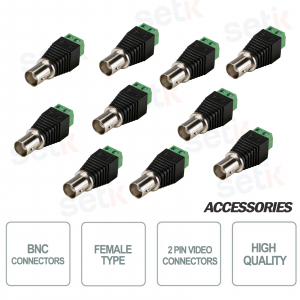

10XJACK-BNCF Setik Connectors 10 Pieces from BNC female to terminal block. Useful for connecting CCTV surveillance cameras to coaxial cables. 2-wire terminal block arrangement. Perfect for replacing damaged connectors, no need to solder or use crimping pliers. Compact and portable for quick installation of security systems
Reference: 10XJACK-BNCF
Brand: Setik
EAN: 8056450373241
FIND INSTALLER
Quantity discount:
from 5
to ∞
:
9,82 €
(-10%)
from 3
to 4
:
10,37 €
(-5%)
from 1
to 2
:
10,91 €
https://www.setik.biz/en/video-accessories/7045-setik-10xjack-bncf-10x-video-connectors-female-jack-bnc-for-cctv-cctv.html
€10.91
€18.18 -40%
taxes included
discover the available quantity
10X FEMALE POWER CONNECTORS - SETIK
Connectors - Female - SetikPack of 10 pieces
Product excluded from warranty
Product details
- Power Connectors - Female - Setik
- One pack contains: 10 pieces
- Product excluded from warranty
Data sheet
| Model | 10XJACK-BNCF |
| Impedance | 50Ω, 75Ω |
| Resistance | Inner conductor ≤2.0mΩ |
| Contact Resistance | center conductor≤1.5mΩ; outer conductor ≤1mΩ |
| Insulation Resistance | ≥5000MΩ |
| Frequency Range | 0 ~ 3GHZ |
| Disengage Force | ≥0.6N |
| Attenuation | 0.5dB type |
| Wire Type | coaxial cable |
| DC Loop Resistance | 52 ohms for 1,000 ft |
| Withstand Voltage | 1500V rms |
| Frequency Response | DC to 8 MHz |
| Working Temperature | -10 ° C to + 70 ° C |
| Humidity | 0 to 95% |
Further details
 |
Components which by their nature or due to normal wear, tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
