Lens for video surveillance cameras - 16-40mm motorized lens - 12 Megapixel - IR correction - Designed for operation in low light environments - 1.1 '' image sensor - Type C mount - Wide aperture F1.4 - Motorized control of the zoom and focus.
FIND INSTALLER

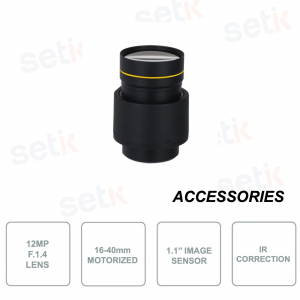

CAMERA LENS - 16-40mm MOTORIZED LENS - 12MPX - IR CORRECTION - DAHUA - PFL1640-L12PE
Lens for video surveillance cameras - Dahua - PFL1640-L12PE
12Megapixel - 16-40MM motorized lens - 1/1 "sensor - C mount
IR correction - Motorized zoom - Motorized focus - Quality product - Made of metal - Black color - Ideal for use in video surveillance systems operating in low light contexts, for face capture and for image acquisition with high definition at night - P-Iris Control - Weight: 0.709 ± 0.005 kg - Product dimensions: Ø66 mm × 112.4 mm
Product details
- Lens - Dahua - PFL1640-L12PE
- 1/1 "sensor
- 12Megapixel
- Total Focal Length: 16-40mm
- Opening: F1.4
- Ideal for face capture in low light conditions
- Attack C.
- IR correction, ideal for high definition shots in night contexts
- Material: metal
- Black colour
- Supported operating temperature: –30 ° C to + 70 ° C
- Product net weight: 0.709 ± 0.005 kg
- Product size: Ø66mm × 112.4mm
Data sheet
|
Technical Speci? Cation |
|
|
General |
|
|
Image Sensor Size |
1.1 " |
|
Focal Length |
16 mm – 40 mm |
|
Pixel |
12MP |
|
Max. Aperture |
F1.4 |
|
IR Correction |
Yes |
|
Chief Ray Angle (CRA) |
<7.5 ° (W) & (T) |
|
Total Optical Length |
130 mm |
|
Flange Back Focal Length |
17.5 mm |
|
Mechanical Back Focal Length. |
11.61 mm |
|
Field of View |
1.1 ": W: 60.3 ° × 50.1 ° × 34.4 ° T: 25.3 ° × 21.2 ° × 14.7 ° @ 17.55 mm × 14.4 7mm × 9.936 mm (Diagonal × Horizontal × Vertical) 1 ": W: 55.7 ° × 49 ° × 25.9 ° T: 23.5 ° × 20.7 ° × 11.1°@16.1 mm × 14.13 mm × 7.45 mm (Diagonal × Horizontal × Vertical) |
|
Distortion |
–9% (W) –1.2% (T) |
|
Minimum Object Distance (MOD) |
1.5 m (4.92 ft) (W) -2.5 m (8.20 ft) (T) |
|
Zoom Control |
Motorized |
|
Focus Control |
Motorized |
|
Iris Control |
P-iris |
|
Mount Type |
C mount |
|

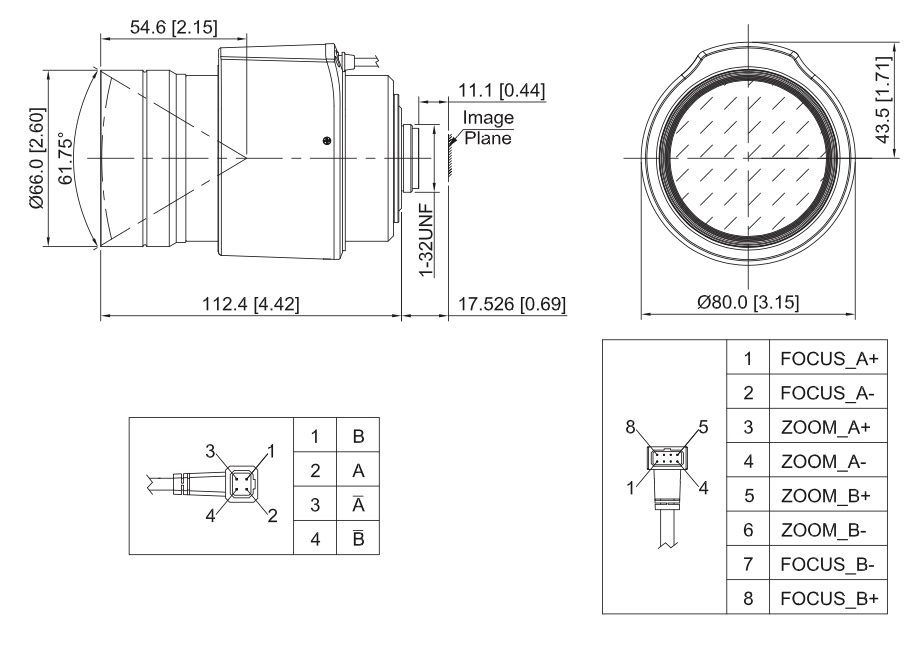

Product Dimensions |
Ø66 mm × 112.4 mm (Ø2.60 "× 4.43") |
|
Color |
Black |
|
Casing |
Metal |
|
Net Weight |
0.709 ± 0.005 kg (1.56 ± 0.01 lb) |
|
Gross Weight |
0.815 ± 0.005 kg (1.80 ± 0.01 lb) |
|
Packaging Dimensions |
615 mm × 345 mm × 250 mm (24.21 "× 13.58" × 9.84 ") (L × W × H) |
|
Operating Temperature |
–30 ° C to + 70 ° C (–22 ° F to + 158 ° F) |
|
Operating Humidity |
≤95% (RH) |
|
Storage Te mperature |
–40 ° C to + 70 ° C (–40 ° F to 158 ° F) |
|
Storage Humidity |
≤95% (RH) |
Further details
Download
Download English brochure
