Dahua video distributor and amplifier, 1 input and 2 outputs for HDCVI / TVI / AHD / CVBS signals, Supports 4K! Quality product. CD102HD
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!

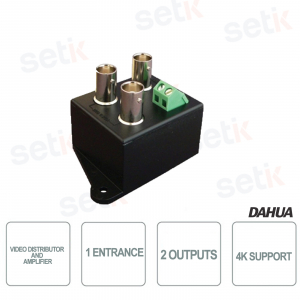

VIDEO DISTRIBUTOR AND AMPLIFIER - FOR HDCVI / TVI / AHD / CVBS SIGNALS - SUPPORT 4K! - DAHUA
DESCRIPTION:
Dahua's CD102HD distributor is one of the best distributors on the market.
Quality product. Dahua Technology
Product Details:
|
Data sheet
| Model | CD102HD |
| Video Input Channel | BNC x 1 |
| Video Output Channel | BNC x 2 |
| Video Input Level | 0.8 ~ 1.2Vp-p, 75 Ohms |
| Video Output Level | 1Vp-p (Standard), 75 Ohms |
| Video Bandwidth | 350 MHz -3dB |
| Power Supply | DC12V 500mA |
| Power Consumption | 160mA |
| Temperatures | 0 to 55 ℃, Storage: -20 to 85 ℃, Humidity: up to 95% |
| Dimension W x H x D mm | 57.8 × 49.2 × 41.7 |
| Weight | 70 |
Further details
No additional details availableDownload
- CD102HD (Currently not available)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
