NVR Hikvision DS-6904UDI 72 Channels up to 24MP 24 Megapixel 4K ULTRA-HD , H.265 + / H.265 / H.264 / H.264 +, HDMI 4K (adaptable to DVI-I), BNC, 4 audio outputs , RJ45 10/100/1000 Mbps Ethernet network card, 100 base-FX / 1000 base-X optical interface



Reference: DS-6904UDI

Brand: Hikvision

EAN: 6954273636517

FIND INSTALLER



Made by Hikvision

DS-6904UDI | NVR HIKVISION 72 CHANNELS 24MP - H.265 + - AUDIO OUT
Nvr Hikvision DS-6904UDI 72 Channels
Resolution: 24MP 4K ULTRA-HD 24Megapixel - 72 channels - 4x HDMI 4K (adaptable to DVI-I) - 2x BNC
4 audio outputs - RJ.45 interface + optical interface + RS-232, RS-485
24 months warranty

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD technology 4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K correspond to the resolution of 4 Full-HD, so 3840 X 2160!
The new generation of equipment, in fact, allows the support of cameras up to 24MPX on H265 + standard, the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to display (on a 4K monitor) the image in its maximum detail.



72 CHANNELS:

72 Channels up to 24 MEGAPIXELS 4K ULTRA-HD 24 Megapixel
Recording resolution: 24MP / 12MP / 8MP / 5MP / 3MP / 1080p

4K ULTRA-HD RESOLUTION:

ULTRA HD 4K technology!
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.

VIDEO COMPRESSION:

This NVR supports video compression in H.265 + / H.265, H.264 + / H.264, Hik264, MPEG4 and MJPEG.

RJ45 and optical interface:

RJ45 interface × 1, 10/100/1000 Mbps adaptive and optical interface × 1, 100 base-FX / 1000 base-X

Audio:

This NVR has 4 audio outputs

Data sheet

DS-6904UDI
Video / Audio Input
Input HDMI × 4 (adaptable to DVI-I), BNC × 2
Input Resolution 4K: 3840 × 2160 @ 30Hz (only for HDMI), 1080p: 1920 × 1080 @ 50 / 60Hz, 720p: 1280 × 720 @ 50Hz / 60Hz
Output HDMI × 4, BNC × 2
Output Resolution HDMI:
4K: 3840 × 2160 @ 30Hz (only for odd interface), 1080p: 1920 × 1080 @ 50 / 60Hz, 720p: 1280 × 720 @ 50Hz / 60Hz
BNC:
PAL: 704 × 576, NTSC: 704 × 480
Decoding
Decoding Resolution Up to 24MP (only for 3 encoder tracks mode)
Decoding Channel 72-ch
Decoding Capability 24MP @ 30fps: 2-ch,
12MP @ 20fps: 4-ch,
8MP @ 30fps: 8-ch,
5MP @ 30fps: 12-ch,
3MP @ 30fps: 20-ch,
1080p: 36-ch
720p: 72-ch
Split Screen 1/2/4/6/8/9/12/16/25/36
Interface
Network Interface

RJ45 interface × 1, 10/100/1000 Mbps adaptive
Optic interface × 1, 100 base-FX / 1000 base-X
An RJ45 interface and an optic interface form a combo.

Serial Interface

RS-232 (RJ45) × 1, RS-485 × 1

Audio output

4

Audio compression G.722, G711A, G726, G711U, MPEG2-L2, and AAC audio compression.
General
Power Supply 220 VAC
Power Consumption ≤ 70 W

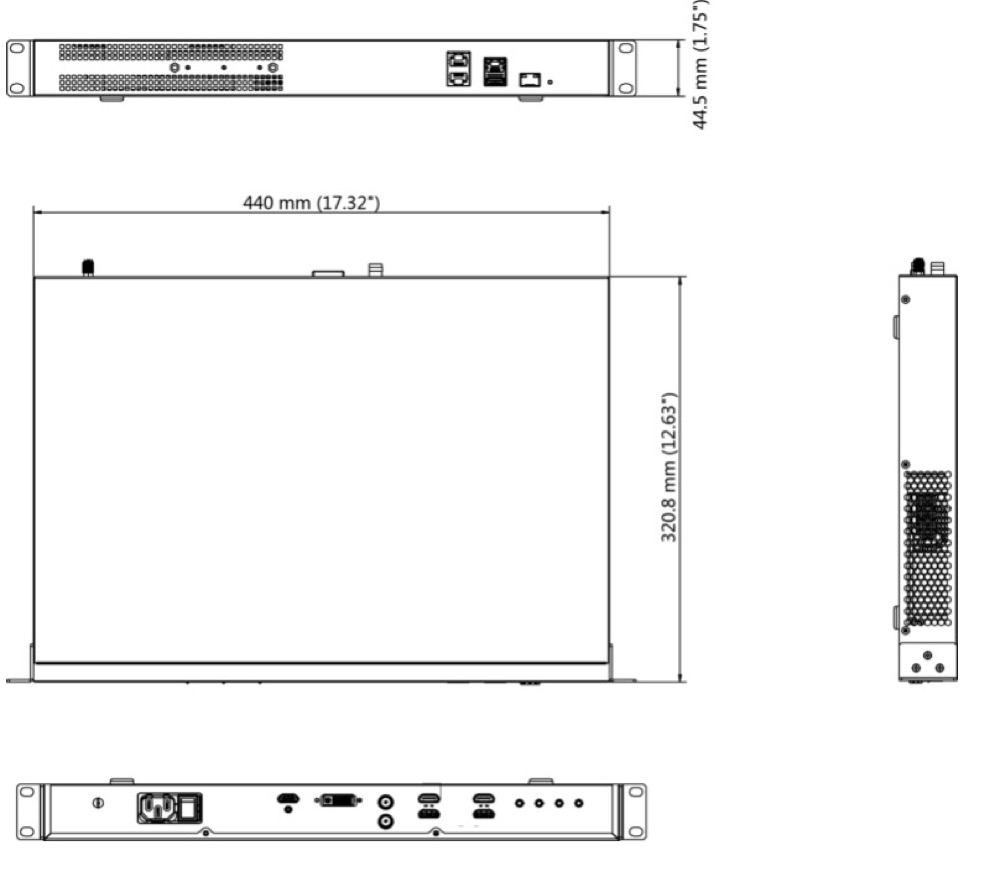

Dimensions (W × D × H) 440 mm × 320.8 mm × 44.5 mm (17.32 inch × 12.63 inch × 1.75 inch)
Working Temperature -10 ° C to 55 ° C (14 ° F to 131 ° F)
Working Humidity 10% to 90%
Weight ≤ 5.2 kg (11.46 lb)

Further details

DS-9664NI-I8

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
