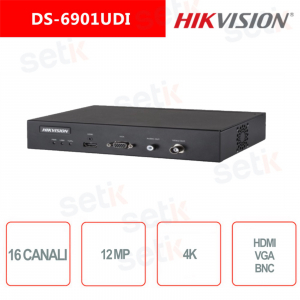

NVR Hikvision 16 Channels 12MP 4K ultra hd audio alarm

NVR Hikvision 16 Channels 12MP 4K ultra hd audio alarm
QUESTIONS ABOUT THE PRODUCT

 
-35%

NVR Hikvision DS-6901UDI 16 Channels up to 12MP 12 Megapixel 4K ULTRA-HD , H.265 + / H.265 / H.264 / H.264 +, HDMI (4K), VGA, BNC, 1 two-way audio output , 8 inputs + 8 alarm outputs, 10/100/1000 Mbps Ethernet network card.



Reference: DS-6901UDI

Brand: Hikvision

EAN: 6954273635084

FIND INSTALLER



DS-6901UDI | NVR HIKVISION 16 CHANNELS 12MP - H.265 + - AUDIO ALARM

Made by Hikvision
Nvr Hikvision DS-6901UDI  16 Channels
Resolution: 12MP 4K ULTRA-HD 12Megapixel - 16 channels - 1 HDMI (4K) - 1 VGA
1 Two-way audio output - 8 Alarm inputs + 8 Alarm output - 24 months warranty
4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD technology 4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K correspond to the resolution of 4 Full-HD, so 3840 X 2160!
The new generation of equipment, in fact, allows the support of cameras up to 12MPX on H265 + standard, the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to display (on a 4K monitor) the image in its maximum detail.



DS-7600NI-I2

16 CHANNELS:

16 Channels up to 12 MEGAPIXELS 4K ULTRA-HD 12 Megapixel
Recording resolution: MP12MP / 8MP / 5MP / 3MP / 1080p

4K ULTRA-HD RESOLUTION:

ULTRA HD 4K technology!
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.

VIDEO COMPRESSION:

This NVR supports video compression in H.265 + / H.265, H.264 + / H.264, Hik264, MPEG4 and MJPEG.

RJ45 / RS-232:

1x RJ-45 + 1x RS-232 - 10/100/1000 Mbps self-adaptive Ethernet interface

HDMI (up to 4k!), VGA and BNC output:

Present 1 HDMI output with resolution up to 4K ULTRA-HD and 1 VGA output up to 1080p over with 1 BNC output.


Audio and Alarm:

This NVR features 1 two-way audio output , 8 inputs + 8 alarm output

Data sheet

DS-6901UDI
Video / Audio Input
Output HDMI × 1, VGA × 1, BNC × 1
Output Resolution HDMI:
4K: 3840 × 2160 @ 30Hz (for odd interface only), 1080p: 1920 × 1080 @ 50 / 60Hz, 720p: 1280 × 720 @ 50Hz / 60Hz
BNC:
PAL: 704 × 576, NTSC: 704 × 480
Decoding
Decoding Resolution Up to 12MP
Decoding Channel 16-ch
Decoding Capability 24MP @ 30fps: 1-ch, 12MP @ 20fps: 2-ch, 8MP @ 30fps: 4-ch, 5MP @ 30fps: 6-ch, 3MP @ 30fps: 10-ch, 1080p @ 30fps: 16-ch,
Split Screen 1/4/6/8/9/12/16

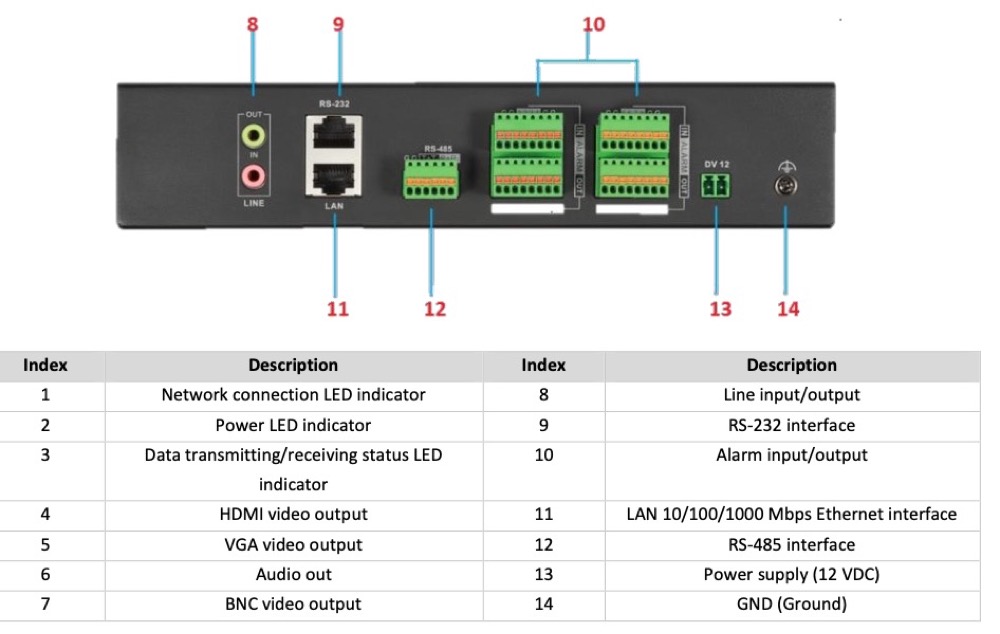

Interface
Network Interface

1 (10/100/1000 Mbps self-adaptive Ethernet interface)

Two-Way Audio Out

1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)

Serial Interface

RS-232 (RJ45) × 1, RS-485 × 1

Two-Way Audio In

1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)

Audio output

1

Alarm In 8
Alarm Out 8
Audio compression G.722, G711A, G726, G711U, MPEG2-L2, and AAC audio compression.
Encapsulation formats PS, RTP, TS, ES, HIK
General
Power Supply 12 VDC
Power Consumption ≤ 15 W
Dimensions (W × D × H) 220 mm × 148 mm × 45 mm (8.66 inch × 5.83 inch × 1.77 inch)
Working Temperature -10 ° C to 55 ° C (14 ° F to 131 ° F)
Working Humidity 10% to 90%
Weight ≤ 1.12 kg (2.47 lb)

Further details

DS-6901UDI

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
