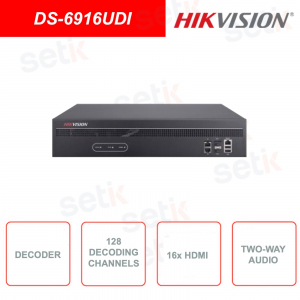

DS-6916UDI - HIKVISION - Decoder 128 Channels - up to 4K - 8 channels to 24MP - Two-way audio

DS-6916UDI - HIKVISION - Decoder 128 Channels - up to 4K - 8 channels to 24MP - Two-way audio
-35%

Decoder Hikvision DS-6916UDI resolution up to 4K, 128 channels, up to 8 channels at a resolution of 24MP, H.265 + video compression, VGA and DVI video interface, support for multi-screen control, 16xHDMI, USB 2.0 (2x) product accessible from thermal network camera and 2.4MP DeepIn View camera, bi-directional audio, 8 inputs and 8 alarm outputs, RS-232 (RJ45), RS-485. Ideal for use in video surveillance systems.



Reference: DS-6916UDI

Brand: Hikvision

EAN: 6954273635114

FIND INSTALLER

€5,621.58

€8,648.58 -35%
taxes included
Tax included
 Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%




DS-6916UDI | HIKVISION DECODER - 128 CHANNELS - UP TO 4K - UP TO 8 CHANNELS AT 24MP - BIDIRECTIONAL AUDIO - RJ45 - ALARM


Hikvision DS-6916UDI decoder , 128 channels and resolution up to 4K - 8 channels at 24MP - DVI and VGA video interface - HDMI (16x) and BNC output - Bi-directional audio - 8 alarm inputs - 8 alarm outputs - 16 audio outputs - Video compression H.265 + for the optimization of digital storage space - Compatible with 2.4MP Network and DeepIn View series thermal cameras - 2xUSB 2.0 - Ideal for video surveillance systems.
24 months warranty
4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD technology 4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K correspond to the resolution of 4 Full-HD, so 3840 X 2160!
Already used in the consumer electronics sector, it is finally arriving in the world of security. The new generation of DAHUA devices, in fact, allows the support of cameras up to 12MPX on H265 + standard, the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to display (on a 4K monitor) the image in its maximum detail.



128 CHANNELS:

128 Channels up to 4K ULTRA-HD at 30 frames per second 30fps.
Up to 8 channels at 24MP resolution!

4K ULTRA-HD RESOLUTION:

ULTRA HD 4K technology!
Higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.

VIDEO COMPRESSION:

This decoder supports video compression in H.264 and also in the new H.265 + standard for optimizing video storage space.

VCA (VIDEO ANALYSIS):
It supports video analysis functions with Hikvision cameras

RJ45:

2x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Alarm:

This device features alarm with 8 input channels and 8 output channels.

HDMI (up to 4k!) And VGA / DVI (full-hd) output:

There are 16 HDMI outputs with resolution up to 4K ULTRA-HD, 1 VGA output and 1 DVI output up to 1080p!


USB:

Front panel: 2 × USB 2.0

Audio and Alarm:

This decoder features 1x two-way audio , 8 inputs + 8 alarm outputs, 16 audio outputs (DB15x2)

Data sheet

DS-6916UDI
Input / Output
Input

VGA, DVI-I

Input Resolution

VGA, DVI-I: 1080p: 1920 × 1080 @ 50 / 60Hz, 720p: 1280 × 720 @ 50Hz / 60Hz

Output

HDMI × 16, BNC × 8 (DB15 × 2)

Output Resolution

HDMI:
4K: 3840 × 2160 @ 30Hz (for odd interface only), 1080p: 1920 × 1080 @ 50 / 60Hz, 720p: 1280 × 720 @ 50Hz / 60Hz
BNC:
PAL: 704 × 576, NTSC: 704 × 480

Decoding
Decoding Resolution

Up to 24MP (only for 3 encoder tracks mode)

Decoding Channel

128-ch

Decoding Capability

24MP @ 30fps: 8-ch,
12MP @ 20fps: 16-ch,
8MP @ 30fps: 32-ch,
5MP @ 30fps: 48-ch,
3MP @ 30fps: 80-ch,
1080p @ 30fps / 3 Mbps: 128-ch

Split Screen

1/4/6/8/9/12/16/25/36

Interface
Network Interface

2 (10/100/1000 Mbps Ethernet interface)

Serial Interface

RS-232 (RJ45) × 1, RS-485 × 1

Audio Output

16 (DB15 × 2)

Two-Way Audio Out

1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)

Alarm In

8

Two-Way Audio In

1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)

Alarm Out

8

General
Power Supply

100 to 240 VAC

Power Consumption

≤ 108 W

Dimensions

440 mm × 321 mm × 88 mm (17.32 inch × 12.64 inch × 3.46 inch)

Working Temperature

-10 ° C to 55 ° C (14 ° F to 131 ° F)

Working Humidity

10% to 90%

Weight

≤ 6.4 kg (14.11 lb)

Further details

scheme

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
