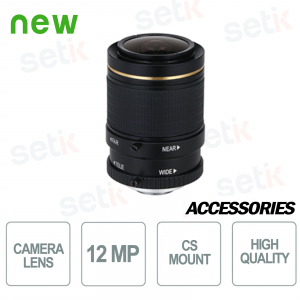

Obbiettivo varifocale manuale per telecamere di sorveglianza 12MP 1/1.7" 3.7-16mm, Correzione IR - Dahua

Obbiettivo varifocale manuale per telecamere di sorveglianza 12MP 1/1.7" 3.7-16mm, Correzione IR - Dahua
-57%

Obbiettivo varifocale manuale per telecamere da sorveglianza 3.7-16mm, 12 Megapixel, Attacco CS. 1/1.7" P-iride, Zoom Manuale, Focus Manuale. Dahua Technology PLZ20C0-P



Reference: PLZ20C0-P

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

OBIETTIVO / LENTE PER TELECAMERE - 3.7-16MM CS 12MP - DAHUA

Dahua Technology
Obiettivo varifocale manuale per telecamere - Dahua
12Megapixel 3.7-16 mm - Sensore 1/1.7" - Attacco CS
Pi-iride - Zoom manuale - Messa a fuoco manuale
Correzione messa a fuoco IR - Prodotto di qualità

Dettagli prodotto

  • Obiettivo - Dahua
  • Sensore 1/1.7"
  • 12Megapixel
  • Lughezza Focale: 3.7-16mm
  • Attacco CS
  • Correzione Messa a fuoco IR
  • Dimensione: Ø54 x 87,35 mm
  • Peso: 0,27 kg
Lente Dahua 12Megapixel Focale 3.7-16mm

Scheda tecnica

Model PLZ20C0-P
Performance
Image Sensor Size 1/1.7”
Focal-Lenght  3.7 mm–16 mm
Pixel 12MP
Max. Aperture F1.5
IR Correction Yes
Chief Ray Angle (CRA) 11° (W)–9° (T)
Total Optical Length 95.35 mm (3.75")
Flange Back Focal Length 12.5 mm (0.49")
Mechanical Back Focal Length 7.45 mm (0.29")
Field of View 1/1.7":
W: 146° × 109° × 79° (Diagonal × Horizontal × Vertical)
T: 36° × 29° × 22° (Diagonal × Horizontal × Vertical)
1/1.8":
W: 136° × 114° × 61° (Diagonal × Horizontal × Vertical)
T: 34° × 30° × 17° (Diagonal × Horizontal × Vertical)
Distortion –28.8%W to –2.5%T (1/1.7")
–27.1%W to –2.3%T (1/1.8")
Minimum Object Distance (MOD) 0.5 m (1.64 ft)
Lens Control
Zoom

Manual

Focus

Manual

Iris

P-iris

Mount
Mount Type

CS mount

General
Product Dimensions Ø54.0 mm × 87.35 mm (Φ2.13" × 3.44")
Color Black
Casing Metal
Net Weight 0.27 kg (0.60 lb)
Gross Weight 0.33 kg (0.73 lb)
Packaging Method 40 pcs in each carton
Packaging Dimensions Inner carton: 126.0 mm × 87.0 mm × 78.0 mm
(4.96" × 3.42" ×3.07") (L × W × H)
Environment
Operating Temperature –30°C to +70°C (–22°F to +158°F)
Operating Humidity 10%-95% (RH)
Storage Temperature –30°C to +70°C (–22°F to +158°F)
Storage Humidity 10%-95% (RH)
