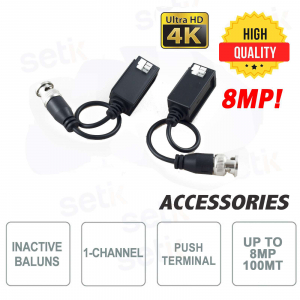

Pair of Passive Video Baluns similar to Dahua PFM800-4K / PFM800B-4K High Quality 1 Channel . Compatible Video Formats HDCVI / HDTVI and AHD, resolution up to 4K ULTRA-HD 8Megapixel up to 100MT! Possibility to connect two or more baluns together , Push Terminal and high Anti-Interference . TVS for overload protection. BALUNHQ
Reference: BALUNHQ
Brand: Setik
EAN: 8056450374910
FIND INSTALLER
Quantity discount:
from 10
to ∞
:
3,79 €
(-10%)
from 5
to 9
:
4,00 €
(-5%)
from 1
to 4
:
4,21 €
https://www.setik.biz/en/video-accessories/3619-setik-balunhq-pair-of-video-balun-hq-passive-cvi-tvi-ahd-4k-8mp-setik.html
€4.21
€8.42 -50%
taxes included
discover the available quantity
BALUNHQ: RELIABILITY UP TO 8 MEGAPIXEL 4K ULTRA-HD! We have various excellent quality video baluns in our catalog. However, BALUNHQ are the only ones that can reach high resolutions ( up to 8 Megapixel 4K ULTRA-HD ), at a truly promotional price ! Why not choose them? Take advantage of the opportunity! |
HIGH QUALITY VIDEO BALUN UP TO 8 MEGAPIXEL 4K ULTRA-HD RESOLUTION!
HIGH QUALITY BALUNS IN SUPER PROMOTION! WHILE STOCKS LAST!
Pair of Single Channel Passive Video Baluns - SetikReceive / Transmit video signal over UTP CAT5 / 5E / 6 cable - Resolution up to 8Megapixel 4K!!
Support HDCVI, HDTVI and AHD - Push terminal for easy installation
Connection to two or more baluns - Product excluded from warranty
Product code | Maximum Resolution | Distance | Connection type | Signal type | Other |
5XBALUNHD | 4K | 450mt | 2 wires | Video | 5 Pieces |
BALUNOHQ | 8MP | 450mt | 2 wires | Video | Pluggable |
BALUNRJ* | 5MP |
200m | UTP | Video+Audio+Power | |
BALUNACTHD | 5MP | 800m | 2 wires | Video | Active |
BALUNRJHQ* | 5MP | 300m | UTP | video+audio+power |
*it is capable of carrying audio and power separately
Product details
- Video Balun Pair - Setik
- Type: Passive - Single Channel
- 4K ULTRA-HD 8Megapixel resolution up to 100m!
- Receive and transmit video signal on UTP CAT 5 / 5E / 6 cable
- Connectors present: Video (BNC) Male
- Easy installation thanks to the Push Terminal on the top
- Lightning protection
- Possibility to connect two or more baluns together
- 60 dB immunity to cross-talk and interference
- Impedance: BNC Male ( 75ohms ) - UTP Cable ( 100 ohms )
- Small size: 36.5mmx17.5mmx17.3mm
- Product excluded from warranty
Technical data sheet
| Model | BALUNOHQ |
| Properties | |
| Transmission Signal | 1 Channel |
| Max Transmission Resolution | 4K ULTRA-HD 8Megapixel |
| Category Type | UTP CAT5 / 5E / 6 |
| Video Transmission Properties and port | |
| Coaxial Video Connector | BNC-M |
| Twisted Pair Video Connector | Push Terminal |
| Compatible Format | HDCVI / HDTVI / AHD |
| Anti-Interference | >60db |
| Protection | |
| ESD | 1a contact discharge electricity level 3 1b air discharge electricity level For: IEC-61000-4-2 |
| Coaxial Cable Connector | 2KV (common-code) For: IEC-1000-4-5 |
| UTP Cable Connector | 2KV (different-code), 4KV (common-code), For: IEC1000-4-5 |
| Impedance | |
| BNC Male | 75 ohms |
| UTP Cable | 100 ohms |
| Physical Properties | |
| Dimensions (LxWxH) | 36.5mmx17.5mmx17.3mm) |
| Shell | ABS |
| Color | Black |
| NW | 22.6G |
| Stability | |
| MTBF | >10000H |
| Environmental | |
| Operating Temperature | -10-55°C |
| Storage Temperature | -20-70°C |
| Humidity | 0-95% (non-condensing) |
Further details
 | Components which by their nature or due to normal wear and tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
 | New BalunHQ in brief: - Unique and smart design. By connecting the channels laterally you can join the baluns saving space - Push lock on top of case for easier installation saving time and money. - 3 Signals in one: HD-CVI, TVI and AHD - Increased resolution: up to 8Megapixel 4K ULTRA-HD |
