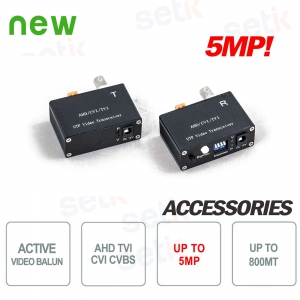

Pair of Video Balun BALUNACTHD Setik Active balun (Transmitter + Receiver) 1 channel, support HD-CVI, HD-TVI, AHD, ANALOG technology, resolution up to 5Megapixel and transmission up to 800 meters away. Integrated anti-interference filter, protection from lightning and overloads. Easy to use, small size.
ACTIVE VIDEO BALUN PAIR - TRANSMITTER+RECEIVER - UP TO 5MEGAPIXEL! - SETIK
Transmitter+Receiver - Support AHD, TVI,CVI, CVBS(analog) - Up to 5Megapixel!
Transmission distance up to 800 meters - Protection against lightning, overload and interference
Small size, easy to use - Need DC12V / 0.5-1A power supply
Product code | Maximum Resolution | Distance | Connection type | Signal type | Other |
5XBALUNHD | 4K | 450mt | 2 wires | Video | 5 Pieces |
BALUNOHQ | 8MP | 450mt | 2 wires | Video | Pluggable |
BALUNRJ* | 5MP | 200m | UTP | Video+Audio+Power | |
BALUNACTHD | 5MP | 800m | 2 wires | Video | Active |
BALUNRJHQ* | 5MP | 300m | UTP | video+audio+power |
*it is capable of carrying audio and power separately
Product details
- Active Video Balun Pair - Setik
- Video balun 1 channel
- Transmitter + Receiver
- Resolution up to 5Megapixels!
- Support AHD,TVI,CVI,CVBS (analog) technologies
- Transmission distance:
- - 760P/960P up to 800 Meters
- - 1080P/3MP/4MP/5MP up to 500 Meters
- Protection against overloads, interference and lightning
- 60dB cross talk and noise immunity
- Small size and ease of use
- Requires DC12V/0.5-1A power supply
- Product excluded from warranty
Technical data sheet
Model | BALUNACTHD |
Support | 4-in-1 AHD/TVI/CVI/Analog |
Transmission distance | 760P/960P: 800 meters 1080P/3MP/4MP/5MP: 500 meters |
Connector | Female BNC and terminal block |
Power adapter | DC12V/0.5-1A |
Housing | Aluminium alloy |
CMRR | 60dB |
Impedance | BNC: 75 ohms, Terminal 100 ohms |
Working Temperature | -10°C to +70°C |
Storage Temperature | -30°C to +70°C |
Humidity | 0 to 95% |
Category type | Cat5e/6 suggested |
Material | Aluminium alloy |
Further details
Components which by their nature or due to normal wear and tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
