800M video amplifier for AHD - HDCVI - HDTVI signal

800M video amplifier for AHD - HDCVI - HDTVI signal
-40%

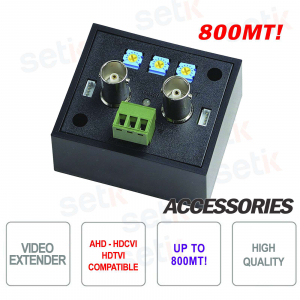

Extender Video Amplifier AMPVIDEO Setik, useful for extending the AHD - HDCVI - HDTVI video signal up to 800MT over coaxial cable. 75 Ohms BNC input, 75 Ohms BNC output, including adapter and jumper .

Reference: AMPVIDEO

Brand: Setik

EAN: 8057457614931

Manufacturer Object ( [id] => 7 [name] => Setik [description] =>

Always committed to the world of security, in addition to products from the best brands, we also offer our own production line, where convenience and quality come together to protect you. Imported products but with quality, warranty and updates managed directly by us. Take a look at our products: cameras, ip recorders, complete security kits, home alarm systems, spy products, cables, accessories and much more. Choose Setik for your security!

[short_description] =>

Setik was founded in 2012.
Initially 10 products in the catalogue, today almost 4,000.

[id_address] => [date_add] => 2012-03-20 12:17:52 [date_upd] => 2022-04-19 17:28:56 [link_rewrite] => setik [meta_title] => Made by Setik [meta_keywords] => setik, cctv, Made by Setik [meta_description] => Setik CCTV production [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

VIDEO SIGNAL AMPLIFIER EXTENDER AHD - HDCVI - HDTVI - UP TO 800 METERS!

Prodotto marca Setik Video Extender - Setik
Allows you to extend the AHD / HDCVI / HDTVI video signal over coaxial cable up to 800MT
75Ohms BNC input and output - Including adapter and jumper - Quality product

Product details

Extender amplificatore video AHD - HDCVI - HDTVI Setik
  • Extender Video amplifier - Setik
  • It allows to extend the AHD - HDCVI- HDTVI video signal up to 800MT!
  • HD-CVI 1080P / 720P up to 800 meters
  • HD-TVI 1080P / 720P up to 600 meters
  • AHD 1080P / 720P up to 800 meters
  • 75 Ohms BNC video input
  • 75 Ohms BNC video output
  • High and medium frequency
  • Built-in sharpness and brightness changes
  • Allows you to use a power adapter for multiple amplifiers, requires a jumper to expand the power (maximum 5 units per power adapter)
  • Use high quality RG59 / RG6U (75 Ohms) coaxial cable
  • Minimum distance of at least 150 meters to avoid excessive signal amplification
  • 12V DC / 500mA power supply
  • Consumption from 85 mA
  • Operating temperature from 0 ° C ~ + 55 ° C
  • Dimensions: 57.8 x 49.2 x 41.7 mm
  • Weight: 70 g
  • Includes adapter and jumper

Data sheet

Item AMPVIDEO
Video Format

HD-CVI / HD-TVI / AHD

Video input BNC 75 Ohms
Video output BNC 75 Ohms
Distance

HD-CVI: 800 mt @ 1080P

HD-TVI: 600 mt @ 1080P

AHD: 800m @ 1080P

Power supply 12V DC / 500mA
Power consumption 85 mA
Working Temperature 0 ° C ~ + 55 ° C
Storage Temperature -20 ° C ~ + 85 ° C
Humidity 0 to 95% (without condensation)
Dimension 57.8 x 49.2 x 41.7 mm
Dimensions 70 g
