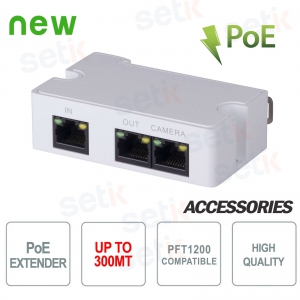

POE EXTENDER POE AND DATA POWER EXTENDER - CASCADE FUNCTIONALITY - DAHUA

Prodotto Dahua PoE Extender Dahua
Coverage up to 300mt - Increases the transmission distance of the poe and data power supply
3 RJ45 10 / 100M ports (1 poe in / 1 poe tlc ip out / 1 poe tlc / cascade out)
Requires PFT1200 - C onnectable to a second PFT1300

Product details

Extender PoE Estensore Dahua PFT1300
  • Dahua Extender PoE Extender
  • Useful for increasing the transmission distance of the poe + data power supply
  • Cascade mode support
  • Connection of up to 2 PFT1300 extenders + 1x PFT1200 injector
  • 3 RJ45 10 / 100M ports (1 poe in / 1 poe tlc ip out / 1 poe tlc / cascade out)
  • Requires PFT1200
  • Single extender coverage: 100 meters
  • Coverage can be extended up to 300 meters by connecting it to a second PFT1300
  • Installation: internal mounting via junction box or via DIN rail

Schema connessioni PFT1300

Data sheet

Model PFT1300
System
Ethernet Port

1 * 10/100 Base-T PoE power receiving port

1 * 10/100 Base-T PoE power supply port, supply power for the next extender

1 * 10/100 Base-T PoE power supply port, supply power for IPC

Transmission distance

Cooperate with DH-PFT1200, able to cascade level two extender, connect to 3 IPC (level one extender connects to 1 IPC, the OUT port of level two extender and CAMERA port connect to 1 IPC respectively, IPC power consumption <= 8W), transmission distance is 300m

Power Consumption

<= 3W

Application Humidity

10% ~ 90%

Working Temperature

-30 ° C ~ 65 ° C

Weight

57g

Dimension (W × D × H)

79mm × 52mm × 23mm
