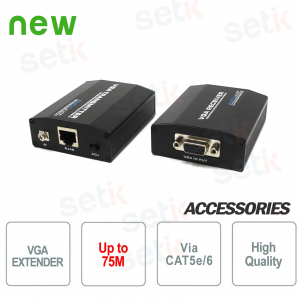

Extender VGA LAN Converter on CAT5E / CAT6 75M Dahua cable

Extender VGA LAN Converter on CAT5E / CAT6 75M Dahua cable
-56%

Dahua PFM710 VGA LAN Extender Converter ideal for bringing VGA video signal up to 75M via Cat5e / Cat6 cable. Transmitter + Receiver, clean transmissions without delay or interference, lightning protection, no installation driver needed, no additional power supply needed. PFM710 Dahua



Reference: PFM710

Brand: Dahua

EAN: 8057457611893

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

EXTENDER VGA ON CABLE CAT. 5E / 6 - UP TO 75 METERS - TRANSMITTER + RECEIVER - DAHUA

Prodotto Dahua It allows to bring the VGA signal up to 75MT on CAT5e or 6 Ethernet cable, essential if the positioning of the monitor is required away from the DVR. This product guarantees a high signal quality at extremely high distances.

Product details

Extender VGA fino a 75mt su cavo cat5e / cat6 dahua
  • VGA Extender - Dahua
  • Consisting of 2 Pieces (Transmitter + Receiver)
  • Allows you to bring the VGA video signal up to 75 meters on a CAT cable. 5E / 6
  • Power supply: no need for additional power supply
  • Video transmission in real time without compression, without delays, strong anti-interference
  • Protection against lightning, anti-static and anti-interference
  • No need to install drivers and set parameters, easy to use and convenient to install
  • Small size

Data sheet

1b air discharge electricity level 3For: IEC61000-4-2 1995 (GB / T 17626.5)± 8KV (air discharge)For: IEC61000-4-2 1995 (GB / T 17626.5)For: IEC61000-4-5 1995 (GB / T 17626.5)Receiver: 110g (0.24lb)
Model PFM710
General
Transmission Signal 1channel
Transmission Distance

Max. 75m (246.06ft)

Video Signal Input Interface Female 15, VGA port
Video Input Port Female 15, VGA port
Twisted-pair Video Transmission Port RJ45 port
Video Signal Processing Bandwidth <120MHz (-3db)
Synchronous Signal Bandwidth 1k-200kHz
Transmitter 2 modes
Receiver 3 modes
ESD

1a contact discharge electricity level 3

Output Voltage 0.5 ~ 1.5Vp-p
ESD

± 4KV (contact discharge)

Anti-thunder

1KV

MTBF

> 5000h

Dimension (L * W * H)

Transmitter: 85mmx64mmx28mm (3.35 "x2.52" x1.1 ") (port length included) Receiver: 85mmx64mmx28mm (3.35" x2.52 "x1.1")

Shell

Aluminum

Color

Black

NW

Transmitter: 111g (0.24lb)

Working Temperature

0 ? ~ + 55 ? (+ 32 ? ~ + 131 ?)

Storage Temperature

-20 ? ~ + 80 ? (-4 ? ~ + 176 ?)

Humidity

0 ~ 95% (non-condensing)

Certification

CE (EN55022, EN55024) FCC (47 CFR PART 15 & ANSI C63.4)

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
