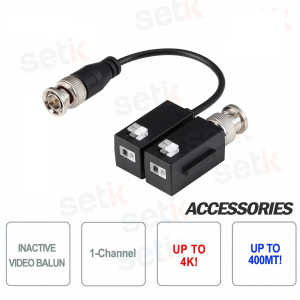

Pair of Video Balun Dahua PFM800B-4K . Passive single-channel transceivers, HD-CVI / CVBS / TVI / AHD signal transmission support. Male BNC video connection, real-time transmissions up to: 200mt at 4K / 250mt at 1080p / 400mt at 720p with UTP CAT5E / 6 cable. Dahua PFM800B-4K
FIND INSTALLER
€6.04
€13.42 -55%
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
PAIR OF PASSIVE DAHUA 1CH VIDEO BALUNS - UP TO 4K - HD CVI TVI AHD CVBS
Passive Video Balun Couple - Dahua HDCVI / CVBS / TVI AHD video signal - resolution up to 4K!
Real-time transmissions on UTP CAT5E / 6 cable - Male BNC video connection
HD-CVI transmission distance: 200mt at 4K / 250mt at 1080p / 400mt at 720p
Product details
- Pair of Video Balun Dahua
- Passive single-channel transceivers (no need for power)
- Resolution up to 4K!
- Supports HDCVI / AHD / TVI / CVBS signals
- Real-time transmission over UTP CAT5E / 6 cable
- Transmission distance HD-CVI 200mt at 4K / 250mt at 1080p / 400mt at 720p
- BCN Male video connection
- Protected against interference and lightning
- Size: TX : 173.8mmx19.5mmx21mm (6.84 "x0.77" x0.83 ") / RX : 49.1mm × 19.5mm × 21mm (1.93" x0.77 "x0.83")
- Product excluded from guarantee
Data sheet
| Model | PFM800B-4K | ||
| Properties | |||
| Transmission Signal | 1-CH | ||
| Network Cable Type | UTP CAT5E / 6 (material: CU) | ||
| Transmission Distance |
HDCVI 1080P: max. 250m (820.21ft) 4M / 6M / 4K: max. 200m (656.17ft)
TVI 720P: max. 400m (1312.34ft) 1080P: max. 250m (820.21ft) 4M / 5M: max.200m (656.17ft)
AHD 720P: max. 400m (1312.34ft) 1080P: max. 250m (820.21ft) 4M / 5M: max.200m (656.17ft) |
||
| Video Transmission Properties And Port | |||
| Coaxial Video Connector | BNC-M | ||
| Connection Way | RJ45 | ||
| Compatible Format | HDCVI / TVI / AHD / CVBS | ||
| Resolution | 720P / 1080P / 4MP / 5MP / 4K | ||
| Protection | |||
| ESD |
1st contact discharge electricity level 3 1b air discharge electricity level 3 For: IEC61000-4-2
|
||
| UTP Cable Connector |
2KV (different-mode), 4KV (common-mode) For: IEC61000-4-5 |
||
| Impedance | |||
| BNC Male Impedance | 75 ohms | ||
| UTP Cable Impedance | 100 ohms | ||
| Physical Properties | |||
| Weight | 34g (0.07lb) (1 pair) | ||
| Dimension (L * W * H) |
TX: 173.8mmx19.5mmx21mm (6.84 "x0.77" x0.83 ") RX: 49.1mm × 19.5mm × 21mm (1.93 "x0.77" x0.83 ") |
||
| Shell | ABS | ||
| Color | Black | ||
| Environmental | |||
| Operating Temperature | -30 ℃ ~ + 70 ℃ (-22 ℉ ~ + 158 ℉) | ||
| Storage Temperature | <95% RH | ||
| Humidity | -40 ℃ ~ + 80 ℃ (-40 ℉ ~ + 176 ℉) | ||
Further details
 |
The components that by their nature or for normal wear, wear or decay, need periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
