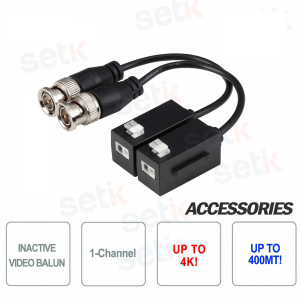

Pair of Dahua PFM800-4K Video Baluns, passive single-channel transceivers, similar to the BALUNHQ Setik or the HYU-635 . Supports HD-CVI/CVBS/TVI/AHD signal transmissions. Male BNC video connection, real-time transmissions up to: 200m at 4K / 250m at 1080p / 400m at 720p with UTP CAT5E/6 cable. Dahua PFM800-4K
FIND INSTALLER
€6.44
€14.64 -56%
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
|
HAVE YOU LOOKED AT THE SETIK ALTERNATIVE? Same features at a... really advantageous price!
|
PAIR OF PASSIVE 1CH DAHUA VIDEO BALUNS - UP TO 4K - HD CVI TVI AHD CVBS
HDCVI / CVBS / TVI AHD video signal - resolution up to 4K!
Real-time transmissions on UTP CAT5E/6 cable - BNC Male Video Connection
HD-CVI Transmission Distance: 200mt at 4K / 250mt at 1080p / 400mt at 720p
Product details
- Dahua Video Balun Pair
- Passive single-channel transceivers (no power supply required)
- Resolution up to 4K!
- Supports HDCVI/AHD/TVI/CVBS signals
- Real-time transmissions over UTP CAT5E/6 cable
- HD-CVI transmission distance 200mt at 4K / 250mt at 1080p / 400mt at 720p
- BCN Male Video Attack
- Protected against interference and lightning
- Size: 173.8mmx19.5mmx21mm (6.84”x0.77“x0.83”)
- Product excluded from warranty
Technical data sheet
| Model | PFM800-4K | ||
| Properties | |||
| Transmission Signal | 1-CH | ||
| Network Cable Type | UTP CAT5E/6 (material: CU) | ||
| Transmission Distance |
HDCVI 1080P : max.250m (820.21ft) 4M/6M/4K : max.200m (656.17ft) TVI 720P : max.400m (1312.34ft) 1080P : max.250m (820.21ft) 4M/5M : max.200m (656.17ft) AHD 720P : max.400m (1312.34ft) 1080P : max.250m (820.21ft) 4M/5M : max.200m (656.17ft) |
||
| Video Transmission Properties And Port | |||
| Coaxial Video Connector | BNC-M | ||
| Connection Way | RJ45 | ||
| Compatible Format | HDCVI/TVI/AHD/CVBS | ||
| Resolution | 720P/1080P/4MP/5MP/4K | ||
| Protection | |||
| ESD |
1a contact discharge electricity level 3 1b air discharge electricity level 3 For: IEC61000-4-2 |
||
| UTP Cable Connector |
2KV(different-mode), 4KV(common-mode) For: IEC61000-4-5 |
||
| Impedance | |||
| BNC Male Impedance | 75 ohms | ||
| UTP Cable Impedance | 100 ohms | ||
| Physical Properties | |||
| Weight | 40g (0.09lb) (1 pair) | ||
| Dimensions(L*W*H) | 173.8mmx19.5mmx21mm (6.84”x0.77“x0.83”) | ||
| Shell | ABS | ||
| Color | Black | ||
| Environmental | |||
| Operating Temperature | -30℃~+70℃(-22℉~+158℉) | ||
| Storage Temperature | <95%RH | ||
| Humidity | -40℃~+80℃(-40℉~+176℉) | ||
Further details
 |
Components which by their nature or due to normal wear and tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
