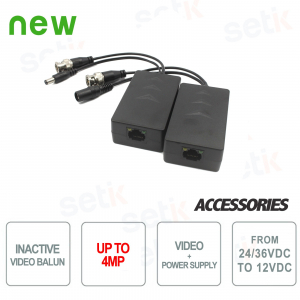

HDCVI 4MP Passive Video Balun Pair with Power - Dahua

HDCVI 4MP Passive Video Balun Pair with Power - Dahua
-56%

Pair of HD-CVI Dahua Video Baluns . Passive single-channel transceivers, support for HD-CVI signal transmissions up to 4MP ( 200mt) . Convert the input signal from DC 24-36V to DC 12V, 8W (Maximum). Provide Video + Power . Protected against interference and lightning. Male BNC video connection Dahua PFM801-4MP



Reference: PFM801-4MP

Brand: Dahua

EAN: 6939554930942

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

PAIR OF BALUN HD-CVI VIDEO DAHUA PASSIVE + POWER SUPPLY - UP TO 4 MEGAPIXEL!

Prodotto marca Setik Passive HD-CVI Video Balun Couple - Dahua
Supports HDCVI signal up to 4 Megapixels (200mt) - Clean transmissions, without disturbance
Power supply - Converts signal from DC 24-36V to 12V , 8W (maximum)
Protection against lightning / interference - Product excluded from warranty

Product details

  • Pair of Passive Video Baluns - Dahua
  • Support for HDCVI signal transmission up to 4 Megapixels (Max 200mt)
  • Compatible with HDCVI systems
  • Support TVI / AHD / CVBS signals
  • Transmissions without disturbance
  • Convert from 24 / 36V DC to 12V DC, 8W (Max)
  • They carry video signal + power supply
  • Protected against interference and lightning
  • Product excluded from warranty
Coppia di video balun professionali. HDCVI Video+ Alimentazione

Data sheet

Model PFM801-4MP
System
Transmission Signal 1-channel
Transmission Distance

HDCVI

720P: max. 400m (1312.34ft)

1080P: max. 250m (820.21ft)

4MP: max. 200m (656.17ft)

Power Supply Input Voltage Distance Output Power DC24 0-100m
100-200M
200-300m

DC12V 8W
DC12V 6W

DC12V 3W

DC36 0-300M DC12V 8W Category Type UTP CAT5E / 6 Coaxial Video Connector BNC-M Connection Way RJ45 Compatible Format HDCVI / TVI / AHD / CVBS Resolution 720P / 1080P / 4MP Anti-interference > 60db ESD

1a contact discharge electricity level 3

1b air discharge electricity level 3

For: IEC61000-4-2

Coaxial Cable connector

2KV (common-mode)

For: IEC61000-4-5

UTP Cable connector

2KV (different-mode), 4KV (common-mode)

For: IEC61000-4-5

BNC Male

75 ohms

UTP Cable

100 ohms

Dimension (L * W * H)

72.6mmx42.5mmx24.5mm (2.86 "x1.67" x0.96 ")

Shell

ABS

Color

Black

NW

66.4g (0.15lb) /57.4g (0.13lb)

MTBF

> 10000H

Operation Temperature

-10 ? ~ + 55 ? (+ 14 ? ~ + 131 ?)

Storage Temperature

-20 ? ~ + 70 ? (-4 ? ~ + 158 ?)

Humidity

0 ~ 95% (non-condensing)

More details

Prodotto escluso da garanzia The components which by their nature or normal wear, wear or deterioration require periodic maintenance or replacement (eg: power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty.
